AXOR MyEdition

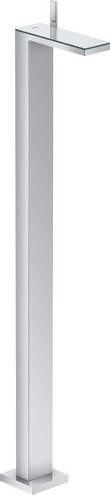

Single lever basin mixer floor-standing with push-open waste set

FinishChrome/Mirror Glass

Art. no. 47040000

Preview at home 360° view

Product data sheet (PDF)

Find a specialist dealer

Special product features

Innovative technologies

EcoSmart

Saving resources with pleasure

Our standard taps are equipped with our EcoSmart technology to save water and energy. While enjoying the full water experience, it consumes max. 5 l/min thanks to a flow limiter. Good for a conscious consumption of water and energy.

QuickClean

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

Auszeichnungen

Design Awards

Auszeichnungen

Red Dot product design award 2021

One of the most prestigious awards in the world. Awarded for top quality, innovative form and function since 1955 (North Rhine-Westphalia Design Centre).

Trust in highest quality

5 years warranty

Article Details

consists of: single lever basin mixer, plate, waste set

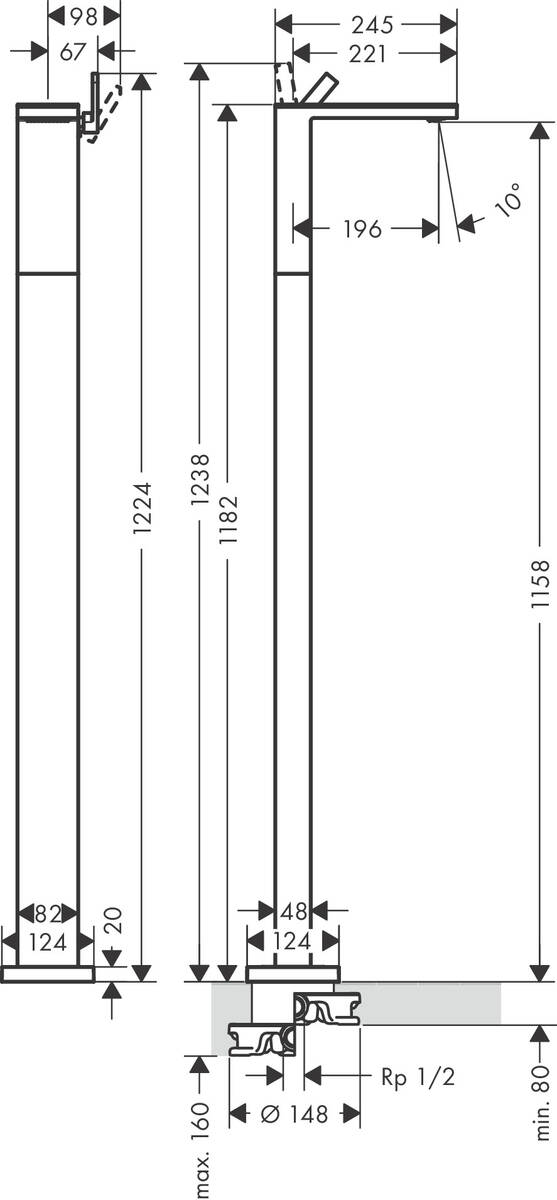

projection: 196 mm
spout height: 1158 mm
handle variant: lever handle
plate of glass made of safety glass
spray type: PowderRain
maximum flow rate at 3 bar: 5 l/min
ceramic cartridge
temperature limitation adjustable
with isolated water conduction - without contact with nickel and lead
suitable for continuous flow water heaters
push-open waste set G 1¼
connection type: basic set
connection dimension: DN15
EU taxonomy: max. 6 l/min - Substantial Contribution (SC) possible

Downloads

Product data sheet (PDF)

Planning data

BIM Data

Technical Drawings

Manuals

Required equipment

Basic set for mixers floor-standing

Scope of delivery

single lever basin mixer
assembly instruction

Installation Information

Note

Please observe the safety and installation instructions for your product. You can find them in the installation instructions.

Find plumber Assembly instruction (Mixer) PDF, 8.3 MB

AXOR MyEdition Single lever basin mixer floor-standing with push-open waste set

Find the right spare part

{{part.text}} Art. no. {{part.articleNumber}}

Optionales Zubehör

Sealing foil for basic set bath mixer floor-standing
