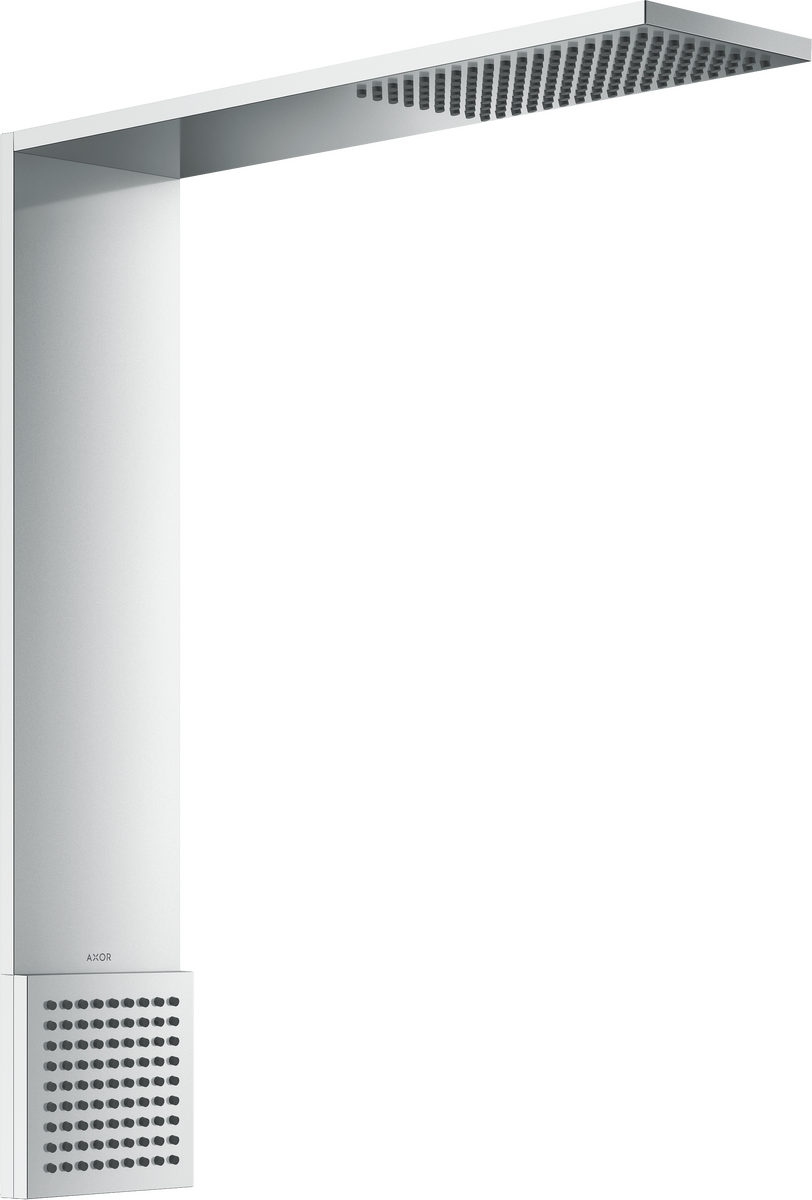

AXOR ShowerComposition
Shower module 110/220 1jet with shoulder shower

Shower module 110/220 1jet with shoulder shower
Shower module 110/220 1jet with shoulder shower
Change variant
Select a variant
Shower module 110/220 1jet with shoulder shower
Shower module 250/250 2jet with shoulder shower
more colours availableTo the special finishes
FinishChrome

Art. no. 12593000

Remember product Product noted Product saved for 30 daysTo the notepad The product could not be saved.
Please try again.
Compare products Product added Product saved for 30 daysTo the product comparison The product could not be saved.
Please try again.
Preview at home 360° view
Product data sheet (PDF)
Find a specialist dealer
Special product features

Innovative technologies

Less limescale, more joy
QuickClean
QuickClean

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

Auszeichnungen

Design Awards

iF gold award 2021
Auszeichnungen

iF gold award 2021

Every year, a highly distinguished jury of experts presents this award to the best product designs from all over the world. Awarded by: International Forum Design.

Trust in highest quality

5 years warranty

Article Details

  • consists of: overhead shower, shoulder shower
  • shower head size: 110 x 220 mm
  • shower arm length: 324 mm
  • projection: 424 mm
  • spray type overhead shower: PowderRain
  • flow rate PowderRain spray at 3 bar: 12 l/min
  • material spray disc overhead shower: metal
  • spraytype shoulder shower: PowderRain
  • flow rate of shoulder shower at 3 bar: 6,3 l/min
  • maximum flow rate at 3 bar: 17 l/min
  • minimum flow pressure: 2 bar
  • max. operating pressure: 6 bar
  • QuickClean: Limescale deposits can simply be rubbed off with your finger
  • simultaneous use of head and shoulder shower possible
  • shower module needs to be operated with two function shower control
  • connection type: basic set
  • angle of shoulder shower adjustable (2 positions)

REQUIRED PARTS

Basic set for overhead shower with shower arm
AXOR ShowerSolutions Basic set for overhead shower with shower arm

Scope of delivery

  • shower module
  • mounting material
  • assembly instruction

Installation Information

Note

Please observe the safety and installation instructions for your product. You can find them in the installation instructions.

Find plumber Assembly instruction (Overhead Shower)  PDF, 30 MB

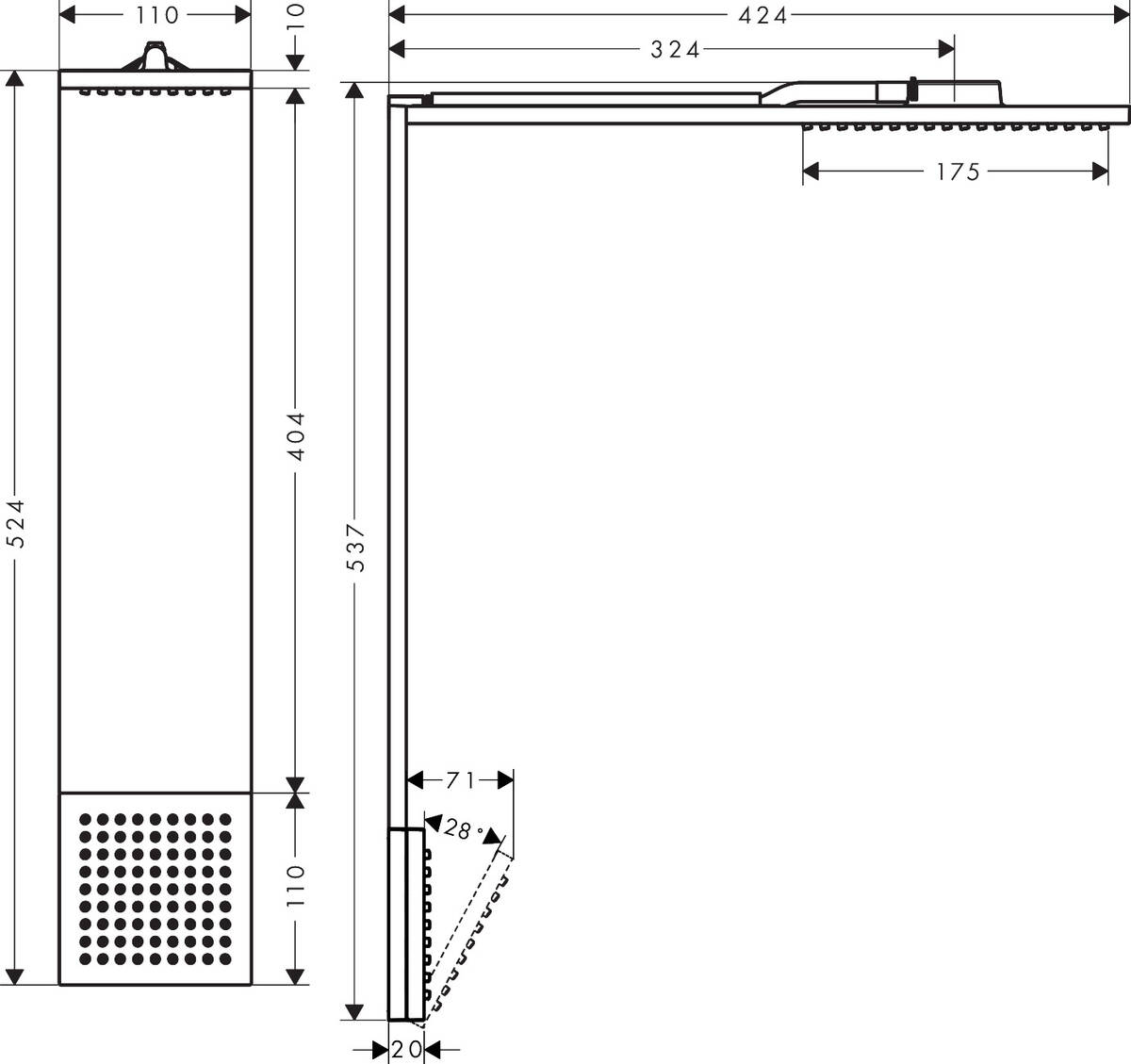

Measure Drawing

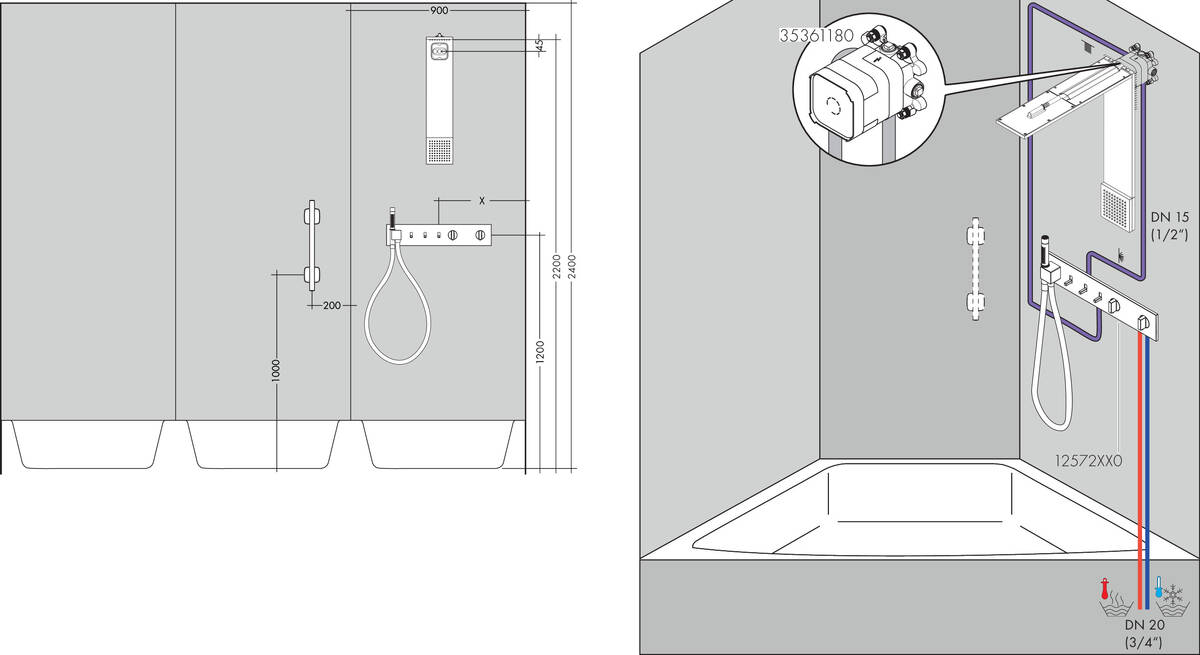

Installation Sample
AXOR ShowerComposition Shower module 110/220 1jet with shoulder shower

Find the right spare part

+
_
{{part.number}}
{{part.text}} Art. no.  {{part.articleNumber}}
