AXOR ShowerComposition

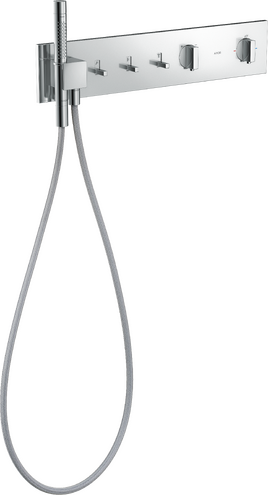

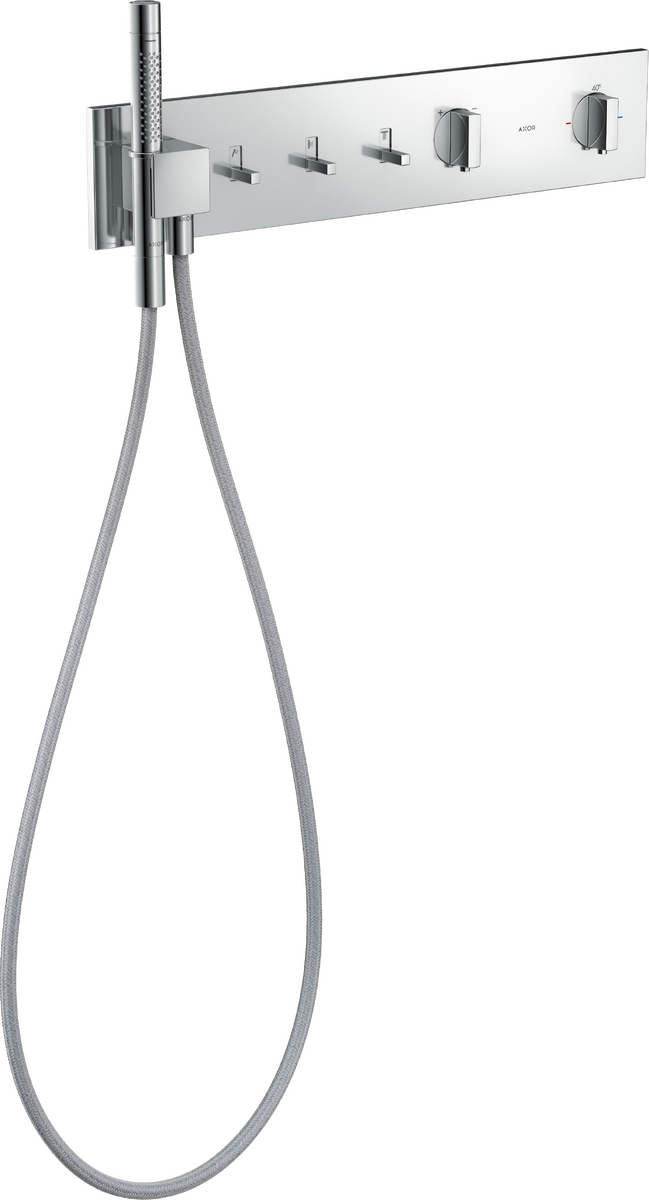

Thermostatic module 540/110 for concealed installation for 3 functions

FinishChrome

Art. no. 12572000

Preview at home 360° view

Product data sheet (PDF)

Find a specialist dealer

Special product features

Innovative technologies

QuickClean

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

Thermostat

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

Water flow control

For mindful use of water

The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.

SafetyStop

Safety lock at over 40 °C

A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.

Auszeichnungen

Design Awards

Auszeichnungen

iF product design award 2023

Everything from cars to toothbrushes: products that receive this award rank among the best-designed products in the world. Globally recognised seal of quality, awarded by the International Forum Design since 1953.

Trust in highest quality

5 years warranty

Article Details

consists of: thermostatic module, shower holder, baton hand shower, textile shower hose
3 functions
simultaneous use of several outlets
sliding movement of handle for switching water on and off, temperature and water flow control
depending on volume flow and installation situation approx. 50% flow rate reduction and integrated shut off function
thermostat cartridge, Start/stop valve to operate the functions
spray type hand shower: Rain, MonoRain
flow rate of hand shower at 3 bar: 11,4 l/min
maximum flow rate at 1 bar: 16,1 l/min
maximum flow rate at 3 bar: 32,7 l/min
flow rate per function: 26 l/min
flow rate by simultaneous use of all outlets: 32,7 l/min
min. operating pressure: 1 bar
max. operating pressure: 10 bar
Safety stop at 40 °C
temperature limitation adjustable
non-return valve
connection type: basic set

Downloads

Product data sheet (PDF)

Planning data

BIM Data

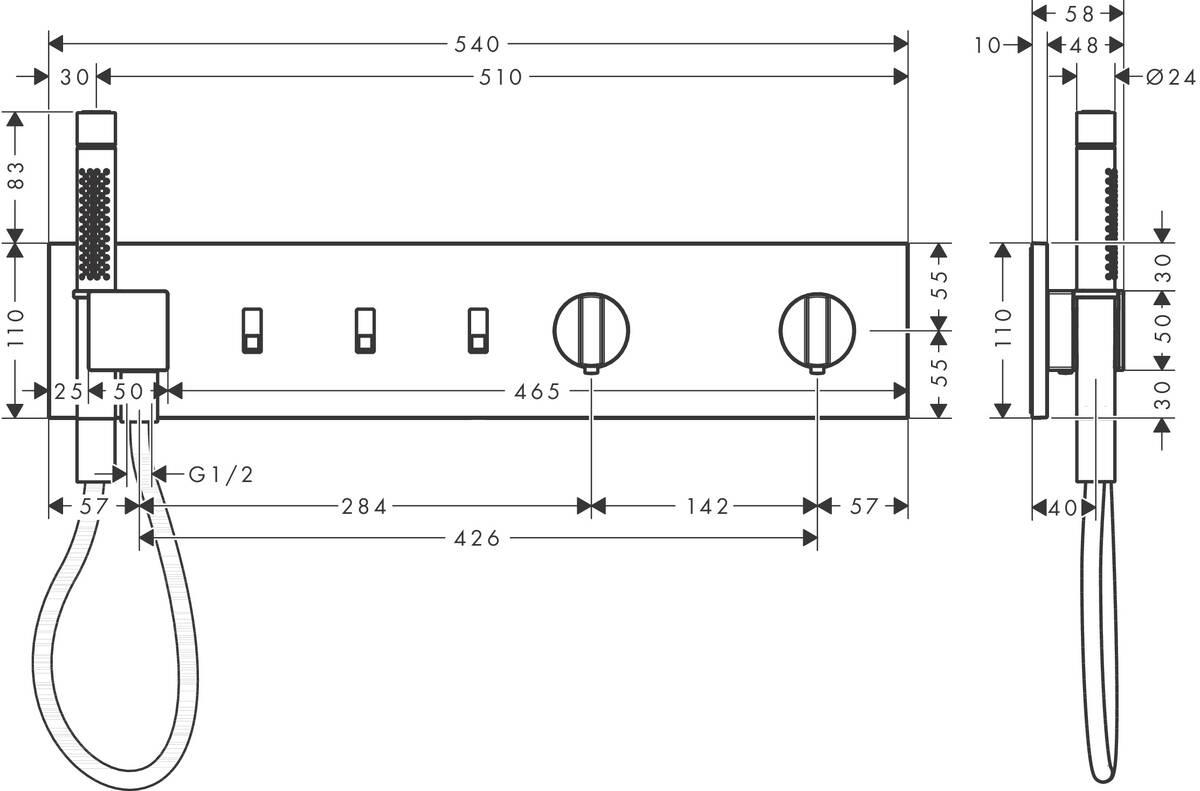

Technical Drawings

Manuals

Required equipment

Basic set for thermostatic module Select for 3 functions

Scope of delivery

thermostatic module
function block
mounting material
assembly instruction

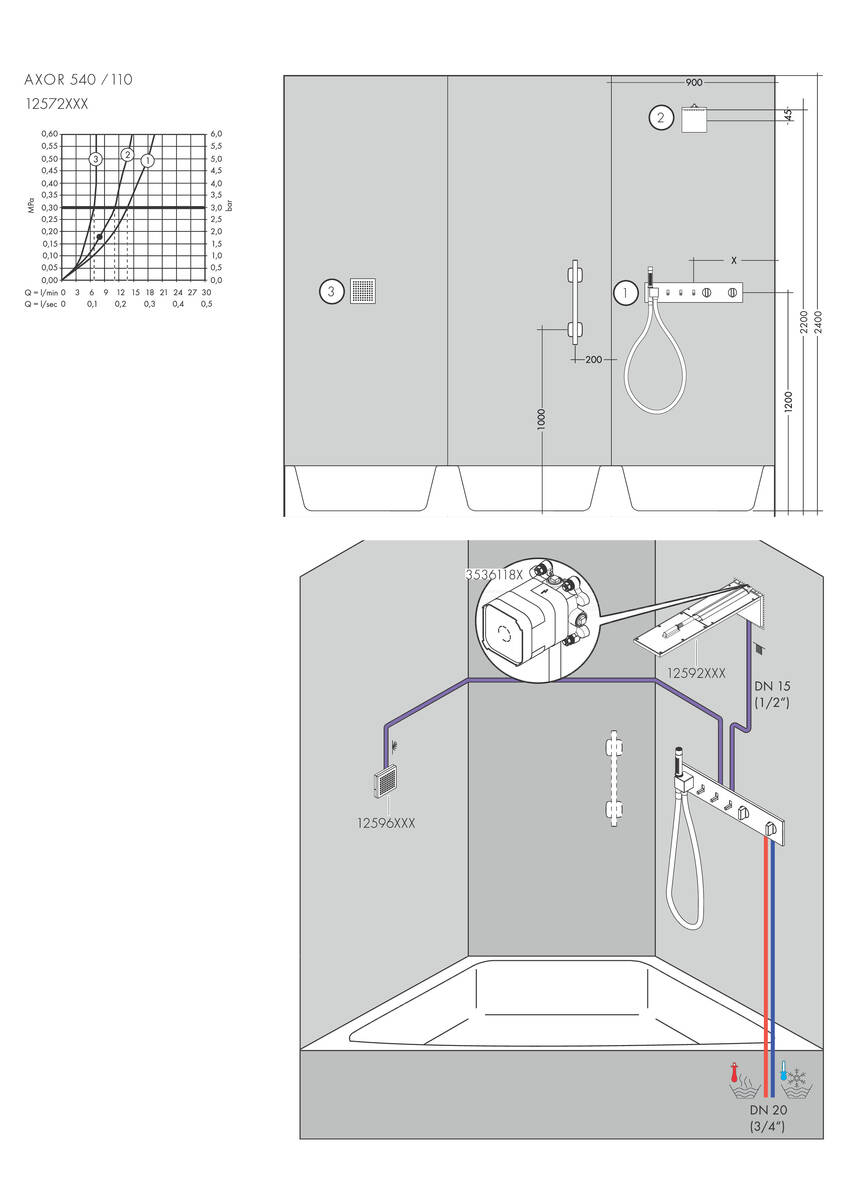

Installation Information

Find plumber Assembly instruction PDF, 30 MB

AXOR ShowerComposition Thermostatic module 540/110 for concealed installation for 3 functions
