AXOR Drain

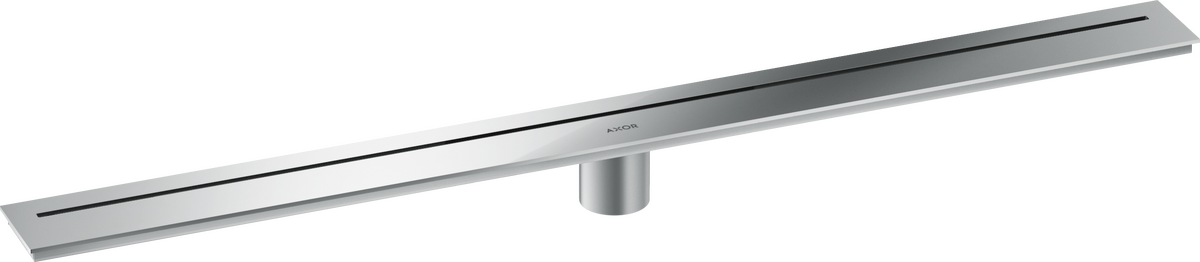

Floor Installation 900mm (35 7/16")

Floor Installation 900mm (35 7/16")
Floor Installation 900mm (35 7/16")
NEW
Change variant
Select a Variant
Floor Installation 900mm (35 7/16")
From USD 893.00
Floor Installation 700mm (27 9/16")
From USD 788.00
Floor Installation 800mm (31 1/2")
From USD 840.00
Floor Installation 1000mm (39 3/8")
From USD 945.00
Floor Installation 1200mm (47 1/4")
From USD 998.00
more colours availableTo the special finishes
Product FinishChrome

Model No. 42522001

Remember product Product noted Product saved for 30 daysSee Wish List The product could not be saved. Please try again.
Compare Products Product added Product saved for 30 daysTo the product comparison The product could not be saved.
Please try again.
Preview at home 360° view
Product Data Sheet (PDF)
USD893.00 List price (U.S. dollars) is shown for comparison only. The actual retail price may be different from the price shown.
Find a local dealer
Special product features

Innovative technologies

For a flush integration into the floor
Adjustable frame height
Adjustable frame height

For a flush integration into the floor

The shower drain is installed flush with the tiles. The level of the grate can be adjusted to different heights by using the height adjustment frame (Tile thickness 7-18 mm) even after the screed has been poured.

Easy to clean surface
QuickClean
QuickClean

Easy to clean surface

At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.

Auszeichnungen

Design Awards

iF product design award 2023
Auszeichnungen

iF product design award 2023

Products from A to Z: Those which receive this award are among the best designed in the world. This internationally recognized seal of approval has been awarded since 1953 by the International Forum Design.

Trust in highest quality

5 years warranty

Product Alternatives

Similar Products

Floor Installation 700mm (27 9/16")
AXOR Drain Floor Installation 700mm (27 9/16")
USD788.00 List price (U.S. dollars) is shown for comparison only. The actual retail price may be different from the price shown.
Floor Installation 800mm (31 1/2")
AXOR Drain Floor Installation 800mm (31 1/2")
USD840.00 List price (U.S. dollars) is shown for comparison only. The actual retail price may be different from the price shown.
Floor Installation 1000mm (39 3/8")
AXOR Drain Floor Installation 1000mm (39 3/8")
USD945.00 List price (U.S. dollars) is shown for comparison only. The actual retail price may be different from the price shown.
Floor Installation 1200mm (47 1/4")
AXOR Drain Floor Installation 1200mm (47 1/4")
USD998.00 List price (U.S. dollars) is shown for comparison only. The actual retail price may be different from the price shown.
Drain for Sinks
Drain for Sinks
USD90.00 List price (U.S. dollars) is shown for comparison only. The actual retail price may be different from the price shown.
Drain for Sinks, Push-Open
Drain for Sinks, Push-Open
USD119.00 List price (U.S. dollars) is shown for comparison only. The actual retail price may be different from the price shown.

Article Details

  • Consists of: Design grate, Installation set
  • Mounting type: Free in the floor
  • Easy to clean surface
  • Installation set height adjustable by 1/4”- 3/4” tile thickness
  • Tile thickness: Up to 3/4”
  • Suitable for any type of tile
  • Up to 14 GPM drainage capacity
  • Field of application: New construction, Renovation
  • Grate removal tool allows easy removal of the pre-fab set
  • No visible silicone joint
  • With integrated slope
  • Grate material: Stainless Steel 304 (1.4301)
  • Suitable for primary drainage
  • Suitable for Clamp drain or no hub sleeve installation (parts need to be ordered separately)
Certificates headline lead

Certificates

Certificates headline lead

cUPC® Listed

cUPC® Listed products comply with applicable sections of the Uniform Plumbing Code (UPC®), National Plumbing Code of Canada, and International Plumbing Code (IPC®), as well as applicable sections of IAPMO Z124.1.2-2005 / CSA B45.5-2002

cUPC® Listed
cUPC® Listed
Certificates headline lead

Minimum Advertised Price (MAP)

Minimum Advertised Price (MAP)

Required parts - Select variant

Rectangular Clamp Drain 2" Cast Iron
Rectangular Clamp Drain 2" Cast Iron
USD93.00 List price (U.S. dollars) is shown for comparison only. The actual retail price may be different from the price shown.
Rectangular Clamp Drain 2" ABS
Rectangular Clamp Drain 2" ABS
USD79.00 List price (U.S. dollars) is shown for comparison only. The actual retail price may be different from the price shown.
Rectangular Clamp Drain 2" PVC
Rectangular Clamp Drain 2" PVC
USD79.00 List price (U.S. dollars) is shown for comparison only. The actual retail price may be different from the price shown.

Scope of delivery

  • finish set shower drain
  • grate removal tool
  • sealing membrane
  • mounting material
  • installation manual

Installation Information

Note

Please observe the safety and installation instructions for your product. You can find them in the installation instructions.

Find a Dealer Assembly instruction PDF, 5.4 MB
Measure Drawing
