AXOR Urquiola
3-hole basin mixer for concealed installation wall-mounted with spout 168 mm
Product code 11042000
Add to notepad
Product noted
Product saved for 30 daysSee notepad
The product could not be saved.
Please try again.
Please try again.
Compare products
Product added
Product saved for 30 daysTo the product comparison
The product could not be saved.
Please try again.
Please try again.
1,030.00
GBP
RRP incl. VAT
Special product features
Innovative Technologies
Trust in highest quality
FIVE-YEAR MANUFACTURER'S GUARANTEE
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Article details
- consists of: 3-hole basin mixer for concealed installation wall-mounted, waste set
- spout 168 mm long
- handle variant: flat handle
- wall-mounted
- spray type: normal spray

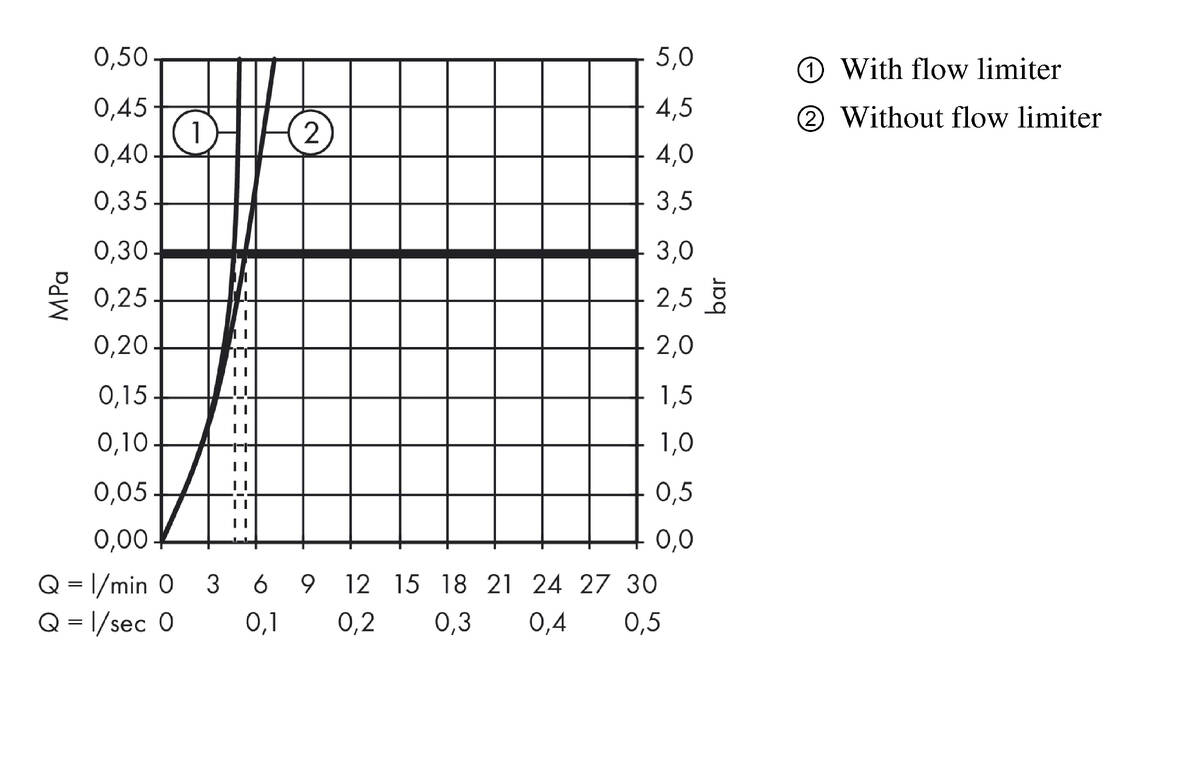

- maximum flow rate at 3 bar: 5 l/min
- min. operating pressure: 1 bar
- max. operating pressure: 10 bar
- ceramic valves hot/cold 90°
- free flow non-closing waste
- with QuickClean cleaning function
- hot and cold markings
- please specify when ordering if required for low pressure
- WRAS 2301056
Certificates
Certificates
Certificates
WRAS (Water Regulations Advisory Scheme)
The Water Regulations Advisory Scheme (WRAS) is the UK Water Industry's approval scheme. Products approved by the scheme have been shown to comply with the requirements of the Water Supply (Water Fittings) Regulations 1999 and amendments.
Downloads
Planning data
- Planning data (2D front view) DXF, 71 KB
- Planning data (2D front view) DWG, 23 KB
- Planning data (2D side view) DWG, 17 KB
- Planning data (2D side view) DXF, 57 KB
- Planning data (2D top view) DWG, 22 KB
- Planning data (2D top view) DXF, 72 KB
- Planning data (3D) DXF, 663 KB
- Planning data (3D) DWG, 165 KB
Technical Drawings
Installation information
Scope of delivery
- 3-hole basin mixer
- mounting material
- spout
- assembly instruction
AXOR Urquiola 3-hole basin mixer for concealed installation wall-mounted with spout 168 mm
