AXOR ShowerSolutions
Flood spout 240 mm x120 mm for concealed installation
Product code 10942000
Add to notepad
Product noted
Product saved for 30 daysSee notepad
The product could not be saved.
Please try again.
Please try again.
Compare products
Product added
Product saved for 30 daysTo the product comparison
The product could not be saved.
Please try again.
Please try again.
950.00
GBP
RRP incl. VAT
Special product features
Innovative Technologies
Trust in highest quality
FIVE-YEAR MANUFACTURER'S GUARANTEE
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Article details
- spout 180 mm long
- wall-mounted

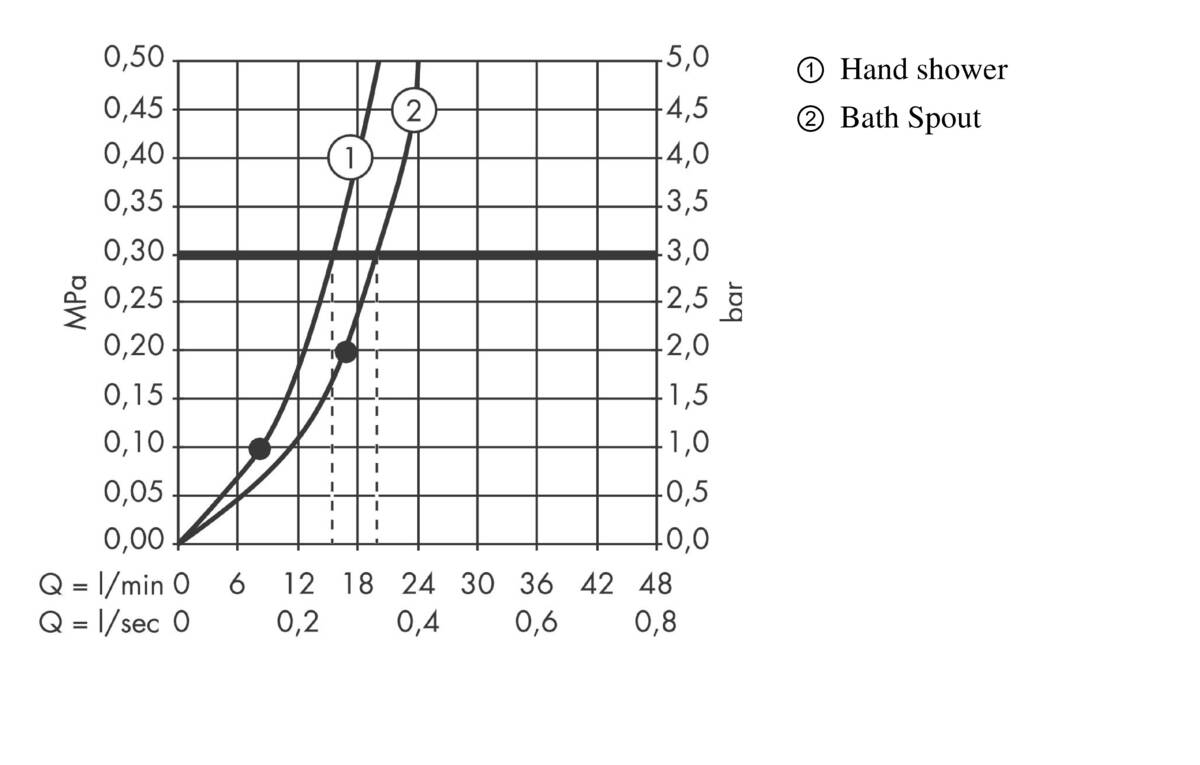

- maximum flow rate at 3 bar: 19 l/min
- operating pressure: min. 1 bar/max. 6 bar
- when positioning the spout between waterconducting parts (no.10751000, no.10755000, no.10972000, no.10651000, no.28491000, no.40872000, no.40873000) in joined installation (10 mm distance) it is recommended to use basic set no.10941180
- can be used as bath spout or flood shower
- RainFlow
- suitable for installation with or without basic set
- WRAS 240502046
Certificates
Certificates
Certificates
WRAS (Water Regulations Advisory Scheme)
The Water Regulations Advisory Scheme (WRAS) is the UK Water Industry's approval scheme. Products approved by the scheme have been shown to comply with the requirements of the Water Supply (Water Fittings) Regulations 1999 and amendments.
Downloads
Planning data
- Planning data (2D front view) DWG, 26 KB
- Planning data (2D front view) DXF, 62 KB
- Planning data (2D side view) DWG, 26 KB
- Planning data (2D side view) DXF, 64 KB
- Planning data (2D top view) DXF, 58 KB
- Planning data (2D top view) DWG, 24 KB
- Planning data (3D) DXF, 197 KB
- Planning data (3D) DWG, 54 KB
Technical Drawings
Installation information
Note
Please observe the safety and installation instructions for your product. You can find them in the installation instructions.
Scope of delivery
- bath tub filler
- mounting material
- assembly instruction
AXOR ShowerSolutions Flood spout 240 mm x120 mm for concealed installation
