AXOR One
Thermostatic module for concealed installation for 2 outlets
Product code 45712000
Add to notepad
Product noted
Product saved for 30 daysSee notepad
The product could not be saved.
Please try again.
Please try again.
Compare products
Product added
Product saved for 30 daysTo the product comparison
The product could not be saved.
Please try again.
Please try again.
GBP1,150.00
RRP incl. VAT
Special product features
Innovative Technologies
Trust in highest quality
FIVE-YEAR MANUFACTURER'S GUARANTEE
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Alternative products
Similar products
Matching products
You may also like
Article details
- 2 outlets and 1 additional outlet
- simultaneous use of several outlets
- comfortable turning on / off of outlets with large Select-paddle
- Eco-Function: flow rate regulation via lever handle, depending on volume flow and installation situation approx. 50% flow rate reduction
- thermostatic mixer cartridge, Start/stop valve to operate the outlets
- installation type: concealed installation

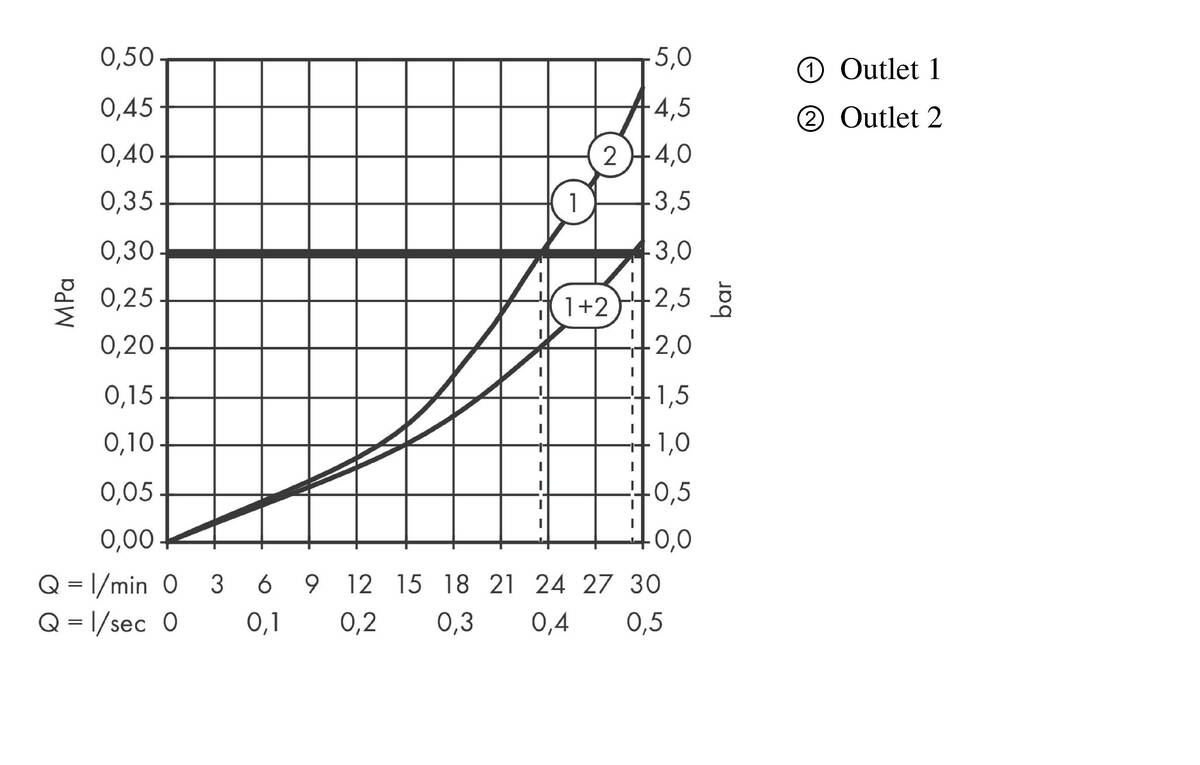

- flow rate per outlet: 24 l/min
- flow rate by simultaneous use of all outlets: 30 l/min
- maximum flow rate at 3 bar: 30 l/min
- min. operating pressure: 1 bar
- max. operating pressure: 5 bar
- Safety stop at 40 °C
- temperature limitation adjustable
- the thermostatic mixer offers the possibility for thermal disinfection
- non-return valve
- connection type: basic set
- thermostatic mixer is delivered with buttons hand shower and Rain large
- noise class: II
- WRAS 2203012
Certificates
Certificates
Certificates
WRAS (Water Regulations Advisory Scheme)
The Water Regulations Advisory Scheme (WRAS) is the UK Water Industry's approval scheme. Products approved by the scheme have been shown to comply with the requirements of the Water Supply (Water Fittings) Regulations 1999 and amendments.
Certificates
Environmental Product Declaration
An EPD is an Environmental Product Declaration. It is like an environmental identity card for products based on the results of a Life Cycle Assessment.
Environmental Product Declaration
Downloads
Planning data
- Planning data (2D) DWG, 218 KB
- Planning data (2D) DWG, 374 KB
- Planning data (2D front view) DWG, 38 KB
- Planning data (2D side view) DWG, 29 KB
- Planning data (2D top view) DWG, 22 KB
- Planning data (3D) DXF, 1.6 MB
- Planning data (3D) DWG, 373 KB
- Planning data (3D) DWG, 199 KB
- Planning data (3D) DWG, 1.5 MB
- Planning data (AutoCAD 2D) DWG, 44 KB
- Planning data (AutoCAD 2D) DWG, 39 KB
- Planning data (AutoCAD 2D) DWG, 44 KB
- Planning data (AutoCAD 2D) DWG, 371 KB
- Planning data (AutoCAD 3D) DWG, 182 KB
- Planning data (AutoCAD 3D) DWG, 248 KB
- Planning data (AutoCAD 3D) DWG, 182 KB
- Planning data (AutoCAD 3D) DWG, 1.5 MB
BIM Data
- BIM data (3DS) 3DS, 77 KB
- BIM data (3DS) 3DS, 60 KB
- BIM data (ArchiCAD) GSM, 647 KB
- BIM data (ArchiCAD) GSM, 625 KB
- BIM data (Filmbox 3D) FBX, 99 KB
- BIM data (Filmbox 3D) FBX, 102 KB
- BIM data (Revit) RFA, 528 KB
- BIM data (Revit) RFA, 712 KB
- BIM data (STL) STL, 109 KB
- BIM data (Sketchup) SKP, 396 KB
- BIM data (Sketchup) SKP, 365 KB
- BIM data (Wavefront OBJ) ZIP, 40 KB
- BIM data (Wavefront OBJ) ZIP, 40 KB
- BIM data TXT, 1 KB
- BIM data (IFC) IFC, 378 KB
- BIM data (IFC) IFC, 376 KB
- BIM data (STL) STL, 109 KB
- BIM data on BIMobject
Technical Drawings
Scope of delivery
- thermostatic mixer module
- outlet block
- assembly instruction
AXOR One Thermostatic module for concealed installation for 2 outlets
Find the right spare part
Product code 45712000
Finish {{selectedSurface}}
Construction year 10/15
Product code 45712000
Finish {{selectedSurface}}
Construction year
+
_
{{part.number}}
{{part.text}}
Product code
{{part.articleNumber}}
{{part.priceNet}}
RRP excl. VAT
{{part.priceGross}}
RRP incl. VAT
Optional accessories
