AXOR Citterio
Electronic basin mixer for concealed installation wall-mounted with spout 161 mm
Product code 39117000
Add to notepad
Product noted
Product saved for 30 daysSee notepad
The product could not be saved.
Please try again.
Please try again.
Compare products
Product added
Product saved for 30 daysTo the product comparison
The product could not be saved.
Please try again.
Please try again.
GBP1,320.00
RRP incl. VAT
Special product features
Innovative Technologies
Trust in highest quality
FIVE-YEAR MANUFACTURER'S GUARANTEE
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Alternative products
Similar products
Matching products
You may also like
Article details
- spout 161 mm long
- spray type: normal spray

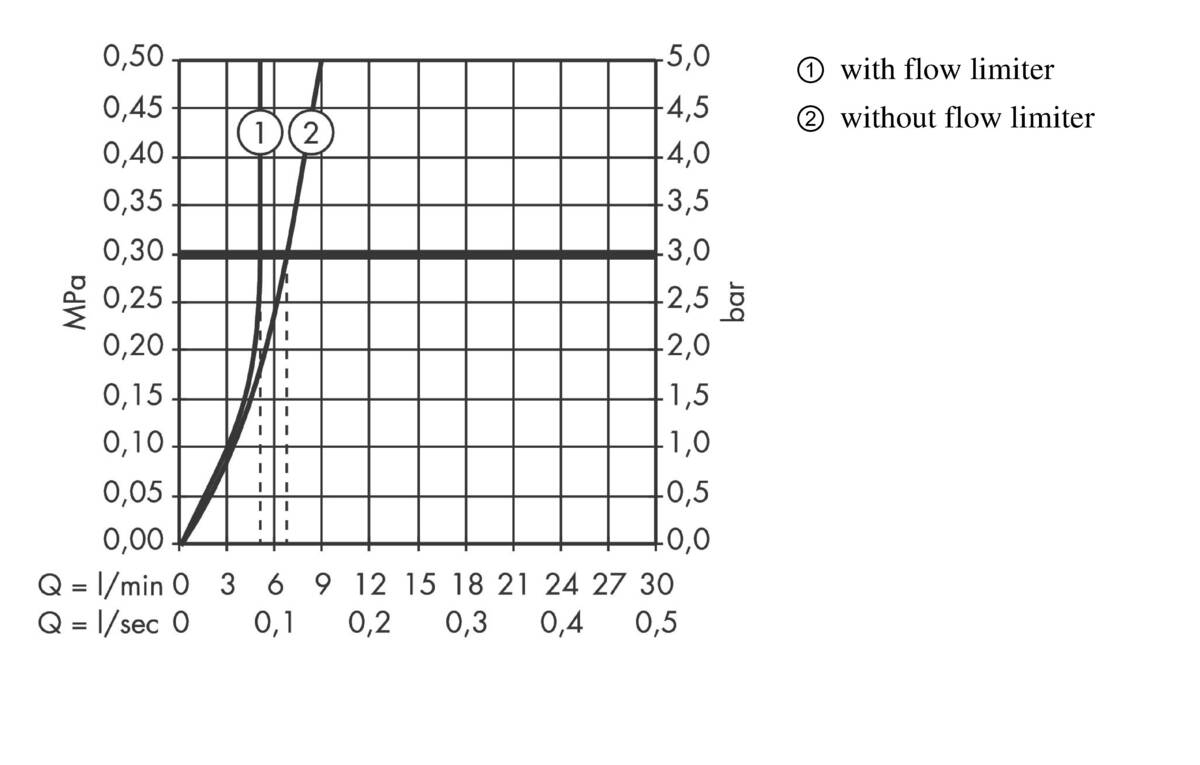

- maximum flow rate at 3 bar: 5 l/min
- min. operating pressure: 1 bar
- max. operating pressure: 10 bar
- temperature adjustable via basic set
- infrared sensor technology
- automatic environmental adjustment of infrared sensor
- adjustable optical range of infrared sensor (5 settings)
- 230 V / 50 Hz mains connection
- running time: 10 s
- hygiene rinse activatable (automatic water flow)
- frequency of hygiene rinse: 24 h
- flushing time hygiene rinse: 10 s
- permanent rinse activatable (single water flow for 180 seconds, suitable for thermal disinfection)
- cleaning mode: manual water stop for washbasin cleaning
- noise class: I
- dirt filters in the connection hoses
- for ideal function please note a minimum distance of 140 mm from the aerators center to the back rim of the wash basin
- if running with a pump, please specify a universal (negative head) pump
- WRAS 2110026
Certificates
Certificates
Certificates
WRAS (Water Regulations Advisory Scheme)
The Water Regulations Advisory Scheme (WRAS) is the UK Water Industry's approval scheme. Products approved by the scheme have been shown to comply with the requirements of the Water Supply (Water Fittings) Regulations 1999 and amendments.
Downloads
Planning data
- Planning data (2D front view) DWG, 31 KB
- Planning data (2D front view) DXF, 80 KB
- Planning data (2D side view) DWG, 37 KB
- Planning data (2D side view) DXF, 98 KB
- Planning data (2D top view) DWG, 30 KB
- Planning data (2D top view) DXF, 74 KB
- Planning data (3D) DWG, 381 KB
- Planning data (3D) DXF, 1.6 MB
Technical Drawings
Scope of delivery
- escutcheon
- spout
- covering escutcheon for iBox
- trafo 6 V/ 6 watt
AXOR Citterio Electronic basin mixer for concealed installation wall-mounted with spout 161 mm
Find the right spare part
Product code 39117000
Finish {{selectedSurface}}
Construction year 01/12
Product code 39117000
Finish {{selectedSurface}}
Construction year
+
_
{{part.number}}
{{part.text}}
Product code
{{part.articleNumber}}
{{part.priceNet}}
RRP excl. VAT
{{part.priceGross}}
RRP incl. VAT
