AXOR Citterio
3-hole basin mixer for concealed installation wall-mounted with spout 226 mm, cross handles and plate

FinishChrome

Product code 39144000

Preview at home 360° view

Product data sheet (PDF)

1,160.00 GBP RRP incl. VAT

Find a retailer

Special product features

Innovative Technologies

EcoSmart

Saving resources with pleasure

Our standard taps are equipped with our EcoSmart technology to save water and energy. While enjoying the full water experience, it consumes max. 5 l/min thanks to a flow limiter. Good for a conscious consumption of water and energy.

QuickClean

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

AirPower

More pleasure, more efficiency

Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.

Trust in highest quality

FIVE-YEAR MANUFACTURER'S GUARANTEE

Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.

Article details

consists of: 3-hole basin mixer for concealed installation wall-mounted, waste set
spout 226 mm long
handle variant: cross handle
wall-mounted
spray type: normal spray

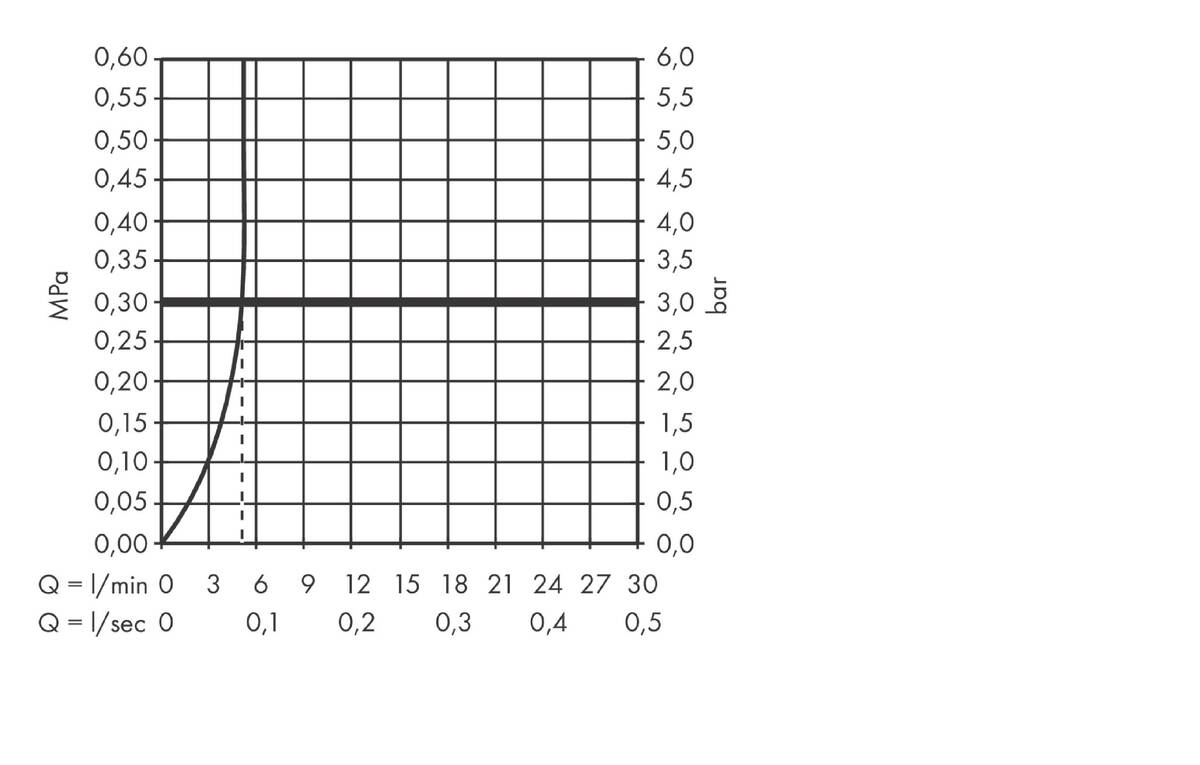

maximum flow rate at 3 bar: 5 l/min
min. operating pressure: 1 bar
max. operating pressure: 10 bar
ceramic valves hot/ cold 180°
free flow non-closing waste
with QuickClean cleaning function
please specify when ordering if required for low pressure
WRAS 250604021
REG4 2410801

Certificates

WRAS (Water Regulations Advisory Scheme)

The Water Regulations Advisory Scheme (WRAS) is the UK Water Industry's approval scheme. Products approved by the scheme have been shown to comply with the requirements of the Water Supply (Water Fittings) Regulations 1999 and amendments.

Downloads

Product data sheet (PDF)

Planning data

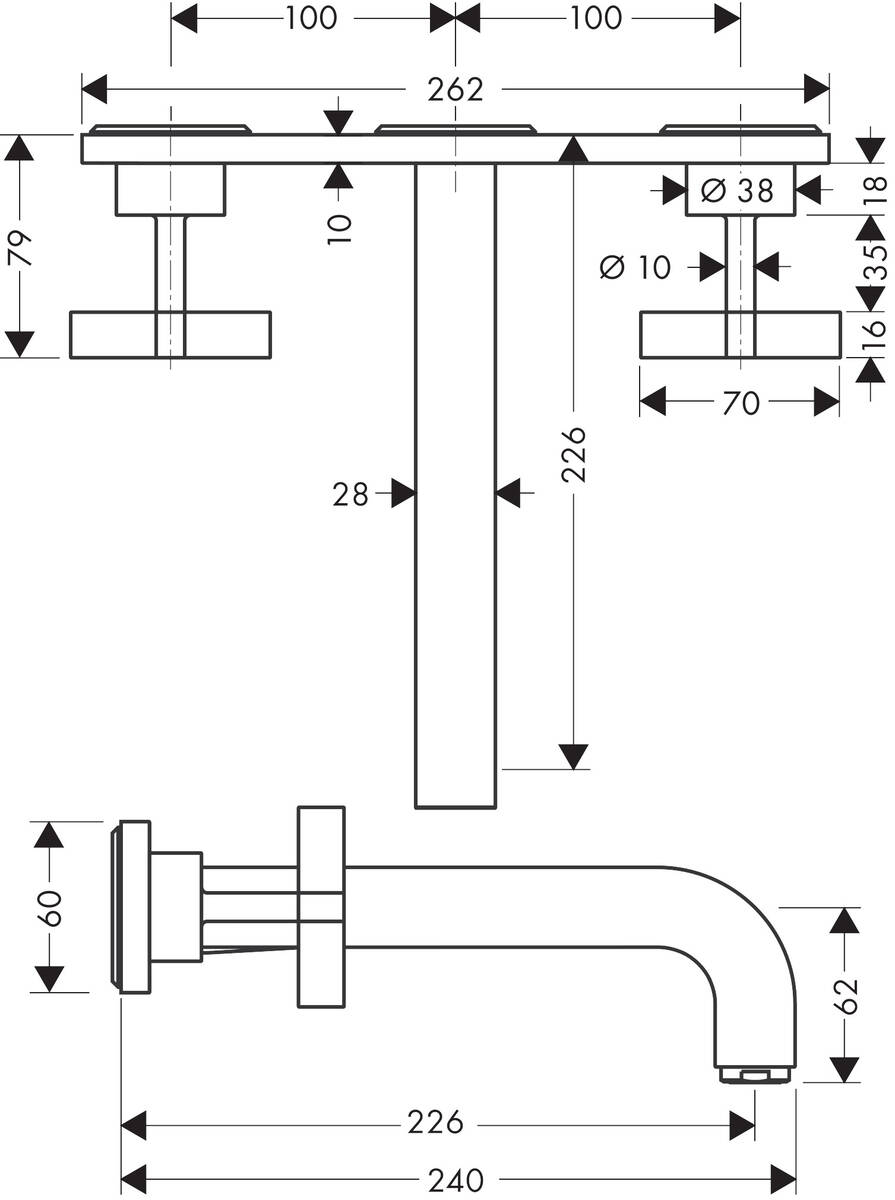

Technical Drawings

Manuals

Installation information

To the shopfinder Assembly instruction (Finish Set) PDF, 1.6 MB Assembly instruction (Basic Set) PDF, 12 MB

Scope of delivery

assembly instruction
3-hole basin mixer
spout
handles
sleeve
mounting plate

Required parts

Basic set for 3-hole wall mixer, wall-mounted

315.00GBP RRP incl. VAT

AXOR Citterio 3-hole basin mixer for concealed installation wall-mounted with spout 226 mm, cross handles and plate

Find the right spare part

{{part.text}} Product code {{part.articleNumber}}

{{part.priceNet}} RRP excl. VAT

{{part.priceGross}} RRP incl. VAT

Optional accessories

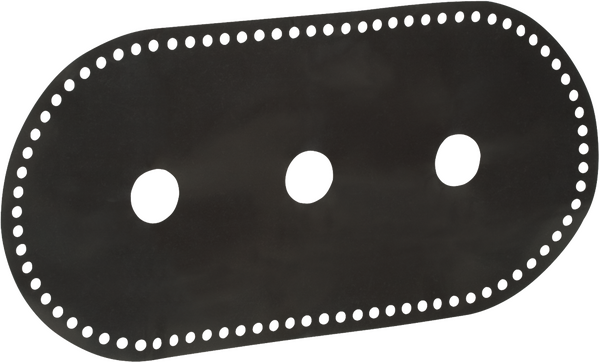

Seal

49.00GBP RRP incl. VAT

AXOR Starck Extension 25 mm for wall-mounted basic set for 3-hole basin mixer

83.00GBP RRP incl. VAT

Bottle trap 1¼" Flowstar

255.00GBP RRP incl. VAT
