AXOR ShowerSelect ID

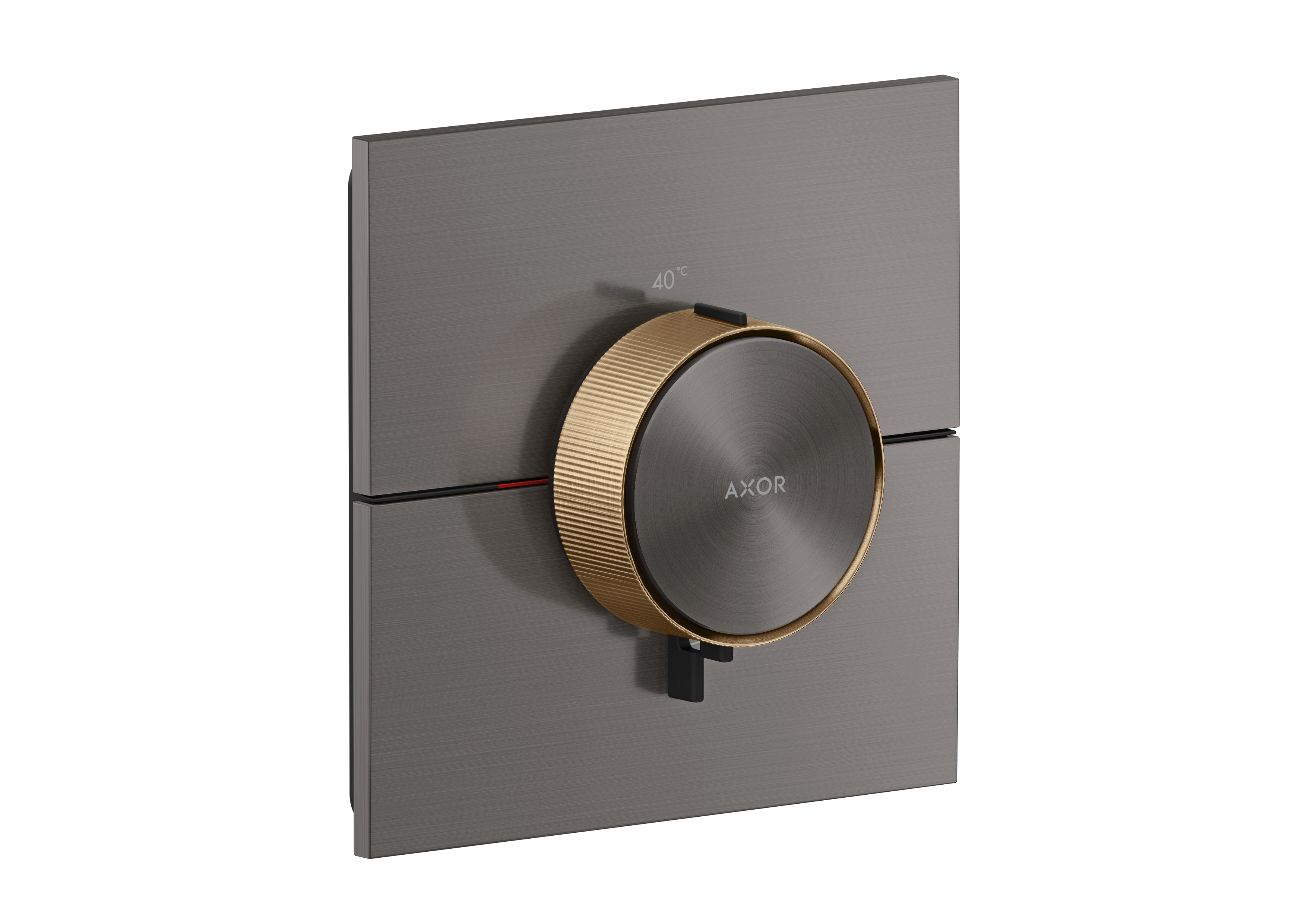

Thermostat HighFlow for concealed installation square (highlight: rim)

Thermostat HighFlow for concealed installation square (highlight: rim)
Thermostat HighFlow for concealed installation square (highlight: rim)
NEW

Art. no. 36782140

Remember product Product noted Product saved for 30 daysTo the notepad The product could not be saved.
Please try again.
Compare products Product added Product saved for 30 daysTo the product comparison The product could not be saved.
Please try again.
Preview at home 360° view
Product data sheet (PDF)
Find a specialist dealer
Special product features

Innovative technologies

Always constant water temperature
Thermostat
Thermostat

Always constant water temperature

Thermostat with integrated temperature control for constant water temperature.

Safety lock at over 40 °C
SafetyStop
SafetyStop

Safety lock at over 40 °C

Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.

Trust in highest quality

5 years warranty

Product Alternatives

Similar Products

Article Details

  • temperature and water flow control, precise temperature control thanks to vertical handle structure and haptic feedback from the thermostat handle
  • water flow control with stop function
  • maximum flow rate at 1 bar: 12,8 l/min
  • maximum flow rate at 3 bar: 24 l/min
  • flow rate upper outlet: 24 l/min
  • flow rate lower outlet: 23 l/min
  • flow rate by simultaneous use of all outlets: 34,8 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • flat escutcheon for more space in the shower
  • escutcheon can be aligned by +/- 3°
  • easy installation due to pre-assembled function block
  • handles always at the same height regardless of the installation depth of the basic set
  • material button: metal
  • material handles: metal

Downloads

Product data sheet (PDF)

REQUIRED PARTS

Scope of delivery

  • handle
  • sleeve
  • metal escutcheon
  • function block

Installation Information

Note

Please observe the safety and installation instructions for your product. You can find them in the installation instructions.
