AXOR ShowerSelect ID

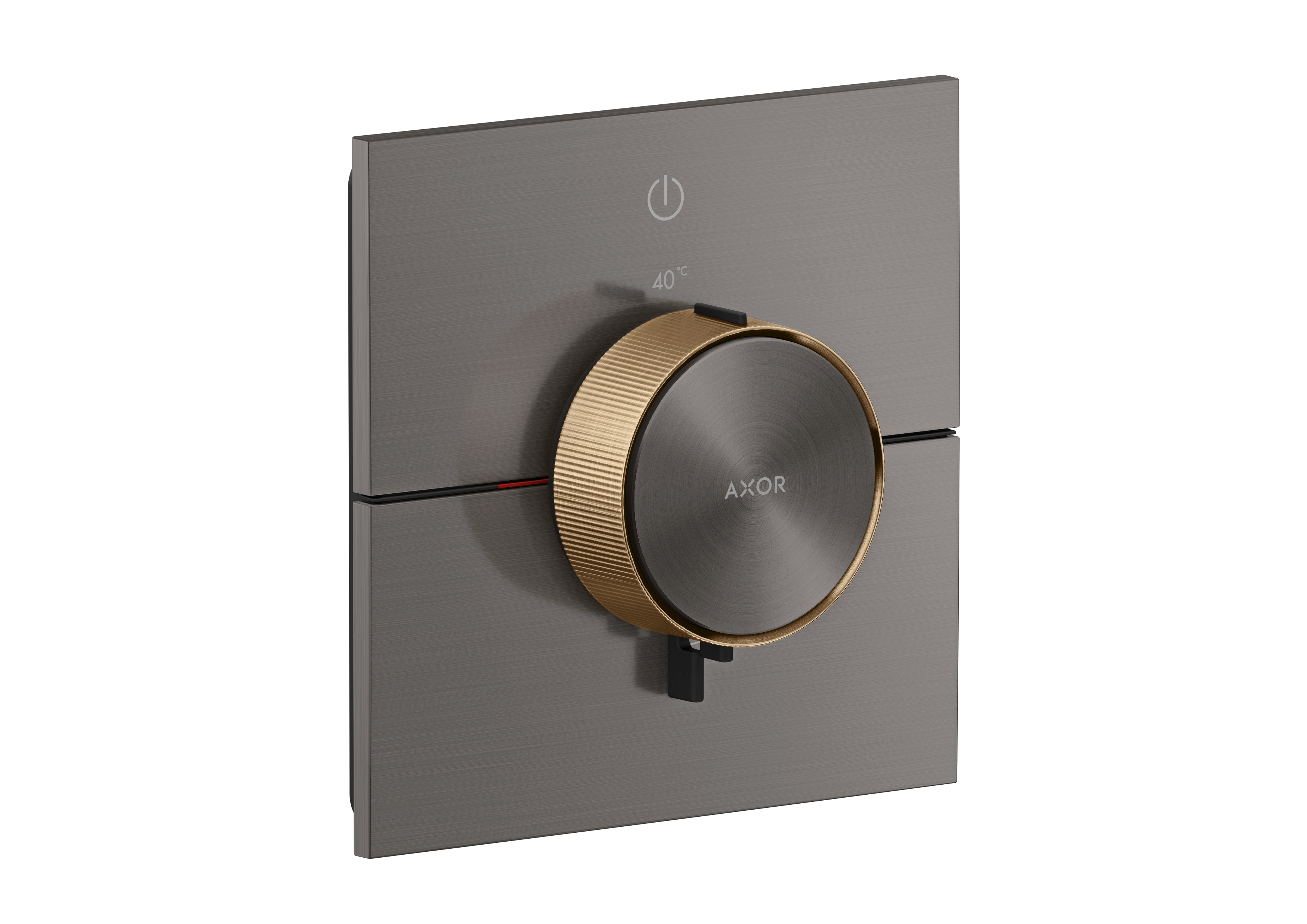

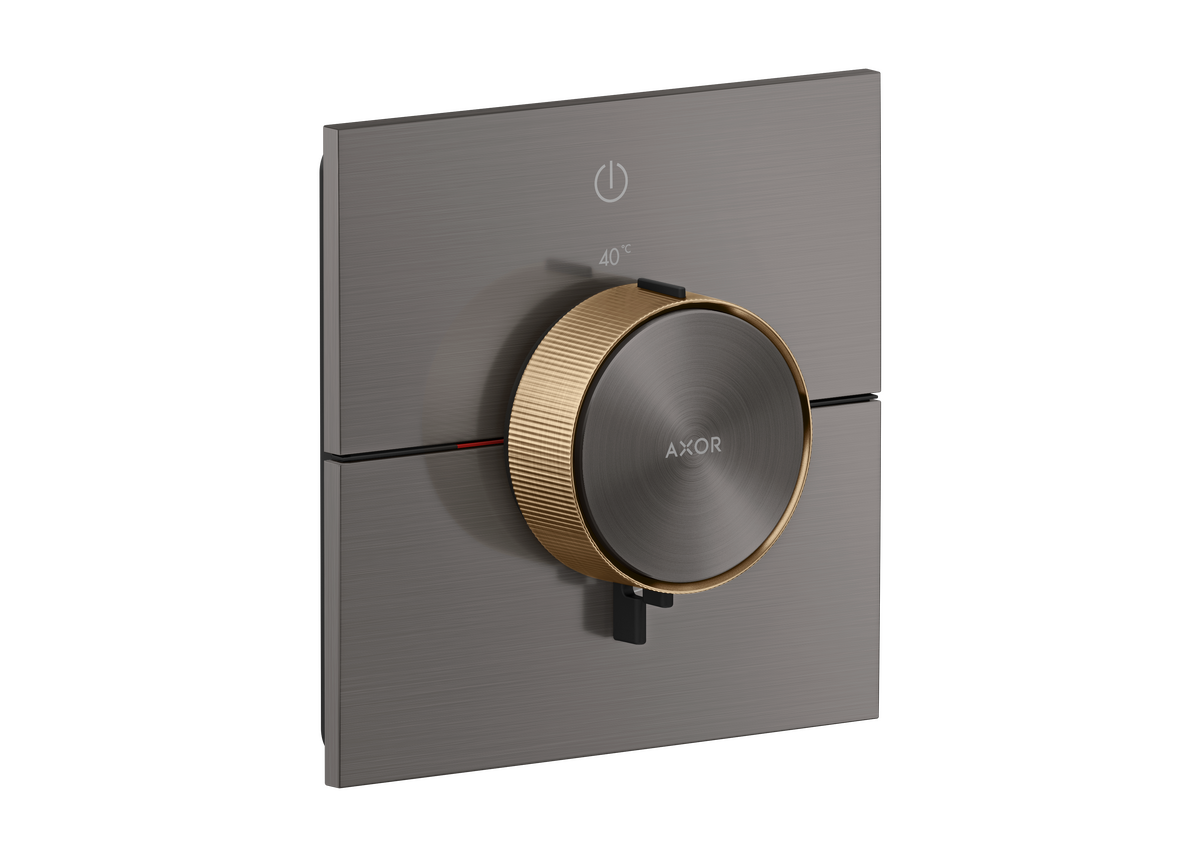

Thermostat for concealed installation square for 1 function (highlight: rim)

Thermostat for concealed installation square for 1 function (highlight: rim)
Thermostat for concealed installation square for 1 function (highlight: rim)
NEW

Art. no. 36741140

Remember product Product noted Product saved for 30 daysTo the notepad The product could not be saved.
Please try again.
Compare products Product added Product saved for 30 daysTo the product comparison The product could not be saved.
Please try again.
Preview at home 360° view
Product data sheet (PDF)
Find a specialist dealer
Special product features

Innovative technologies

Always constant water temperature
Thermostat
Thermostat

Always constant water temperature

Thermostat with integrated temperature control for constant water temperature.

For mindful use of water
Water flow control
Water flow control

For mindful use of water

Actively regulates water consumption – the amount of water can be adjusted via the control dial.

Safety lock at over 40 °C
SafetyStop
SafetyStop

Safety lock at over 40 °C

Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.

Intuitive jet adjustment
Select
Select

Intuitive jet adjustment

A playful way to control the water flow, shower or spray type at the simple touch of a button.

Trust in highest quality

5 years warranty

Product Alternatives

Similar Products

Article Details

  • 1 function
  • comfortable turning on / off of outlets with large Select-paddle, precise temperature control thanks to vertical handle structure and haptic feedback from the thermostat handle
  • water flow control with stop function
  • thermostat cartridge, Start/stop valve to operate the functions
  • maximum flow rate at 1 bar: 10,8 l/min
  • maximum flow rate at 3 bar: 20,3 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • flat escutcheon for more space in the shower
  • escutcheon can be aligned by +/- 3°
  • easy installation due to pre-assembled function block
  • handles always at the same height regardless of the installation depth of the basic set
  • Safety stop at 40 °C
  • temperature limitation adjustable
  • the thermostat offers the possibility for thermal disinfection
  • material button: metal
  • material handles: metal
  • connection type: basic set iBox universal 2 (# 01400180)
  • Select-paddle is delivered with lasered On/Off symbol

Downloads

Product data sheet (PDF)

REQUIRED PARTS

Scope of delivery

  • thermostat
  • function block
  • mounting material
  • assembly instruction

Installation Information

Note

Please observe the safety and installation instructions for your product. You can find them in the installation instructions.

Find plumber

OPTIONAL ACCESSORIES
