AXOR One

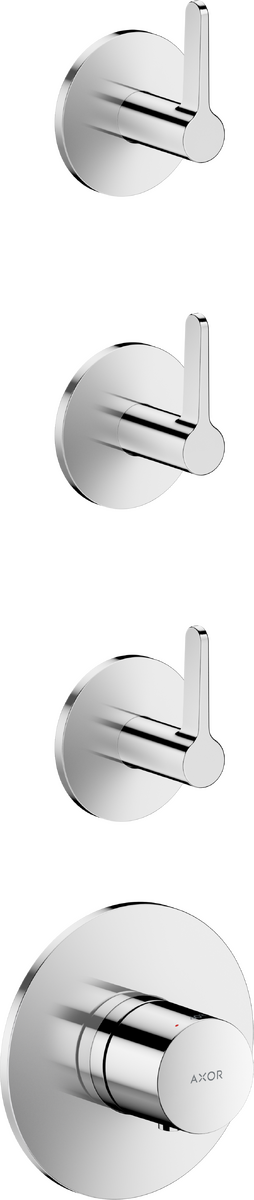

Thermostatic module for concealed installation for 3 functions with lever handle
Art. no. 48723000
Remember product
Product noted
Product saved for 30 daysTo the notepad
The product could not be saved.
Please try again.
Please try again.
Compare products
Product added
Product saved for 30 daysTo the product comparison
The product could not be saved.
Please try again.
Please try again.
Special product features
Innovative technologies
Trust in highest quality
5 years warranty
Product Alternatives
Similar Products
Matching Products
You could also like:
Article Details
- consists of: thermostat, shut-off valve
- 3 functions
- simultaneous utilization of 3 functions
- thermostat cartridge
- flow rate per function: 27 l/min
- flow rate by simultaneous use of all outlets: 38 l/min
- min. operating pressure: 1 bar
- max. operating pressure: 10 bar
- combination of highflow thermostat with shut-off valve and Quattro diverter valve for controlling 3 consumers
- suitable for horizontal and vertical installation
- Safety stop at 40 °C
- temperature limitation adjustable
- connection dimension: DN20
- connection type: basic set
Certificates headline lead
Certificates
Certificates headline lead
Environmental Product Declaration
An EPD is an Environmental Product Declaration. It is like an environmental identity card for products based on the results of a Life Cycle Assessment.
Downloads
REQUIRED PARTS
Scope of delivery
- thermostatic module
- mounting material
- assembly instruction
