AXOR One

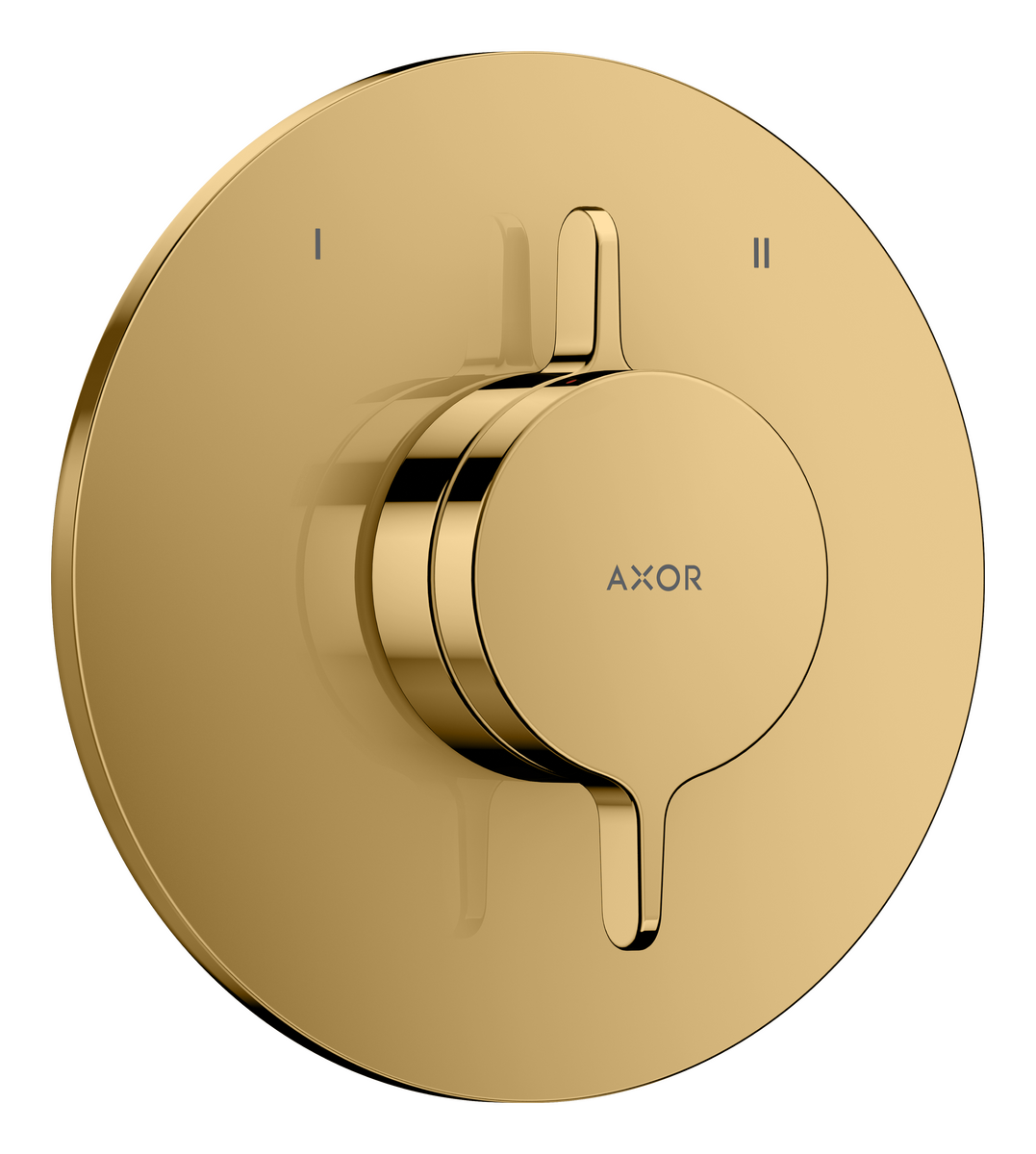

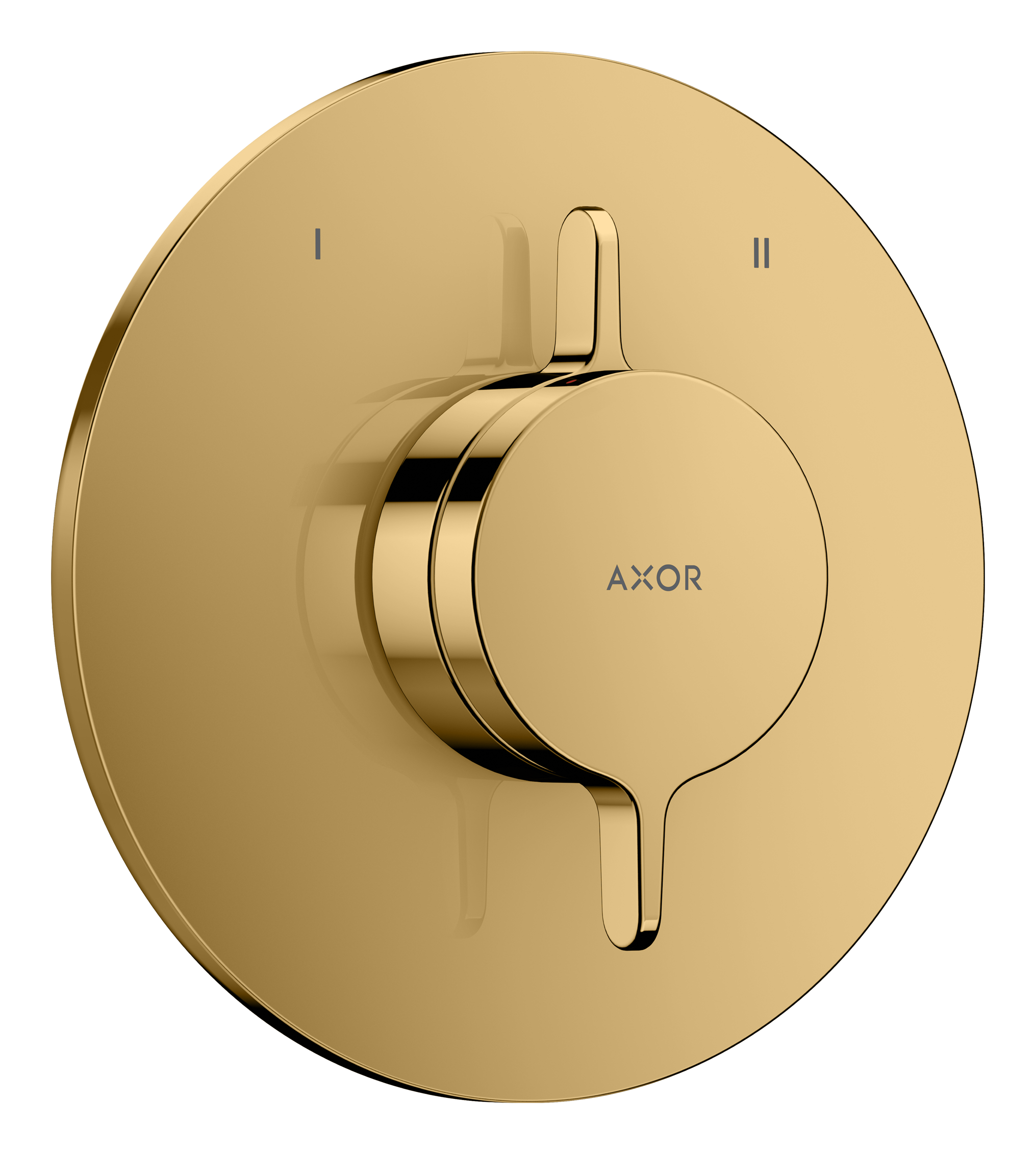

Mixer for concealed installation for 2 functions

Mixer for concealed installation for 2 functions
Mixer for concealed installation for 2 functions
NEW
Change variant
Select a variant
Mixer for concealed installation for 2 functions
Mixer for concealed installation for 1 function
more colours availableTo the special finishes
FinishPolished Gold Optic

Art. no. 48415990

Remember product Product noted Product saved for 30 daysTo the notepad The product could not be saved.
Please try again.
Compare products Product added Product saved for 30 daysTo the product comparison The product could not be saved.
Please try again.
Preview at home 360° view
Product data sheet (PDF)
Find a specialist dealer
Special product features

Innovative technologies

Water Flow Control: Precisely regulate the water volume
Water flow control
Water flow control

Water Flow Control: Precisely regulate the water volume

This water volume can be precisely regulated, so you can use less of this precious resource. Individually adjustable for all those who usually find a gentle water flow more pleasant.

Trust in highest quality

5 years warranty

Product Alternatives

Similar Products

Matching Products

You could also like:

Article Details

  • 2 functions
  • volume control and diverter for 2 functions
  • maximum flow rate at 3 bar: 29,5 l/min
  • maximum flow rate at 1 bar: 15 l/min
  • flow rate upper outlet: 29,5 l/min
  • ceramic cartridge for temperature control, shut-off/ diverter valve
  • with silencer
  • flat escutcheon for more space in the shower
  • easy installation due to pre-assembled function block
  • handles always at the same height regardless of the installation depth of the basic set
  • can be used as bath or shower mixer
  • escutcheon can be aligned by +/- 3°
  • material escutcheon: metal
  • material handles: metal
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • connection type: basic set iBox universal 2 (# 01400180)
  • flow rate lower outlet: 29,5 l/min

Downloads

Product data sheet (PDF)

REQUIRED PARTS

Scope of delivery

  • mixer
  • function block
  • mounting material
  • assembly instruction

OPTIONAL ACCESSORIES
