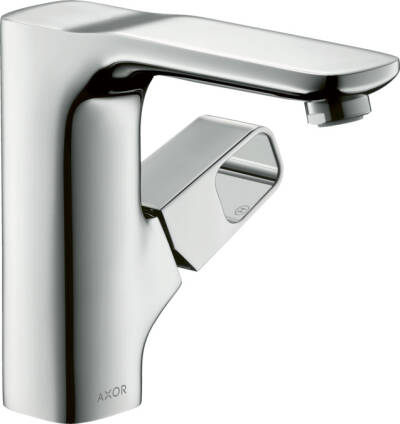

| consists of | single lever basin mixer, waste set |
|---|---|
| ComfortZone | 130 |
| projection | 139 mm |
| spray type | normal spray |
| flow rate at 3 bar | 5 l/min |
| cartridge | ceramic cartridge |
| temperature limitation adjustable |
 |
| suitable for continous flow water heaters |
|
| waste set | pop-up waste set G 1¼ |
| connection dimension | DN15 |
| Test mark |
P-IX 19147/IZ ACS 09 ACC LY 251 ETA VA 1.42/18817 WRAS 1112038 DVGW NW-6506CL0400 SVGW 1003-5701 Kiwa K6161/15 ACS 12 ACC LY 352 ACS 12 ACC LY 352, valide jusqu'au 20.06.2017 Kiwa K6161_Mechanical Mixers EN817 KCW-2012-0427 SINTEF 1742 STA 1374 WELS SGP 1 Tick BST-2009/003268 JWWA C-501 ACS 17 ACC LY 654, valide jusqu'au 20.06.2022 KCW-2018-0161/2012-0427 WRAS 1903003 Reg 4 170393 KCW-2018-0161_WTM |
optional accessory
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 0.1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB

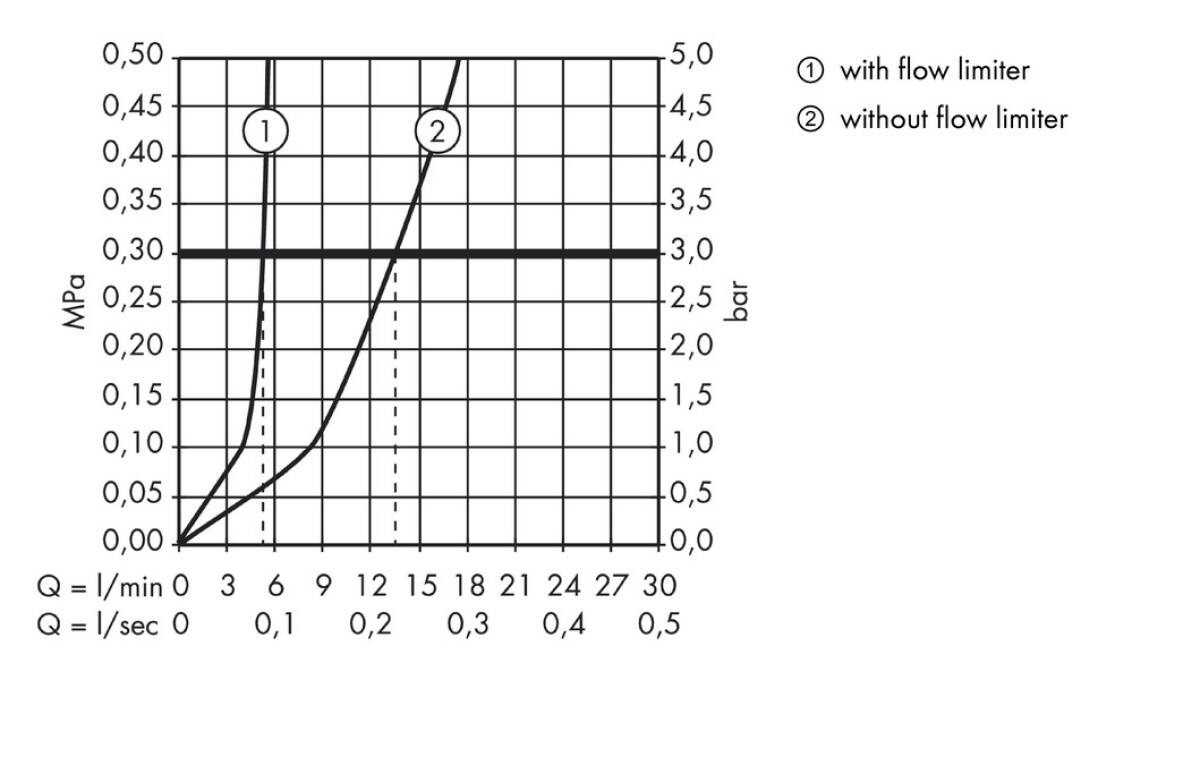

Flow chart
JPG / 0.1MB
Assembly instruction(Mixer)
Technical publication
PDF / 2MB
Service instruction(Cleaning Recommendation)
Technical publication
PDF / 0.1MB
BIM data (Autodesk FBX)
FBX / 0.1MB
BIM data (ArchiCAD)
GSM / 1MB
BIM data (Revit)
FPX / 0.1MB
BIM data (3DS)
3DS / 0.1MB
BIM data (AutoCAD 3D)
DWG / 0.1MB
BIM data (IFC)
IFC / 0.1MB
BIM data (Sketchup)
SKP / 0.1MB
BIM data (STL)
STL / 0.1MB
BIM data (AutoCAD 2D)
DWG / 0.1MB
BIM data (Wavefront OBJ)
ZIP / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 0.1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB
BIM data (Autodesk FBX)
FBX / 0.1MB
BIM data (ArchiCAD)
GSM / 1MB
BIM data (Revit)
FPX / 0.1MB
BIM data (3DS)
3DS / 0.1MB
BIM data (AutoCAD 3D)
DWG / 0.1MB
BIM data (IFC)
IFC / 0.1MB
BIM data (Sketchup)
SKP / 0.1MB
BIM data (STL)
STL / 0.1MB
BIM data (AutoCAD 2D)
DWG / 0.1MB
BIM data (Wavefront OBJ)
ZIP / 0.1MB
With this shower technology, water is mixed with air - this enrichment makes the water droplets plumper, lighter and softer. And: water is used more efficiently.
Generous, intuitive and a big win on comfort: AXOR showers, taps and thermostats with this trademark extend your personal ComfortZone at the washbasin.
AXOR taps and showers with the EcoSmart technology use up to 60% less water than conventional products – without any loss of comfort. This means water and energy costs are reduced and valuable resources conserved.
Who really enjoys cleaning? With the QuickClean function, dirt and limescale deposits from taps and showers are rapidly removed thanks to flexible silicon knobs on the spray disc.
AirPower
ComfortZone
EcoSmart
QuickClean
