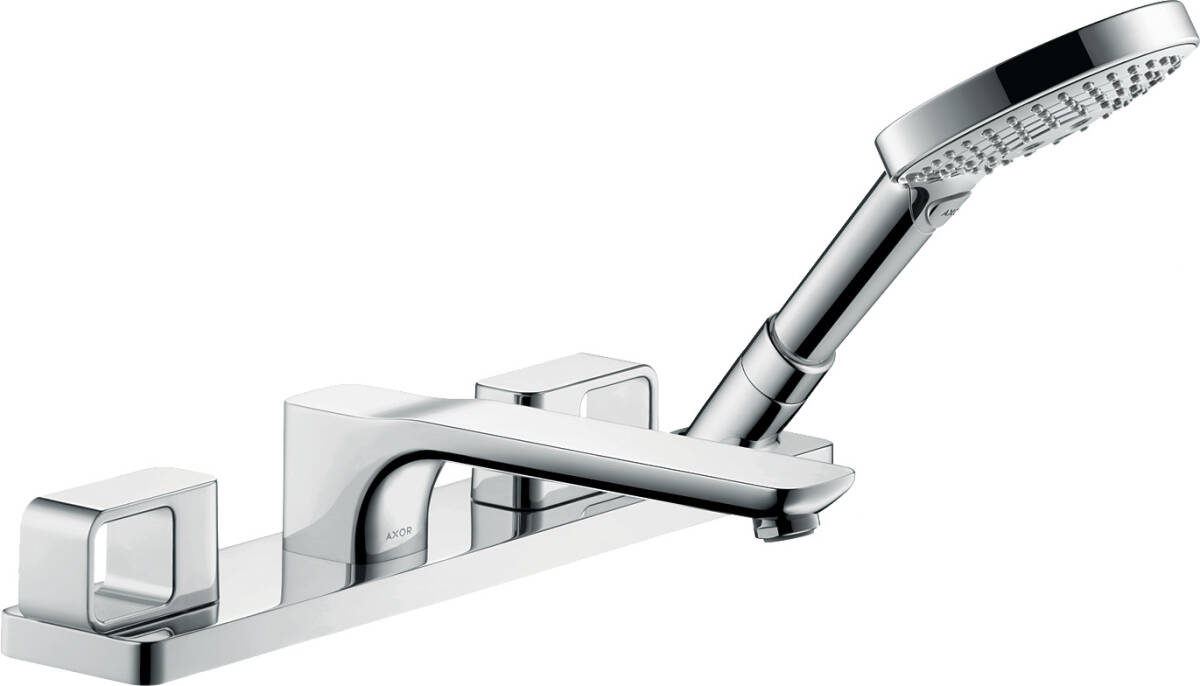

| consists of | 4-hole rim mounted bath mixer, hand shower, shower hose, shower holder |
|---|---|
| projection | 198 mm |
| connection type | basic set |
| spray type mixer | normal spray |
| spray type hand shower | Rain, RainAir, Whirl |
| maximum pull-out length of hand shower | 1.10 m |
| flow rate at 3 bar | 22 l/min |
| cartridge | ceramic valves hot/ cold 90° |
| min. operating pressure | 1 bar |
| max. operating pressure | 10 bar |
| temperature limitation adjustable |
 |
| return function |
 |
| non-return valve |
|
| connection dimension | DN15 |
| Test mark |
P-IX 9087/ICB ACS 18 ACC LY 570, valide jusqu'au 27.08.2023 STA 1518 |
Consisting of
required accessory
optional accessory

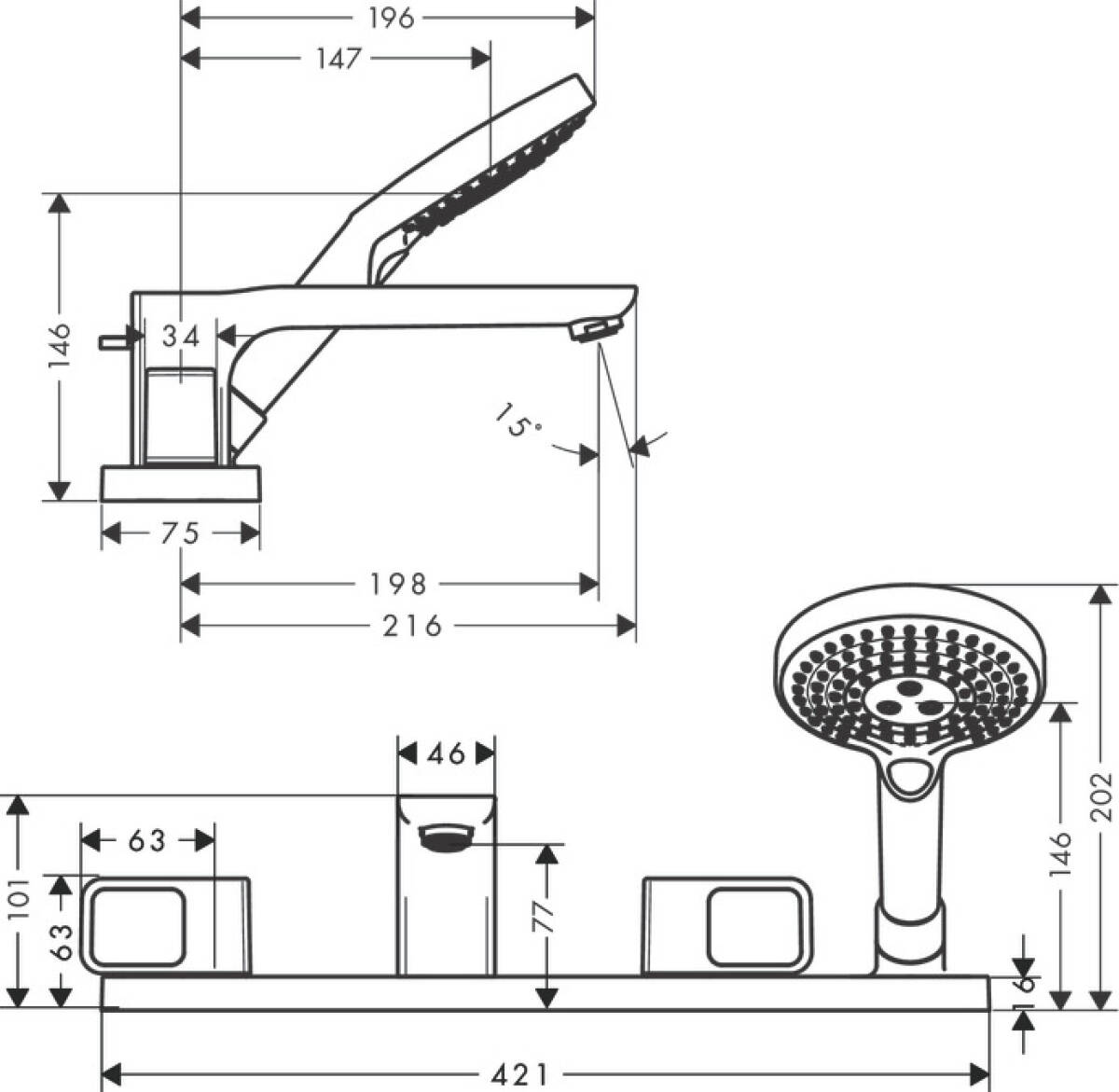

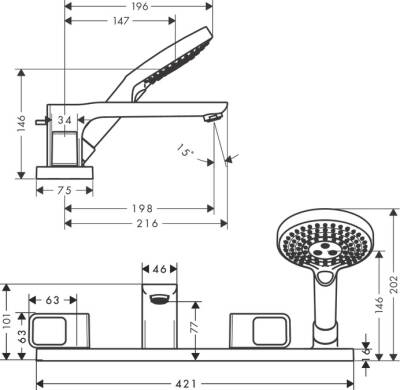

Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB

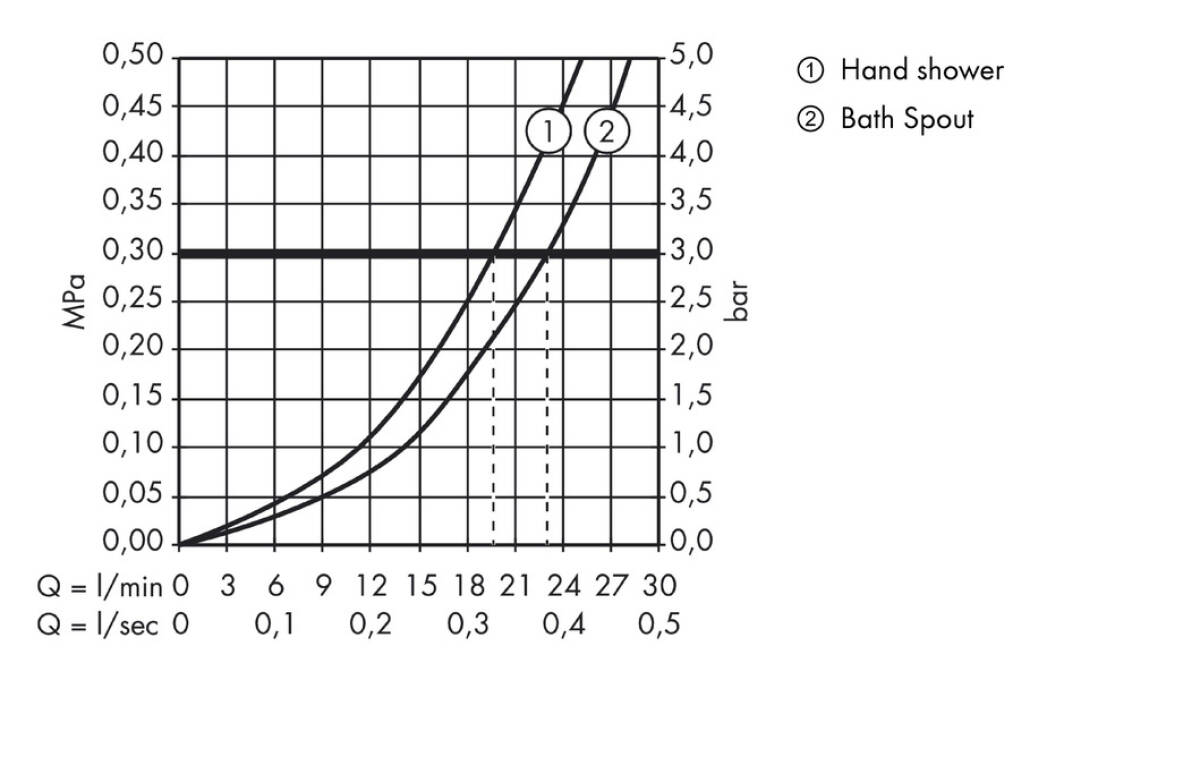

Flow chart
