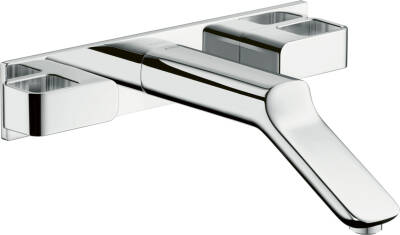

| consists of | 3-hole basin mixer for concealed installation wall-mounted, waste set |
|---|---|
| projection | 168 mm |
| spray type | normal spray |
| flow rate at 3 bar | 5 l/min |
| cartridge | ceramic valves hot/ cold 90° |
| temperature limitation adjustable |
 |
| suitable for continous flow water heaters |
 |
| waste set | non-closing waste set |
| connection dimension | DN15 |
| Test mark |
SVGW 1001-5666 P-IX 19149/IA WRAS 1112034 Kiwa K 6110/03 ACS 14 ACC NY 363, valide jusqu'au 20.10.2019 ETA VA 1.42/19070 Kiwa K6110_Mechanical Mixers EN200 SINTEF 1425 ACS 09 ACC LY 254 DVGW NW-6501CL0202 ACS 09 ACC LY 254, valide jusqu'au 09.07.2014 ACS 14 ACC NY 363, valide jusqu'au 00.00.0000 KCW-2012-0427 Watermark Mixers_WMKA00149 Watermark Mixers WMKA 00149 ACS 14 ACC NY 363, valide jusqu'au 30.10.2019 NSF Declaration 170321 WRAS 1706032 STA 1420 JWWA C-278 Watermark Mixers WMKA 0149 KCW-2018-0161/2012-0427 KCW-2018-0161_WTM |
required accessory
optional accessory
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 0.1MB
Planning data (3D)
DXF / 1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB

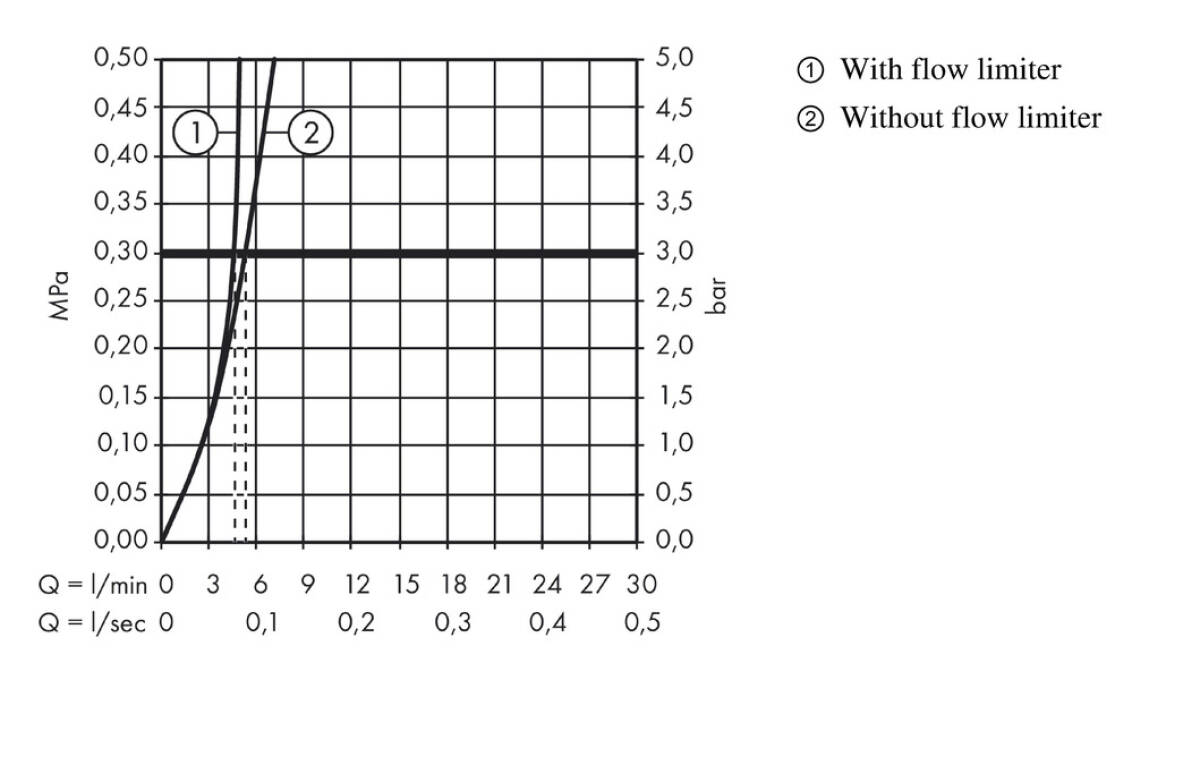

Flow chart
