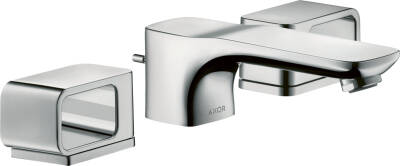

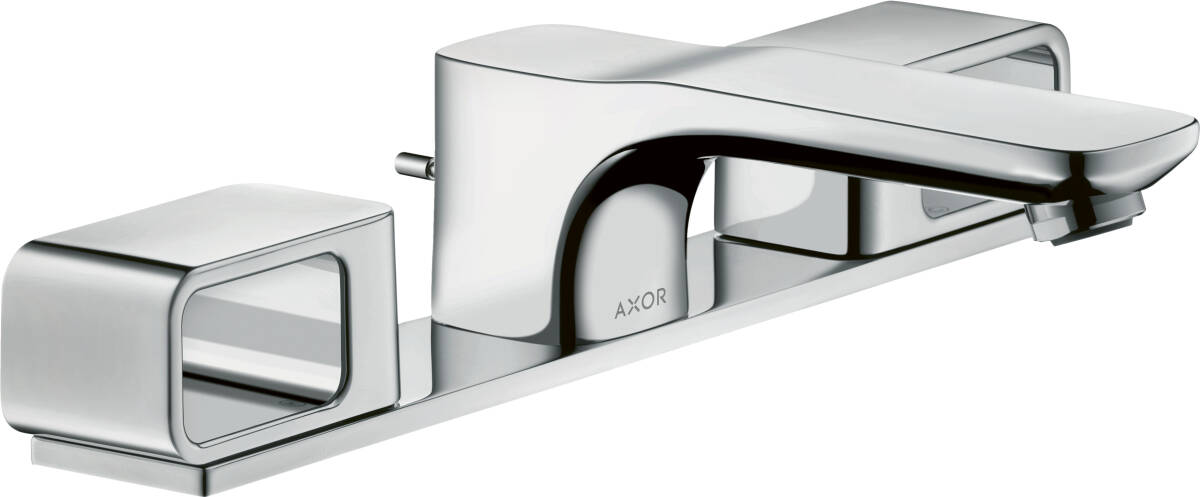

| consists of | 3-hole basin mixer, waste set |
|---|---|
| ComfortZone | 50 |
| projection | 180 mm |
| spray type | normal spray |
| flow rate at 3 bar | 5 l/min |
| cartridge | ceramic valves hot/ cold 90° |
| temperature limitation adjustable |
 |
| suitable for continous flow water heaters |
 |
| waste set | pop-up waste set G 1¼ |
| connection dimension | DN15 |
| additional comment | for use only at flat, plain surfaces |
| Test mark |
WRAS 1112035 P-IX 19148/IZ ETA VA 1.42/18814 ACS 09 ACC LY 252 SVGW 1004-5705 Kiwa K 6110/03 ACS 14 ACC NY 363, valide jusqu'au 20.10.2019 Kiwa K6110_Mechanical Mixers EN200 DVGW NW-6501CL0202 ACS 14 ACC NY 363, valide jusqu'au 00.00.0000 KCW-2012-0427 ACS 14 ACC NY 363, valide jusqu'au 30.10.2019 NSF Declaration 170394 WELS SGP 1 Tick BST-2009/003436 WRAS 1706031 STA 1426 KCW-2018-0161/2012-0427 KCW-2018-0161_WTM KCW-2012-0427_KM |
optional accessory

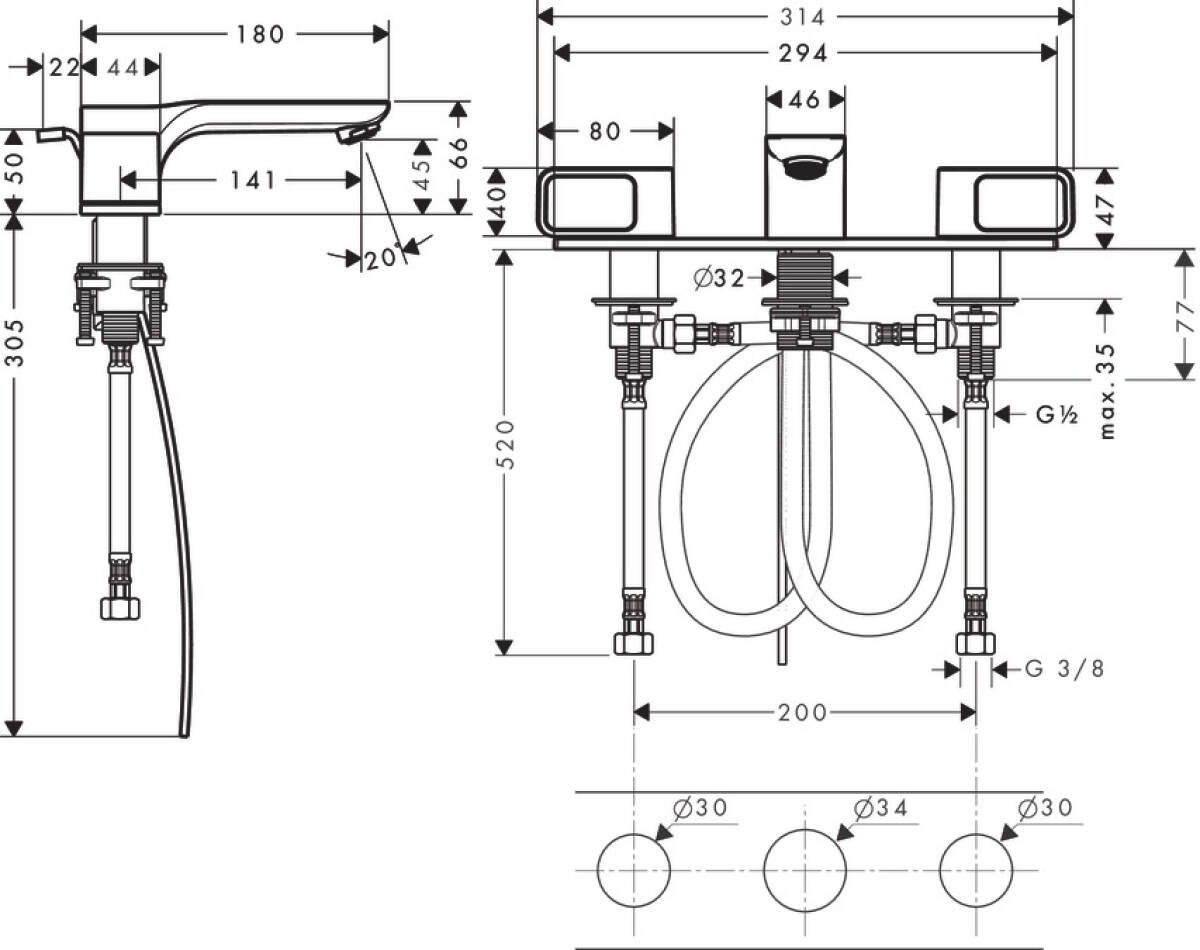

Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 0.1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB

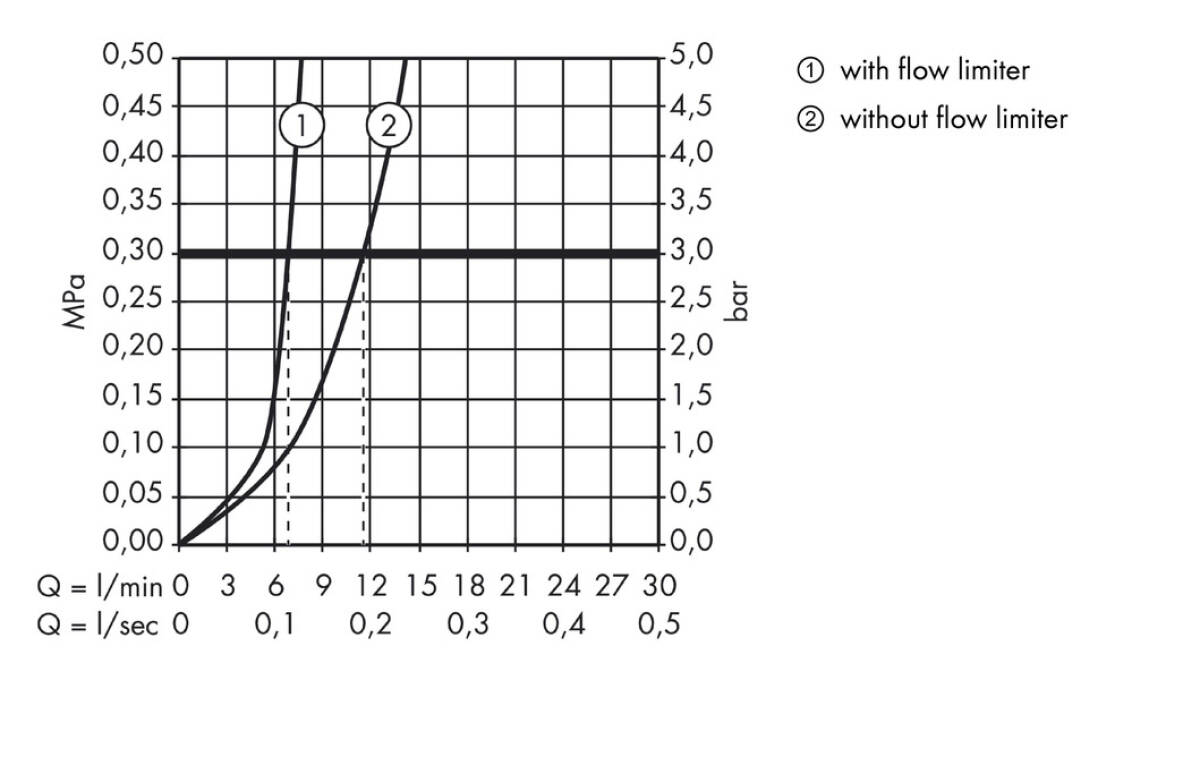

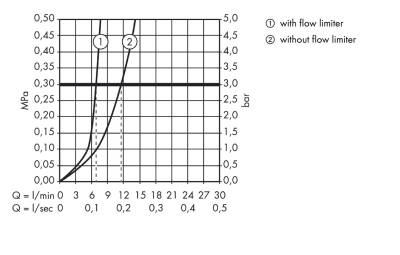

Flow chart
JPG / 0.1MB
Assembly instruction(Mixer)
Technical publication
PDF / 2MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 0.1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB
With this shower technology, water is mixed with air - this enrichment makes the water droplets plumper, lighter and softer. And: water is used more efficiently.
Generous, intuitive and a big win on comfort: AXOR showers, taps and thermostats with this trademark extend your personal ComfortZone at the washbasin.
AXOR taps and showers with the EcoSmart technology use up to 60% less water than conventional products – without any loss of comfort. This means water and energy costs are reduced and valuable resources conserved.
Who really enjoys cleaning? With the QuickClean function, dirt and limescale deposits from taps and showers are rapidly removed thanks to flexible silicon knobs on the spray disc.
