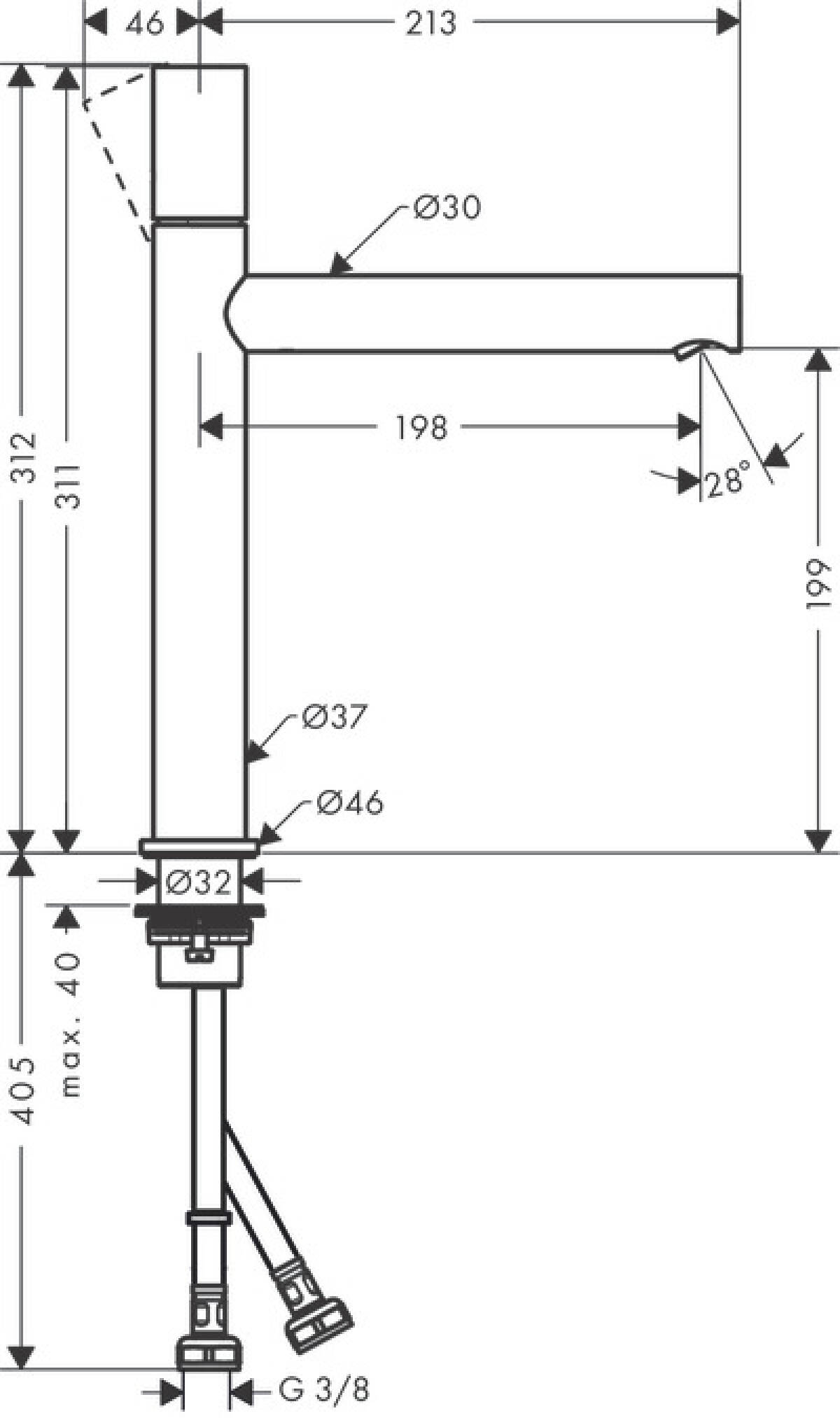

Scale drawing
JPG / 0.1MB
Menu
Your wish list is currently empty.
Add productsMenu
Your wish list is currently empty.
Add products
Variant
Single lever basin mixer 200 with zero handle for wash bowls and waste set
Surface finish
Chrome
Art. no.: 45003000
Select variant
| consists of | single lever basin mixer, waste set |
|---|---|
| ComfortZone | 200 |
| projection | 198 mm |
| spray type | laminar spray |
| flow rate at 3 bar | 5 l/min |
| cartridge | ceramic cartridge |
| temperature limitation adjustable |
 |
| suitable for continous flow water heaters |
|
| waste set | non-closing waste set |
| connection type | G β connections |
| connection dimension | DN15 |
| Test mark |
NSF Declaration 170099 WELS SGP 1 Tick BST-2017/022541 P-IX 7288/IO DVGW DW-6506CS0457 STA 1489 ACS 18 ACC LY 832, valide jusqu'au 27.12.2023 SVGW 1712-6707 WRAS 1710014 |
optional accessory
Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D)
DWG / 0.1MB

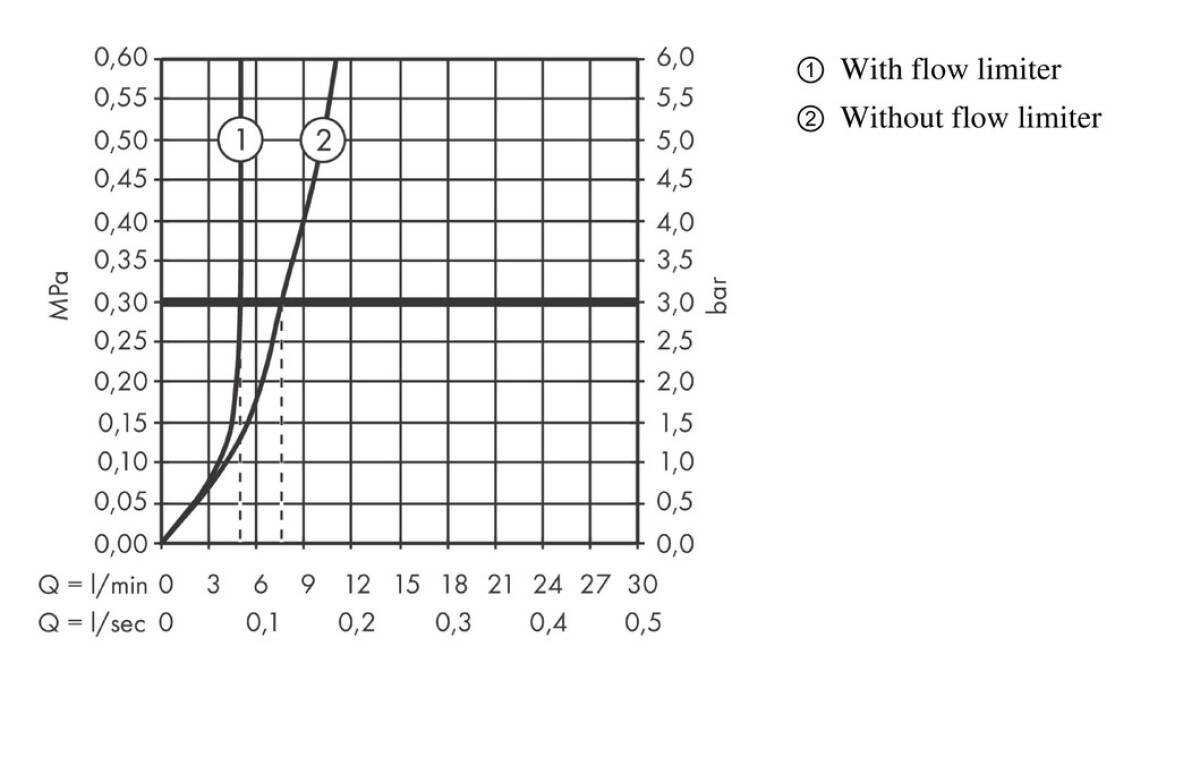

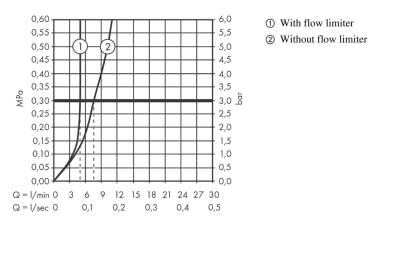

Flow chart
JPG / 0.1MB
Assembly instruction(Mixer)
Technical publication
PDF / 8MB
Service instruction(Cleaning Recommendation)
Technical publication
PDF / 0.1MB
BIM data (3DS)
3DS / 0.1MB
BIM data (AutoCAD 3D)
DWG / 0.1MB
BIM data (ArchiCAD)
GSM / 0.1MB
BIM data (IFC)
IFC / 0.1MB
BIM data (Sketchup)
SKP / 0.1MB
BIM data (Revit)
RFA / 1MB
BIM data (AutoCAD 2D)
DWG / 0.1MB
BIM data (3DS)
3DS / 0.1MB
BIM data (AutoCAD 3D)
DWG / 0.1MB
BIM data (ArchiCAD)
GSM / 0.1MB
BIM data (IFC)
IFC / 0.1MB
BIM data (AutoCAD 2D)
DWG / 0.1MB
BIM data (Revit)
FPX / 1MB
BIM data (Sketchup)
SKP / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D)
DWG / 0.1MB
BIM data (3DS)
3DS / 0.1MB
BIM data (AutoCAD 3D)
DWG / 0.1MB
BIM data (ArchiCAD)
GSM / 0.1MB
BIM data (IFC)
IFC / 0.1MB
BIM data (Sketchup)
SKP / 0.1MB
BIM data (Revit)
RFA / 1MB
BIM data (AutoCAD 2D)
DWG / 0.1MB
BIM data (3DS)
3DS / 0.1MB
BIM data (AutoCAD 3D)
DWG / 0.1MB
BIM data (ArchiCAD)
GSM / 0.1MB
BIM data (IFC)
IFC / 0.1MB
BIM data (AutoCAD 2D)
DWG / 0.1MB
BIM data (Revit)
FPX / 1MB
BIM data (Sketchup)
SKP / 0.1MB
Generous, intuitive and a big win on comfort: AXOR showers, taps and thermostats with this trademark extend your personal ComfortZone at the washbasin.
AXOR taps and showers with the EcoSmart technology use up to 60% less water than conventional products β without any loss of comfort. This means water and energy costs are reduced and valuable resources conserved.
ComfortZone
EcoSmart
