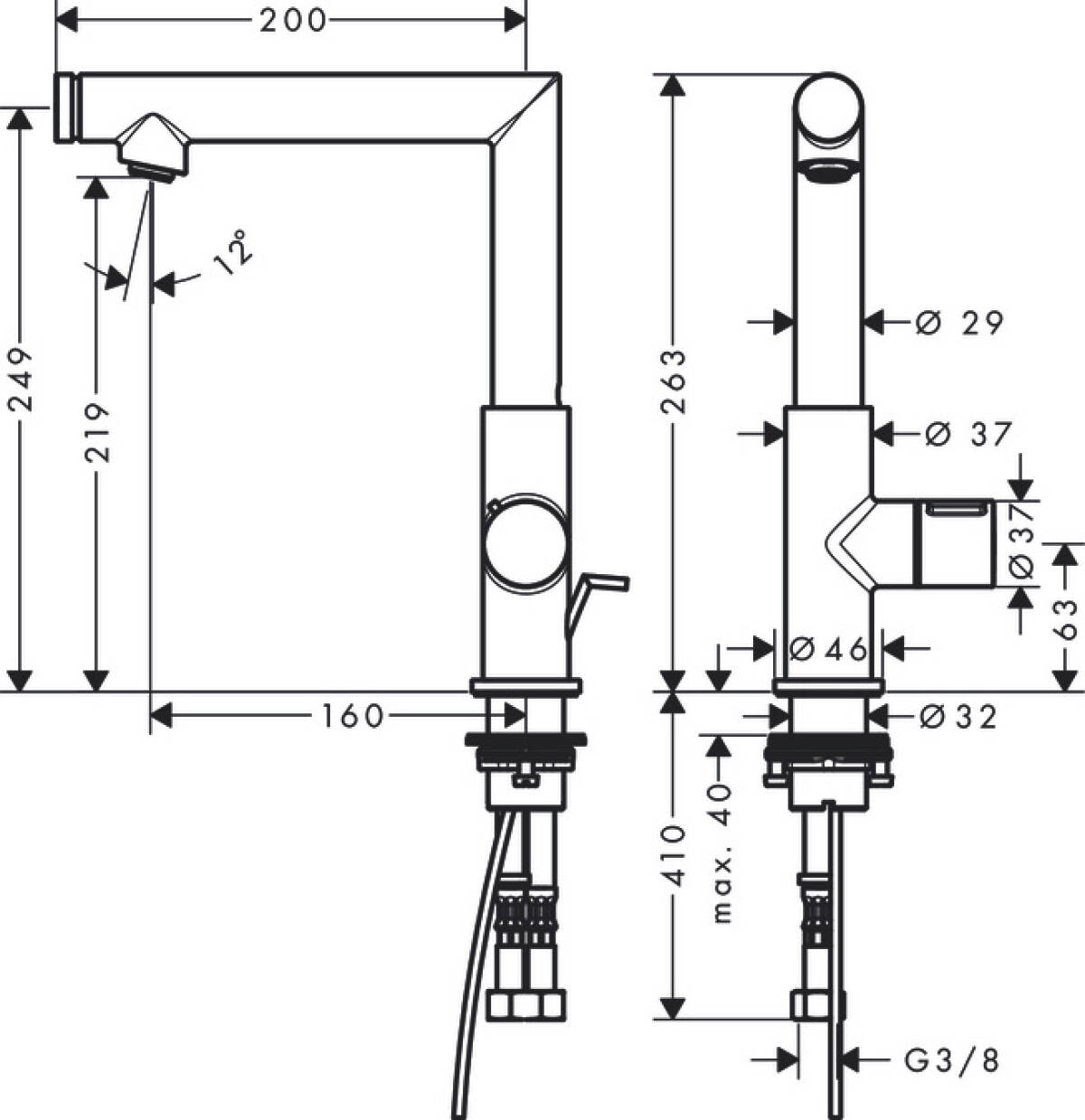

Scale drawing
JPG / 0.1MB
Menu
Your wish list is currently empty.
Add productsIllustration similar
consists of | Basin mixer, waste set |
---|---|
ComfortZone | 220 |
projection | 160 mm |
swivel range | 110° |
spray type | normal spray |
flow rate at 3 bar | 5 l/min |
cartridge | Select valve |
temperature limitation adjustable |
![]() |
separation of temperature control and open/close |
![]() |
suitable for continous flow water heaters |
![]() |
waste set | pop-up waste set G 1¼ |
connection type | G ⅜ connections |
connection dimension | DN15 |
Select |
![]() |
Test mark |
PA-IX 7308/IO ACS 15 ACC NY 170, valide jusqu'au 12.06.2020 JWWA C-501 STA 1374 SVGW 1712-6710 Agréé Belgaqua |
optional accessory
Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG
Planning data (2D)
DWG

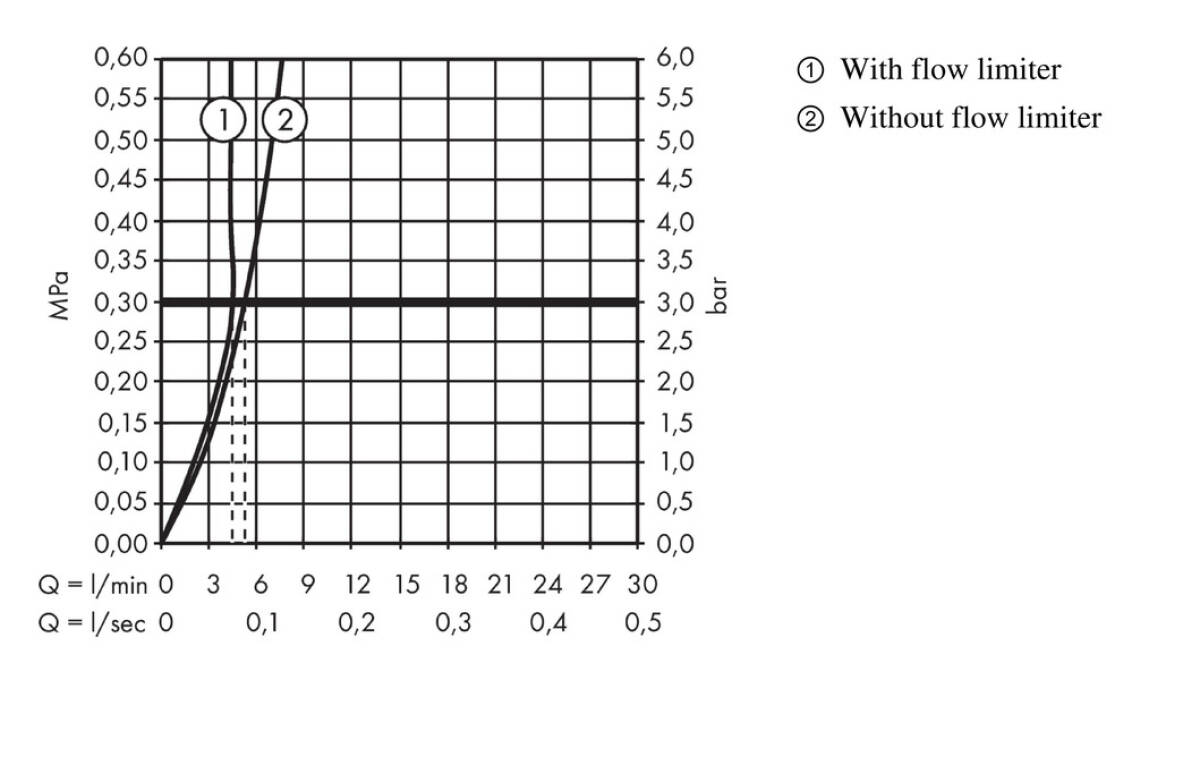

Flow chart
JPG / 0.1MB
Service instruction(Cleaning Recommendation)
Technical publication
PDF / 0.1MB
Assembly instruction(Mixer)
Technical publication
PDF / 5MB
BIM data (AutoCAD 3D)
DWG / 0.1MB
BIM data (3DS)
3DS / 0.1MB
BIM data (ArchiCAD)
GSM / 0.1MB
BIM data (IFC)
IFC / 0.1MB
BIM data (Sketchup)
SKP / 0.1MB
BIM data (Revit)
RFA / 0.1MB
BIM data (AutoCAD 2D)
DWG / 0.1MB
BIM data (Revit)
FPX
BIM data (IFC)
IFC
BIM data (ArchiCAD)
GSM
BIM data (AutoCAD 3D)
DWG
BIM data (3DS)
3DS
BIM data (AutoCAD 2D)
DWG
BIM data (Sketchup)
SKP
BIM data (AutoCAD 3D)
DWG / 0.1MB
BIM data (3DS)
3DS / 0.1MB
BIM data (ArchiCAD)
GSM / 0.1MB
BIM data (IFC)
IFC / 0.1MB
BIM data (Sketchup)
SKP / 0.1MB
BIM data (Revit)
RFA / 0.1MB
BIM data (AutoCAD 2D)
DWG / 0.1MB
BIM data (Revit)
FPX
BIM data (IFC)
IFC
BIM data (ArchiCAD)
GSM
BIM data (AutoCAD 3D)
DWG
BIM data (3DS)
3DS
BIM data (AutoCAD 2D)
DWG
BIM data (Sketchup)
SKP
With this shower technology, water is mixed with air - this enrichment makes the water droplets plumper, lighter and softer. And: water is used more efficiently.
Generous, intuitive and a big win on comfort: AXOR showers, taps and thermostats with this trademark extend your personal ComfortZone at the washbasin.
AXOR taps and showers with the EcoSmart technology use up to 60% less water than conventional products – without any loss of comfort. This means water and energy costs are reduced and valuable resources conserved.
Who really enjoys cleaning? With the QuickClean function, dirt and limescale deposits from taps and showers are rapidly removed thanks to flexible silicon knobs on the spray disc.
Soft water droplets or an invigorating massage? Select your personal spray type with just one push of the button for even more fun in the shower.
