AXOR INT: AXOR Uno, 3-hole basin mixer 160 with loop handles and pop-up waste set, 38054820

Product features

consists of	3-hole basin mixer, waste set
ComfortZone	160
projection	173 mm
swivel range	110°
spray type	normal spray
flow rate at 3 bar	5 l/min
cartridge	ceramic valves hot/ cold 90°
temperature limitation adjustable
suitable for continous flow water heaters
waste set	pop-up waste set G 1¼
connection type	G ⅜ connections
connection dimension	DN15
Test mark	WELS SGP 1 Tick BST-2017/022512 P-IX 7292/IO STA 1426 ACS 18 ACC NY 145, valide jusqu'au 17.05.2023 WRAS 1811003 DVGW DW6501CS0553 SVGW 1712-6708

optional accessory

Hose extension set for 3-hole basin mixer

Design trap set Flowstar

Certificates

EnergieEtikette A - 2011
ACS

ACS - 2015
WRAS (Water Regulations Advisory Scheme)

WRAS (Water Regulations Advisory Scheme) - 2012
STA Swedish Type Approval

SE STA - 2017
SVGW - 2009

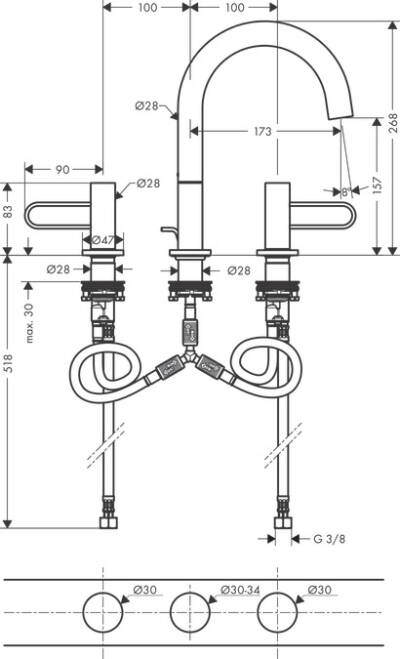

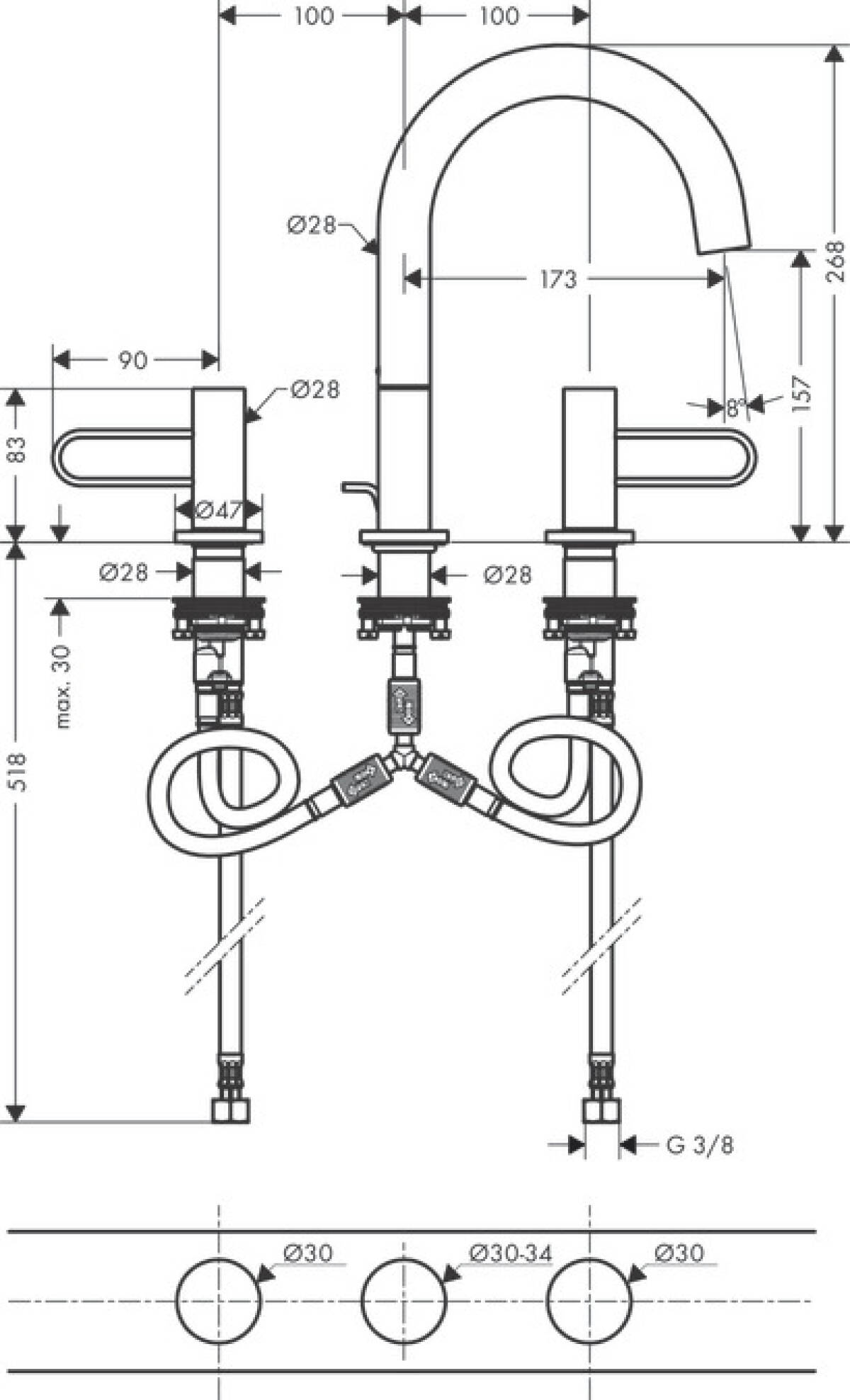

Scale drawing

JPG / 0.1MB

Technologies

AirPower
ComfortZone
EcoSmart
QuickClean

AirPower: More pleasure, more efficiency

With this shower technology, water is mixed with air - this enrichment makes the water droplets plumper, lighter and softer. And: water is used more efficiently.

ComfortZone: Excellent user comfort

Generous, intuitive and a big win on comfort: AXOR showers, taps and thermostats with this trademark extend your personal ComfortZone at the washbasin.

EcoSmart: Save water, protect the climate

AXOR taps and showers with the EcoSmart technology use up to 60% less water than conventional products – without any loss of comfort. This means water and energy costs are reduced and valuable resources conserved.

QuickClean: Fast anti-limescale function

Who really enjoys cleaning? With the QuickClean function, dirt and limescale deposits from taps and showers are rapidly removed thanks to flexible silicon knobs on the spray disc.

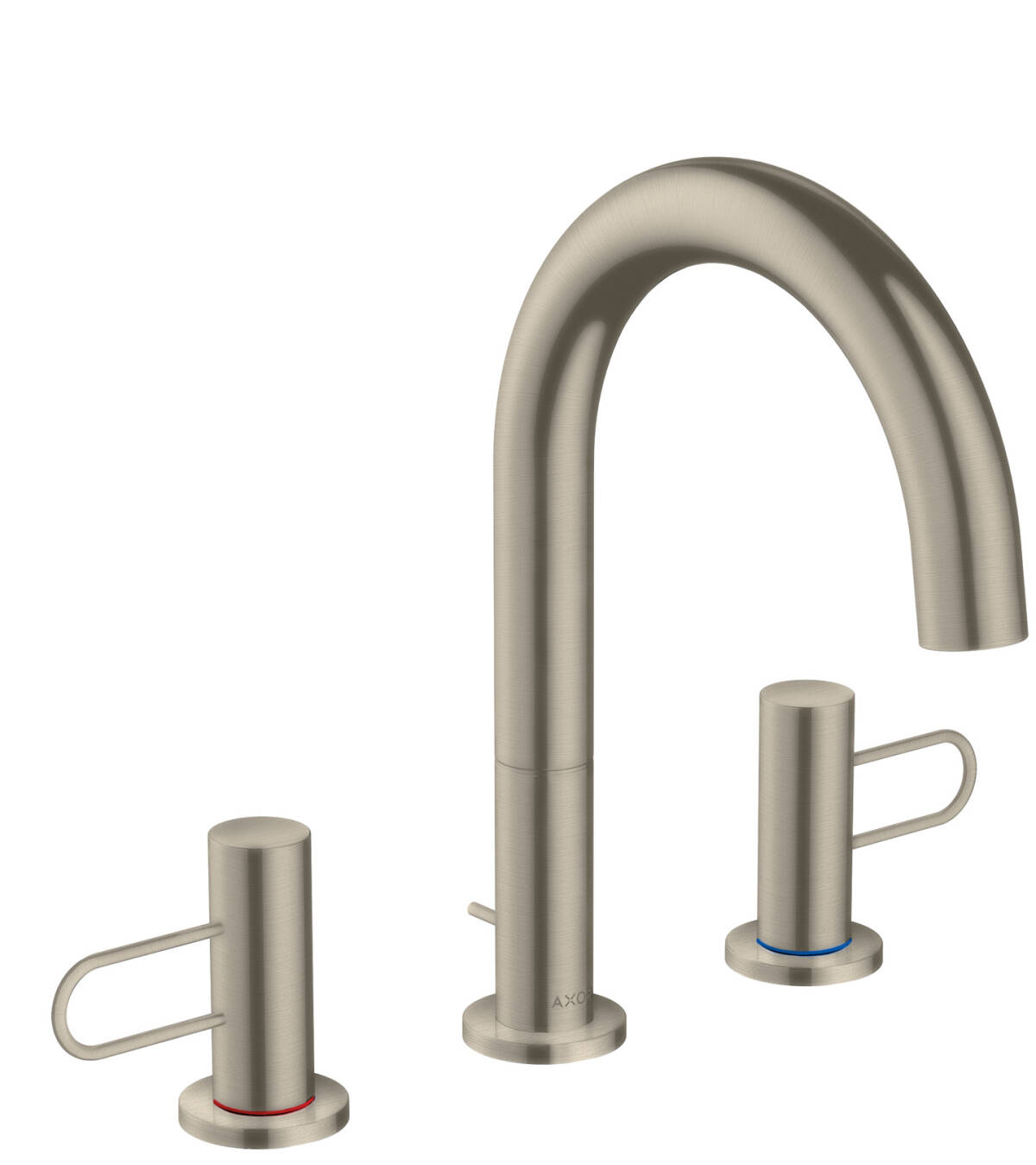

AXOR Uno 3-hole basin mixer 160 with loop handles and pop-up waste set
