Variant

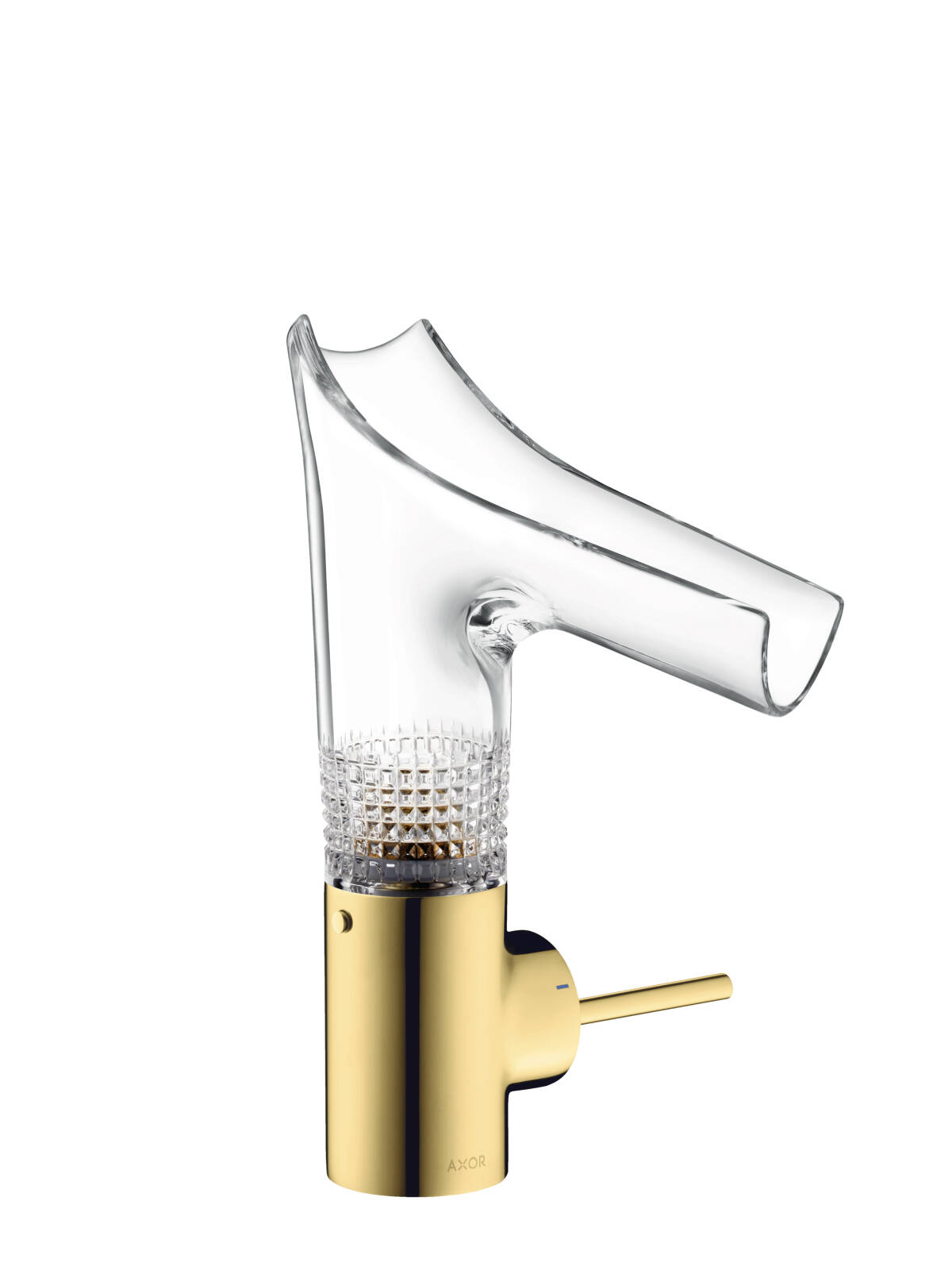

Single lever basin mixer 140 with glass spout and waste set - diamond cut
Surface finish
Polished Gold Optic
Art. no.: 12122990
Select variant
| consists of | single lever basin mixer, waste set |
|---|---|
| ComfortZone | 140 |
| projection | 125 mm |
| swivel range | adjustable in 2 steps to 120° or 145° |
| spray type | laminar spray |
| with additional value | EasyClick connection between body and spout with SafetyStop-function, Spout is dishwasher safe |
| material spout | crystal glass |
| flow rate at 3 bar | 4 l/min |
| cartridge | joystick ceramic cartridge |
| temperature limitation adjustable |
 |
| for cold water connection |
|
| waste set | non-closing waste set |
| connection type | G ⅜ connections |
| connection dimension | DN15 |
| variable handle position | handle can be positioned on the right or left |
| additional comment | handle position on the side: bottom-side at the base body (not suitable for wash bowls) |
| Select |
|
| CoolStart |
|
| Test mark |
ETA VA 1.42/20487 ACS 14 ACC NY 307, valide jusqu'au 10.09.2019 STA 1393 ACS 19 ACC NY 188, valide jusqu'au 13.06.2024 Agréé Belgaqua |
Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 2MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB
Flow chart
JPG / 0.1MB
Service instruction(Cleaning Recommendation)
Technical publication
PDF / 0.1MB
Assembly instruction(Mixer)
Technical publication
PDF / 8MB
Service instruction(Cartridge)
Technical publication
PDF / 8MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 2MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB
Generous, intuitive and a big win on comfort: AXOR showers, taps and thermostats with this trademark extend your personal ComfortZone at the washbasin.
AXOR taps and showers with the EcoSmart technology use up to 60% less water than conventional products – without any loss of comfort. This means water and energy costs are reduced and valuable resources conserved.
