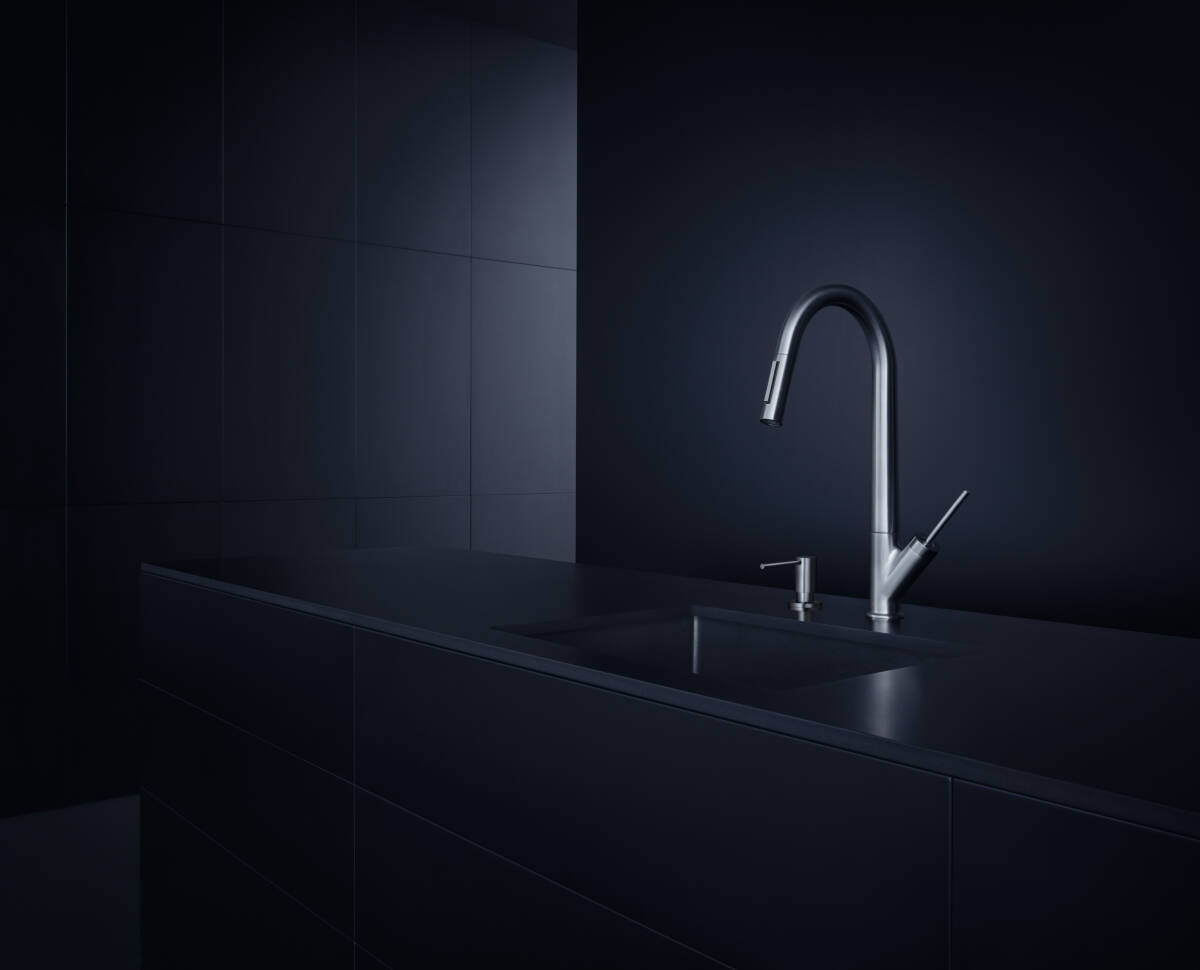

AXOR - Article kitchen ambience
JPG / 0.1MB
Menu
Your wish list is currently empty.
Add productsMenu
Your wish list is currently empty.
Add products
| ComfortZone | 270 |
|---|---|
| swivel range | adjustable in 2 steps to 110° or 150° |
| telescope function |
 |
| variable handle position | handle can be positioned on the right or left |
| spray type | normal and spray jet |
| lockable shower spray | , spray returns through pressing spray diverter |
| magnetic pull-out shower support |
 |
| quick-connect hose |
|
| device shut-off valve |
|
| connection dimension | DN15 |
| flow rate | 9.5 l/min |
| cartridge | joystick ceramic cartridge |
| connection type | G ⅜ connections |
| non-return valve |
|
| suitable for continous flow water heaters |
|
| Test mark |
P-IX 19702/IO ETA VA 1.42/20144 SINTEF 1811 ACS 14 ACC LY 356 P-IX 19702/IOO ACS 14 ACC LY 356, valide jusqu'au 11.06.2019 KCW-2012-0427 WELS SGP 1 Tick SKT/BT-2014/015904 STA 1375 JWWA C-462 KCW-2018-0161/2012-0427 SVGW 9708-3809 Korean Eco Label Cert./No.16142 KCW-2012-0427_KM ACS 19 ACC LY 482, valide jusqu'au 11.06.2024 |
optional accessory
Ambience images

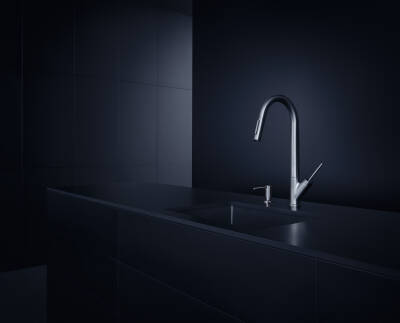

AXOR - Article kitchen ambience
JPG / 0.1MB

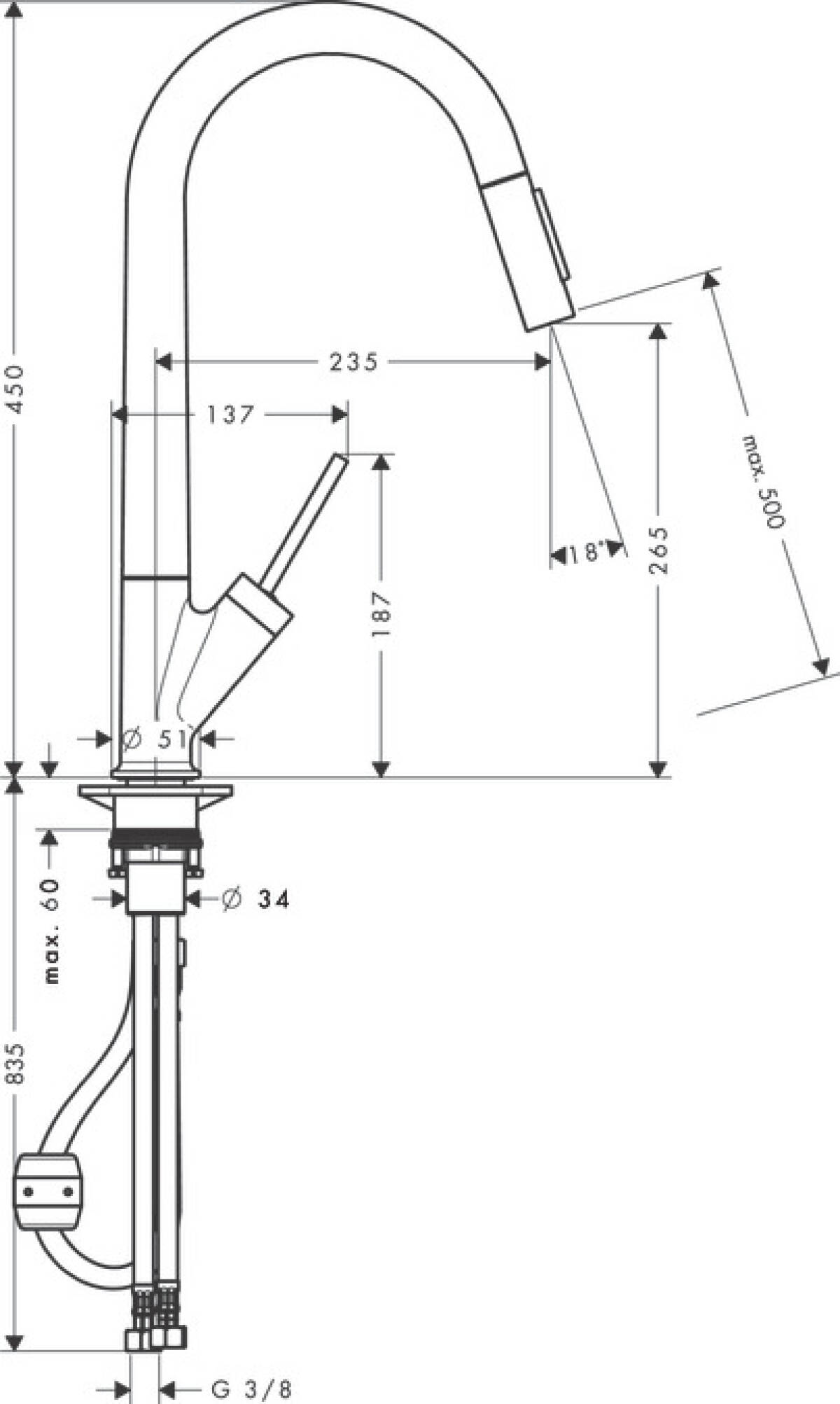

Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (undefined)
DWG / 1MB
Planning data (undefined)
DXF / 17MB

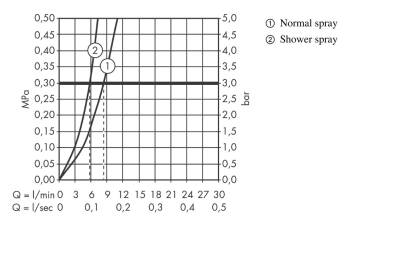

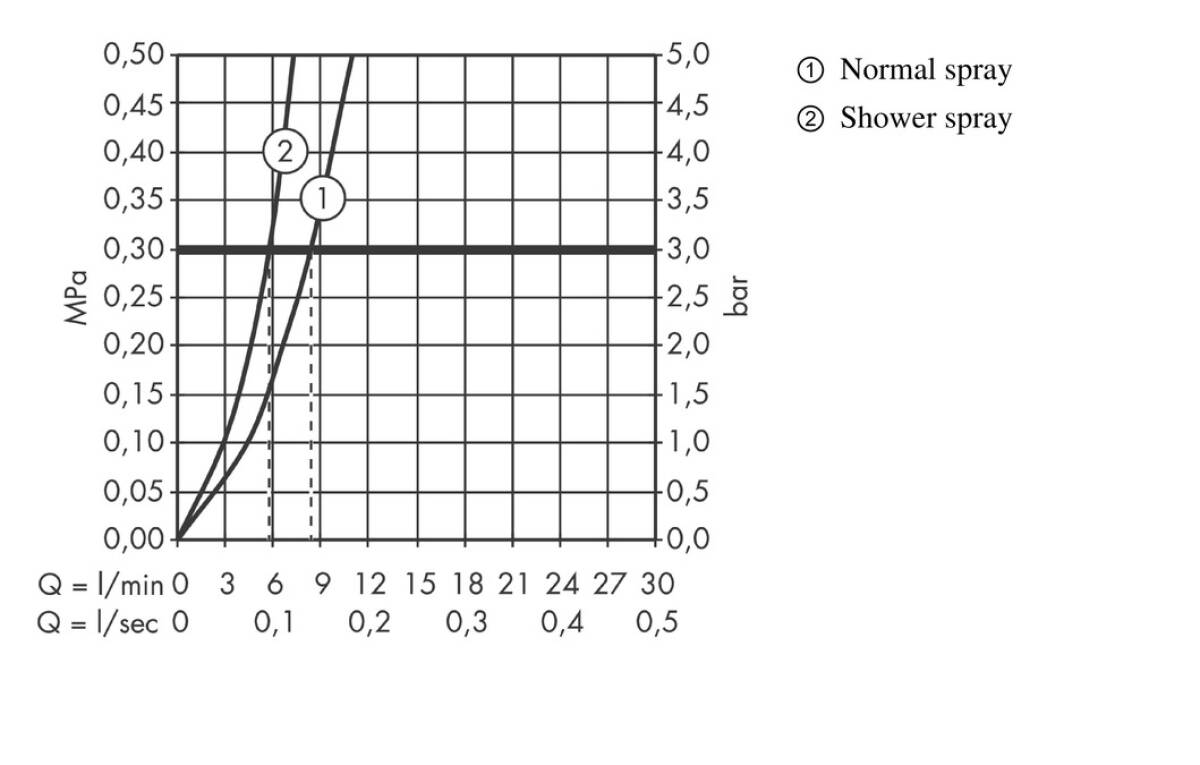

Flow chart
JPG / 0.1MB
Service instruction(Cleaning Recommendation)
Technical publication
PDF / 0.1MB
Assembly instruction(Mixer)
Technical publication
PDF / 2MB
Service instruction(Cartridge)
Technical publication
PDF / 8MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (undefined)
DWG / 1MB
Planning data (undefined)
DXF / 17MB
Generous, intuitive and a big win on comfort: AXOR showers, taps and thermostats with this trademark extend your personal ComfortZone at the washbasin.
Who really enjoys cleaning? With the QuickClean function, dirt and limescale deposits from taps and showers are rapidly removed thanks to flexible silicon knobs on the spray disc.
ComfortZone
QuickClean
