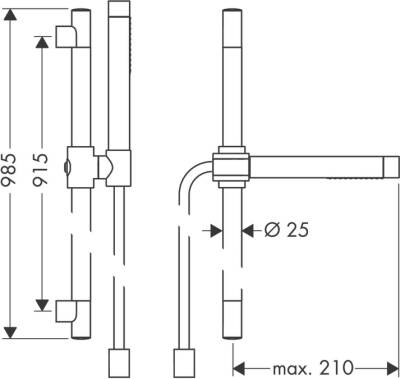

Scale drawing
JPG / 0.1MB
Menu
Your wish list is currently empty.
Add products

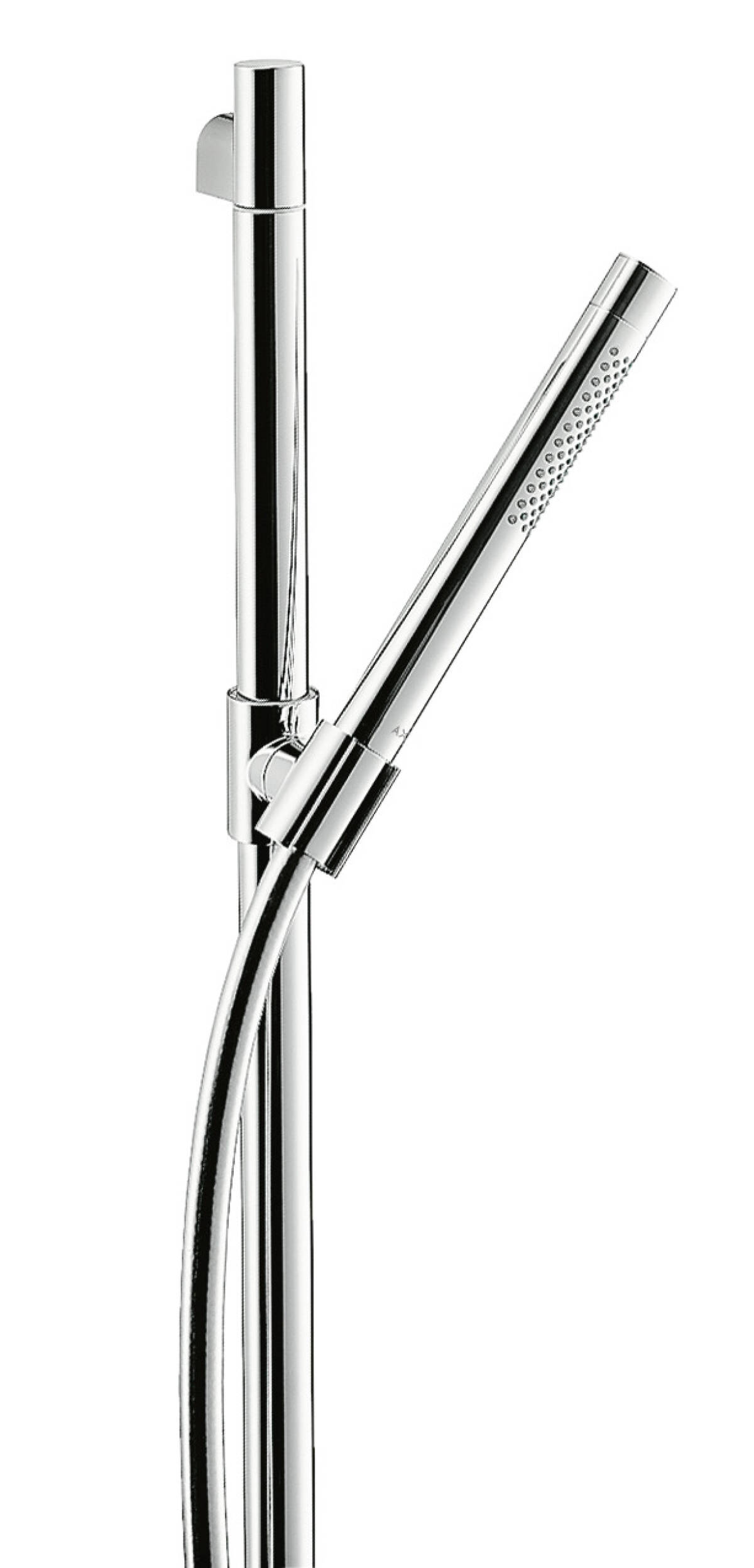

| consists of | baton hand shower, shower bar, shower hose, slider |
|---|---|
| spray type | Rain, Soft spray |
| spray type alternation | spray type adjustment by turning spray disc |
| shower head size | 70 mm |
| swivel joint | pivot connectors prevent hose from tangling |
| cylindrical nuts on both ends |
![]() |
| maximum flow rate at 0.3 MPa | 16 l/min |
| material wall supports | wall supports of plastic |
| Test mark |
ACS 13 ACC NY 145, valide jusqu'au 06.05.2018 |
Consisting of

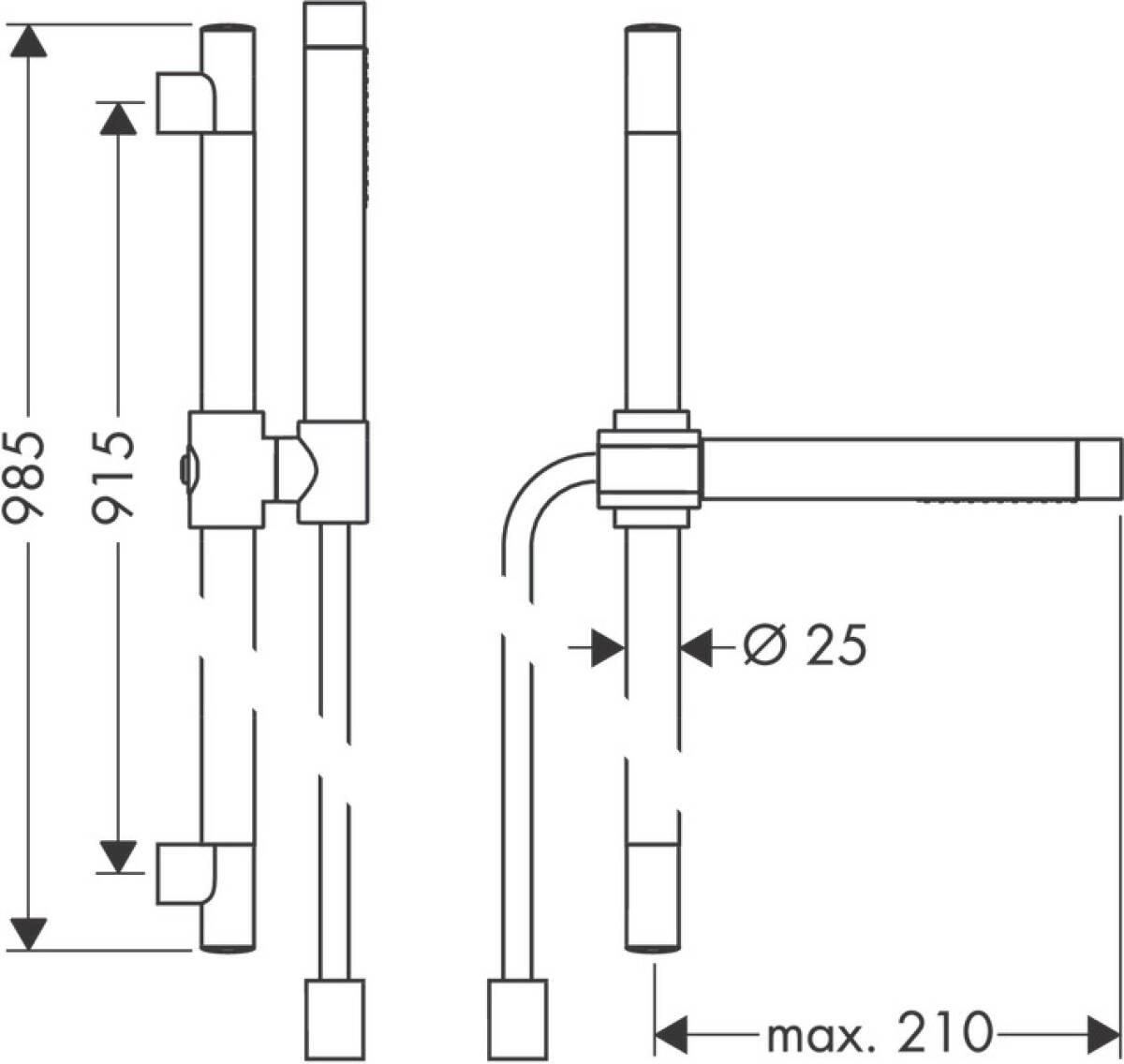

Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 0.1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB
Flow chart
JPG / 0.1MB
Service instruction(Slider)
Technical publication
PDF / 0.1MB
Service instruction(Slider)
Technical publication
PDF / 0.1MB
Assembly instruction(Shower Set)
Technical publication
PDF / 3MB
Service instruction(Tile-matching-disk)
Technical publication
PDF / 0.1MB
Service instruction(Cleaning Recommendation)
Technical publication
PDF / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 0.1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB
Service instruction(Slider)
Technical publication
PDF / 0.1MB
Service instruction(Slider)
Technical publication
PDF / 0.1MB
Assembly instruction(Shower Set)
Technical publication
PDF / 3MB
Service instruction(Tile-matching-disk)
Technical publication
PDF / 0.1MB
Service instruction(Cleaning Recommendation)
Technical publication
PDF / 0.1MB
Who really enjoys cleaning? With the QuickClean function, dirt and limescale deposits from taps and showers are rapidly removed thanks to flexible silicon knobs on the spray disc.
