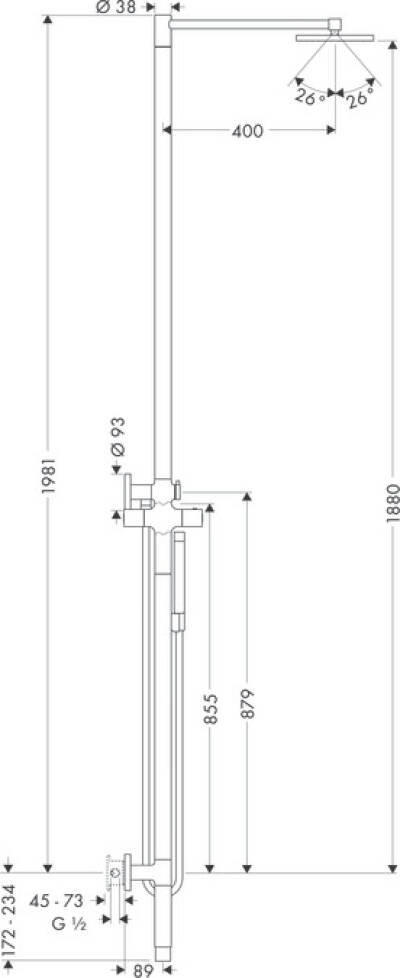

Scale drawing
JPG / 0.1MB
Menu
Your wish list is currently empty.
Add productsMenu
Your wish list is currently empty.
Add products
| consists of | shower column, plate overhead shower, baton hand shower, shower hose |
|---|---|
| shower head size | 240 mm |
| overhead shower | AXOR Starck |
| flow rate overhead shower | 13.6 l/min |
| cartridge | thermostat cartridge |
| operating outlet | outlets controlled via turning handle |
| protection against scalding | at 38° C |
| hot water restriction |
 |
| flow rate hand shower | 13.4 l/min |
| suitable for continuous flow water heaters |
|
| connection dimension | DN15 |
| Test mark |
WRAS 1009021 ACS 09 ACC NY 228 ACS 09 ACC NY 228, valide jusqu'au 02.10.2014 STA 1517 |
Consisting of
required accessory
optional accessory
Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB

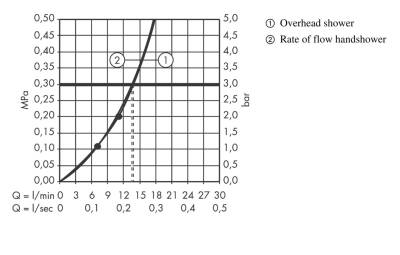

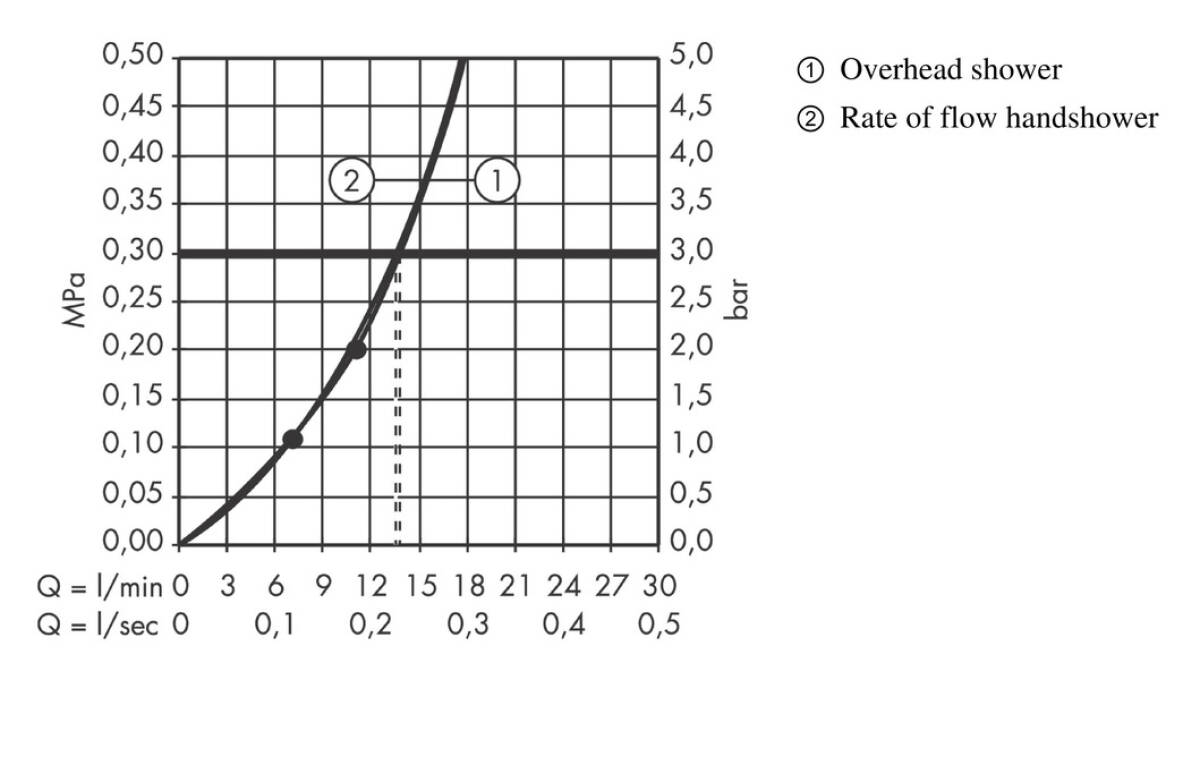

Flow chart
