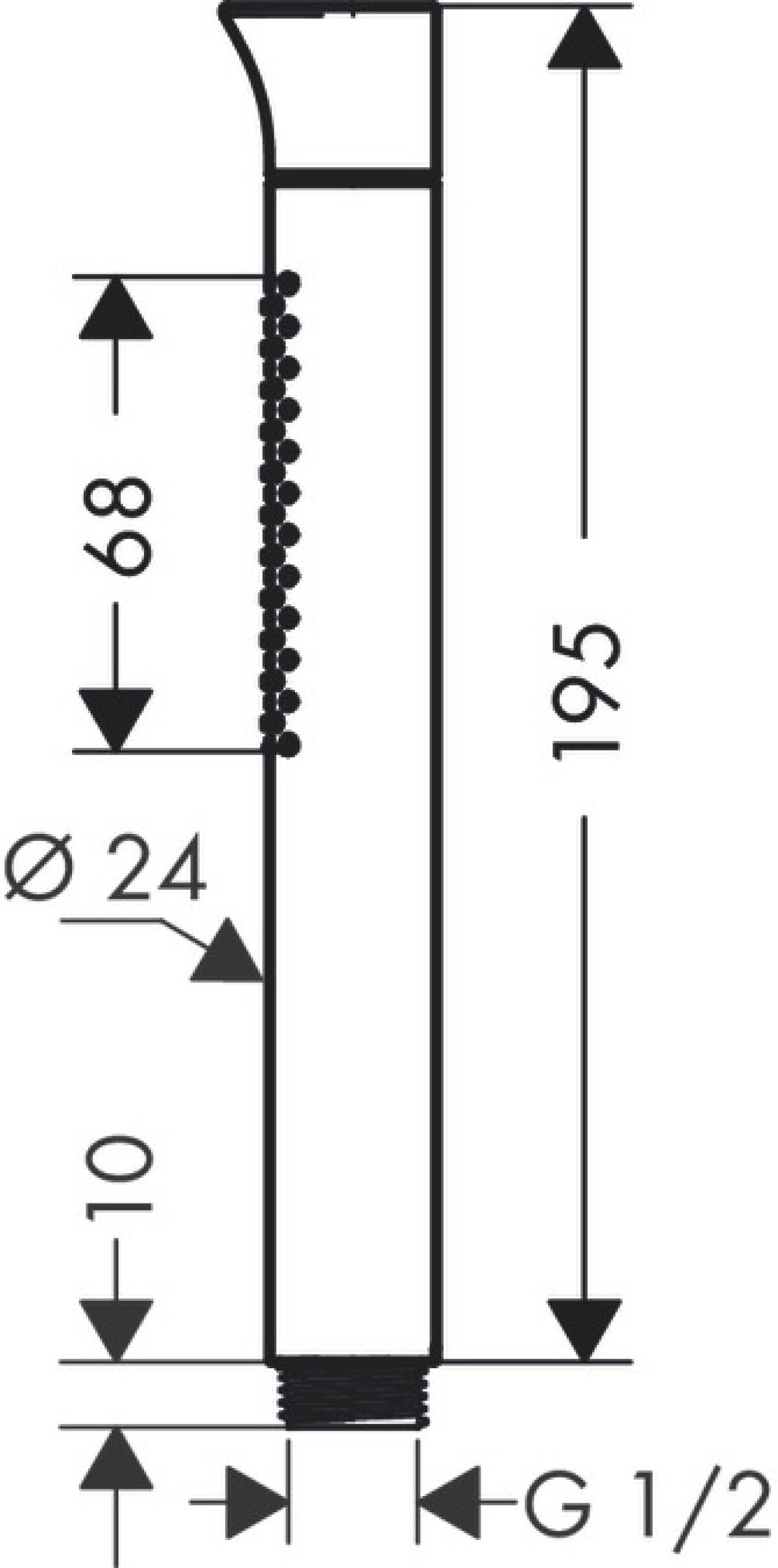

Scale drawing
JPG / 0.1MB
Menu
Your wish list is currently empty.
Add productsMenu
Your wish list is currently empty.
Add products

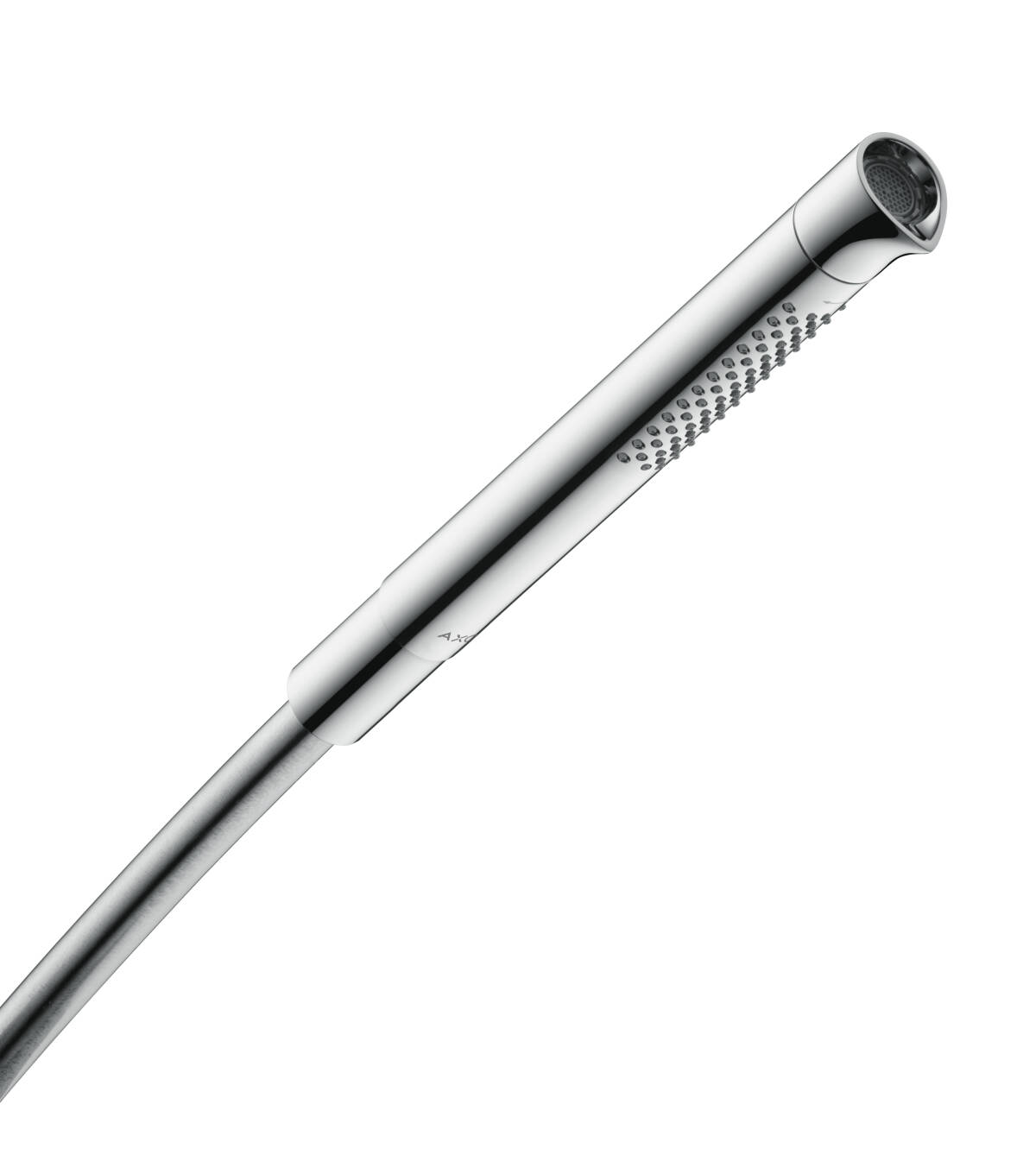

| spray type alternation | spray type adjustment by turning spray disc |
|---|---|
| spray type | Rain, Mono |
| maximum flow rate at 3 bar | 13 l/min |
| material | metal cover |
| dirt filter |
 |
| connection thread | G ½ |
| connection dimension | DN15 |
| suitable for continous flow water heaters |
|
| suitable for bath or rim-mounted mixers | not suitable for rim-/ tile-mounted mixers |
| Test mark |
ACS 14 ACC NY 328, valide jusqu'au 23.10.2019 Kiwa K6053_Showers WRAS 1805023 REG 4 170637 P-IX 16923/IS SVGW 0506-4976 |
Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB
Introduction brochure
Brand publication
PDF / 2MB

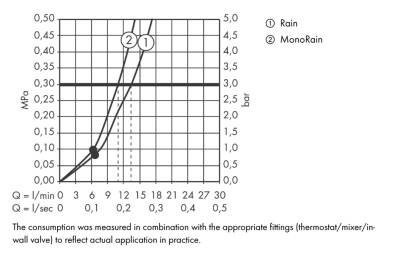

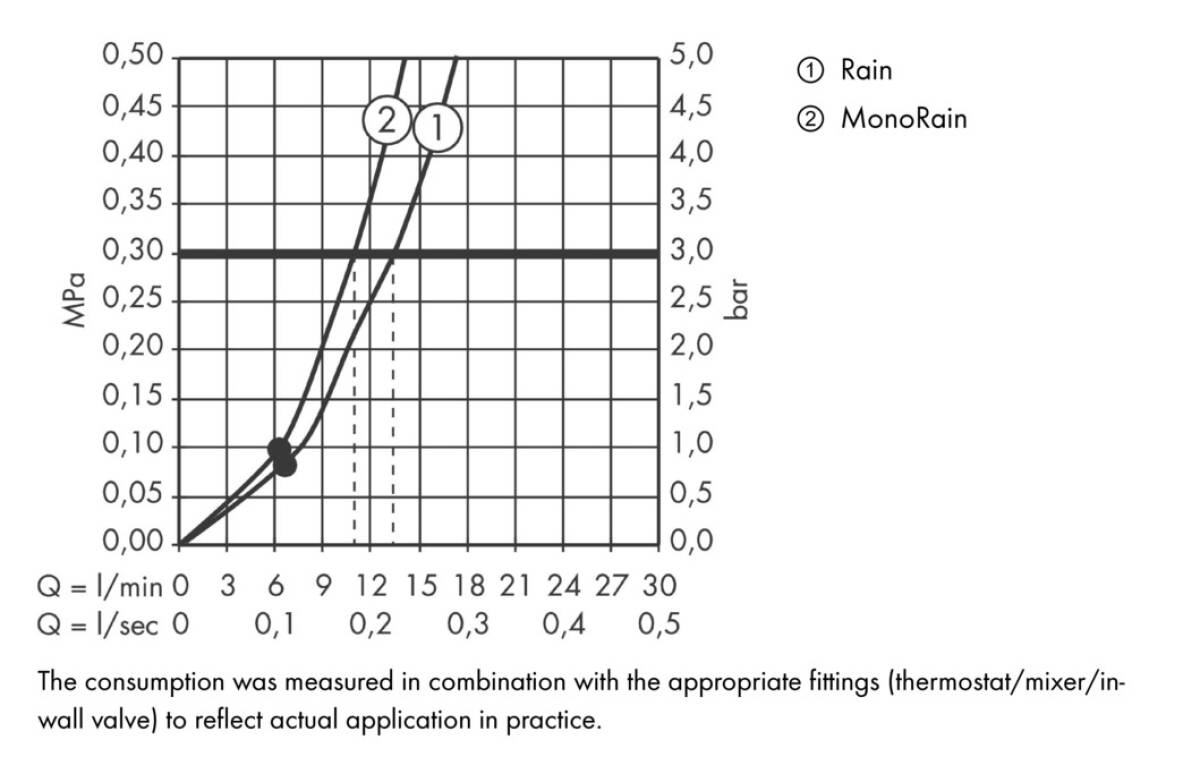

Flow chart
