Variant

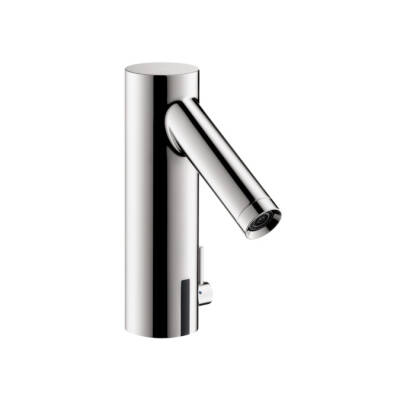

Electronic basin mixer with temperature control battery-operated
Surface finish
Chrome
Art. no.: 10101000
Select variant
| ComfortZone | 90 |
|---|---|
| projection | 103 mm |
| spray type | normal spray |
| flow rate at 3 bar | 5 l/min |
| temperature adjustment | temperature adjustable via mixer lever on the side |
| suitable for continous flow water heaters |
 |
| type of control | infrared sensor technology |
| automatic environment adjustment |
|
| operating range | adjustable optical range of infrared sensor (2 settings) |
| power supply | battery operation 6 V (Lithium battery, lifetime approx. 2 years, battery included in scope of delivery) |
| hygiene rinse |
|
| permanent rinse |
|
| manual water flow stop |
|
| additional comment | performance may be impaired if the sensor is obscured by the design of the wash basin, or when the wash basin is oversized and the distance between sensor and the wash basin edge is larger than 75 mm, functional restriction due to too large distance |
| connection dimension | DN15 |
| TÜV certified |
|
| dirt filter |
|
| Test mark |
ACS 08 ACC NY 244 ETA VA 1.42/18020 P-IX 18741/IA WRAS 1207021 TÜV certified TUEV B 11 10 14237 061 ETA VA1.42/18020 TÜV B 11 10 14237 061 KCW-2012-0427 SINTEF 1823 WELS SGP 1 Tick BST-2015/018781 STA 1399 SINTEF 1746 18 ACC NY 332, valide jusqu'au 13.09.2023 ACS 18 ACC NY 332, valide jusqu'au 13.09.2023 KCW-2018-0161/2012-0427 KCW-2018-0161_WTM |
optional accessory
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 0.1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB

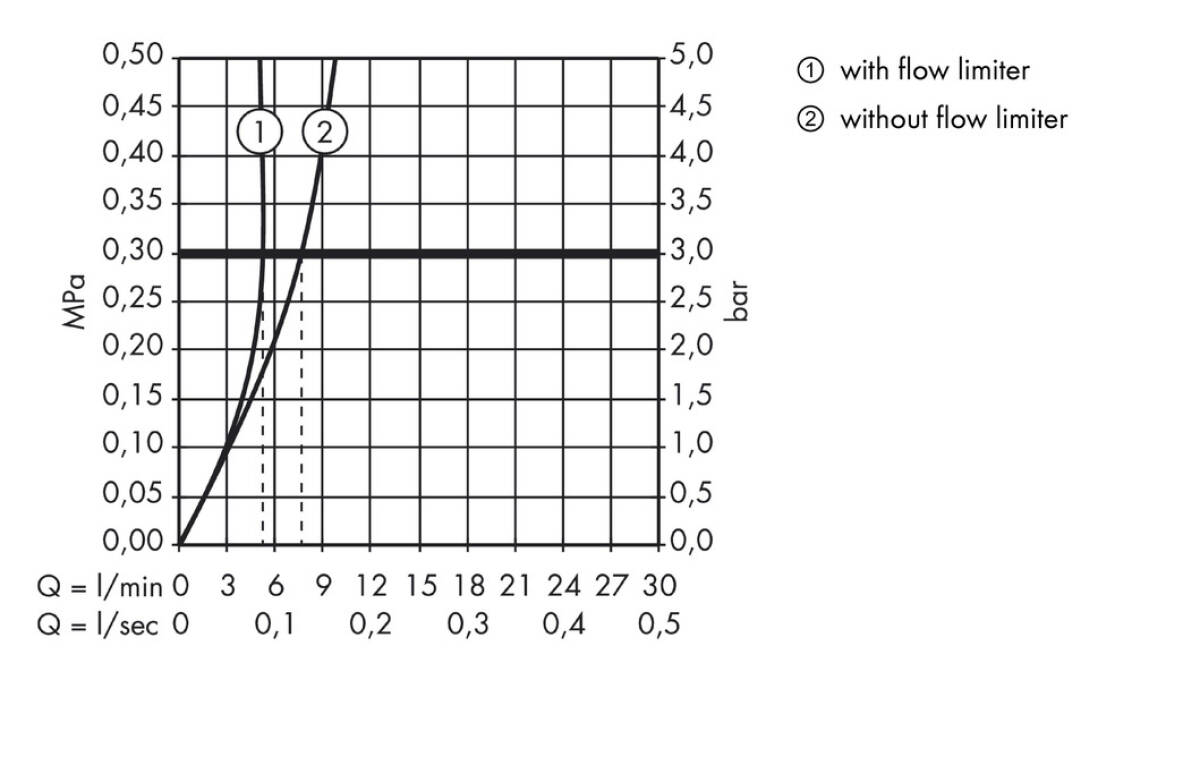

Flow chart
JPG / 0.1MB
Service instruction(Aerator)
Technical publication
PDF / 0.1MB
Assembly instruction(Mixer)
Technical publication
PDF / 4MB
Service instruction(Fixing set)
Technical publication
PDF / 0.1MB
Service instruction(battery)
Technical publication
PDF / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 0.1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB
With this shower technology, water is mixed with air - this enrichment makes the water droplets plumper, lighter and softer. And: water is used more efficiently.
Generous, intuitive and a big win on comfort: AXOR showers, taps and thermostats with this trademark extend your personal ComfortZone at the washbasin.
AXOR taps and showers with the EcoSmart technology use up to 60% less water than conventional products – without any loss of comfort. This means water and energy costs are reduced and valuable resources conserved.
Who really enjoys cleaning? With the QuickClean function, dirt and limescale deposits from taps and showers are rapidly removed thanks to flexible silicon knobs on the spray disc.
AirPower
ComfortZone
EcoSmart
QuickClean
