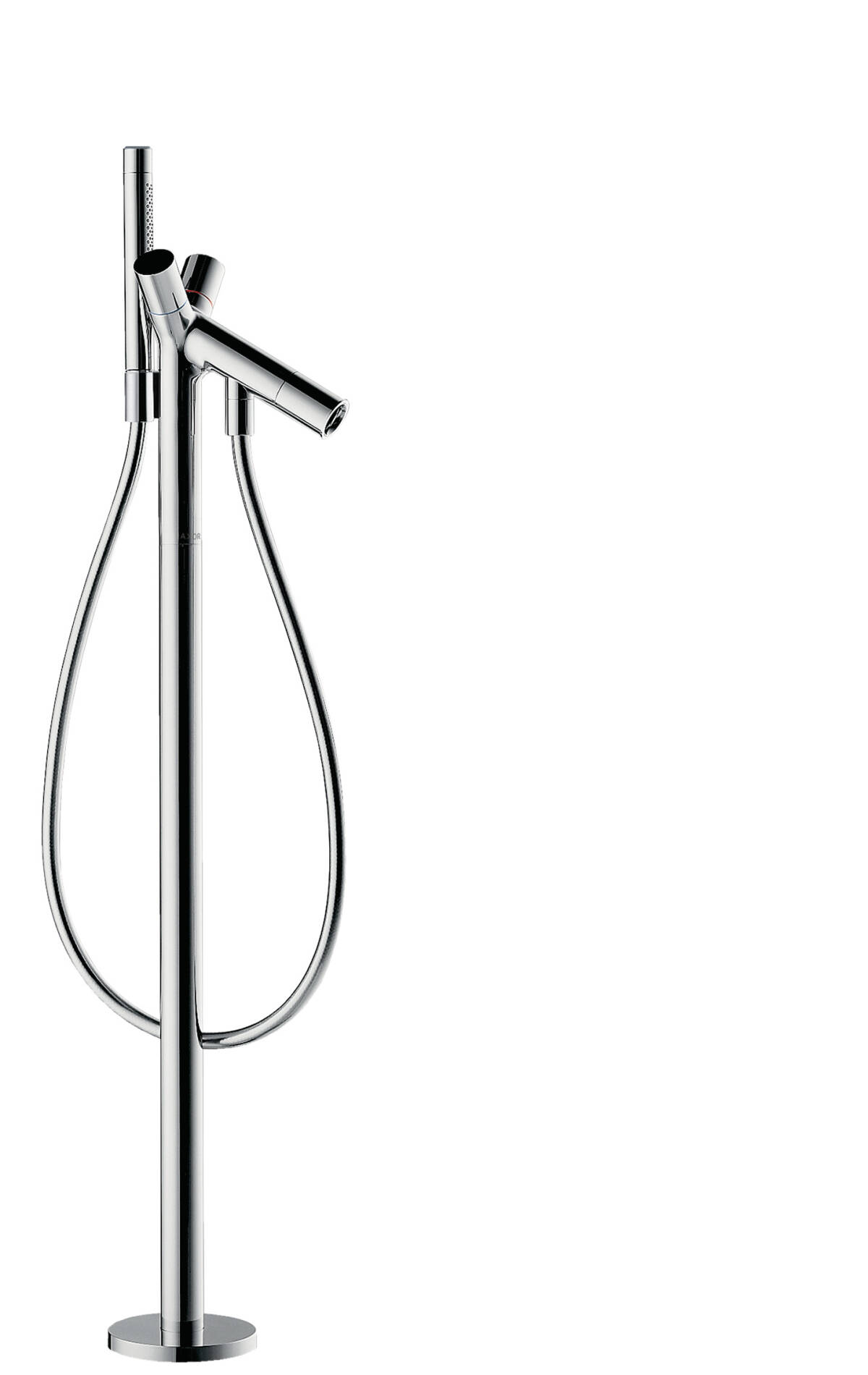

| consists of | 2-handle bath mixer floor standing, baton hand shower, shower hose, shower holder |
|---|---|
| projection | 140 mm |
| connection type | basic set |
| spray type mixer | normal spray |
| spray type hand shower | Rain, Mono |
| flow rate at 3 bar | 22 l/min |
| cartridge | ceramic valves hot/ cold 180° |
| temperature limitation adjustable |
 |
| return function |
 |
| non-return valve |
|
| suitable for continous flow water heaters |
|
| connection dimension | DN15 |
| Test mark |
ETA VA 1.42/19030 WRAS 0507109 NSF-WRc C150539 WRAS 1512016 JWWA C-279 ACS 18 ACC LY 446, valide jusqu'au 11.07.2023 Agréé Belgaqua |
Consisting of
required accessory

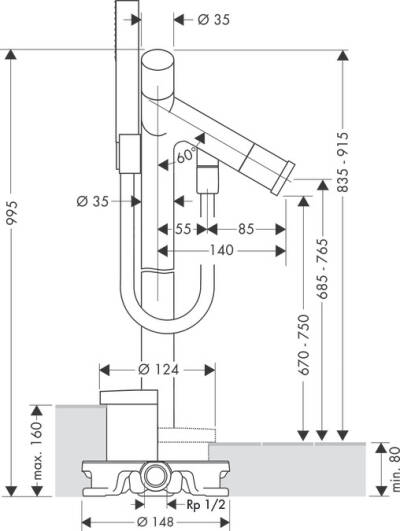

Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB

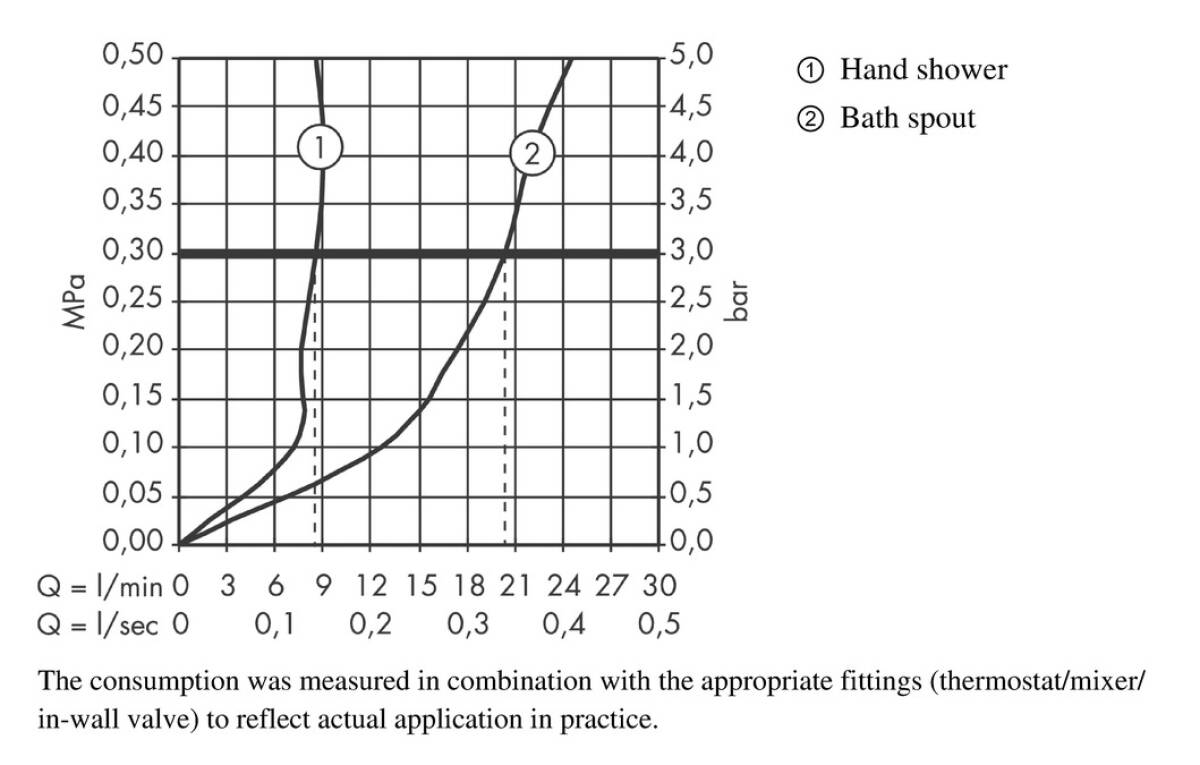

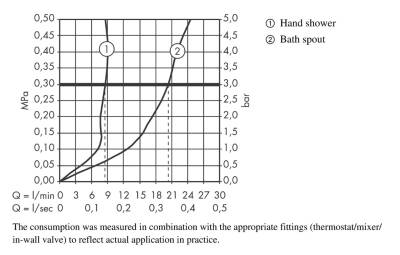

Flow chart
JPG / 0.1MB
Service instruction(Diverter)
Technical publication
PDF / 0.1MB
Service instruction(Back flow preventer)
Technical publication
PDF / 0.1MB
Assembly instruction
Technical publication
PDF / 2MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB
With this shower technology, water is mixed with air - this enrichment makes the water droplets plumper, lighter and softer. And: water is used more efficiently.
AirPower
