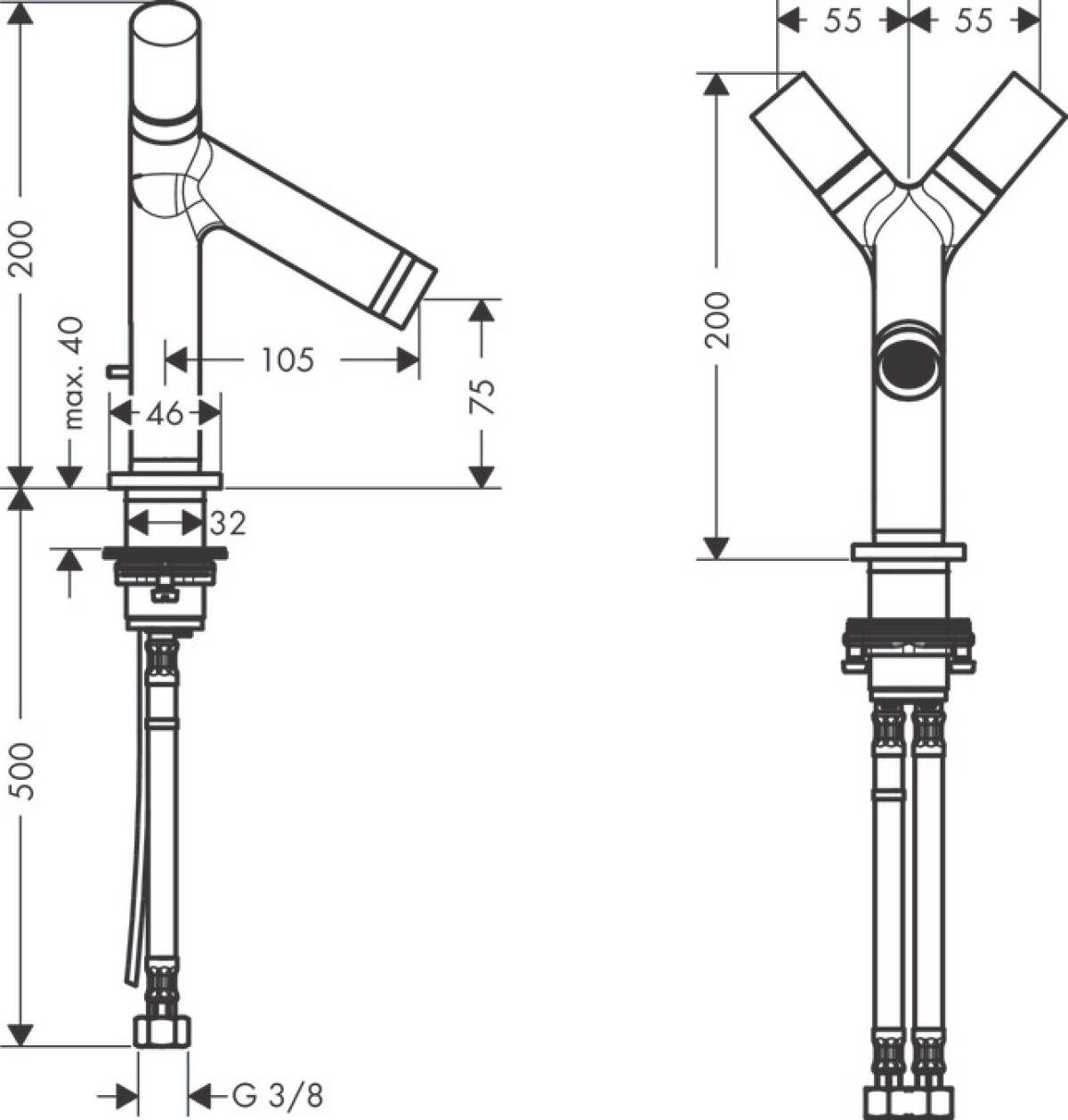

Scale drawing
JPG / 0.1MB
Menu
Your wish list is currently empty.
Add productsMenu
Your wish list is currently empty.
Add products

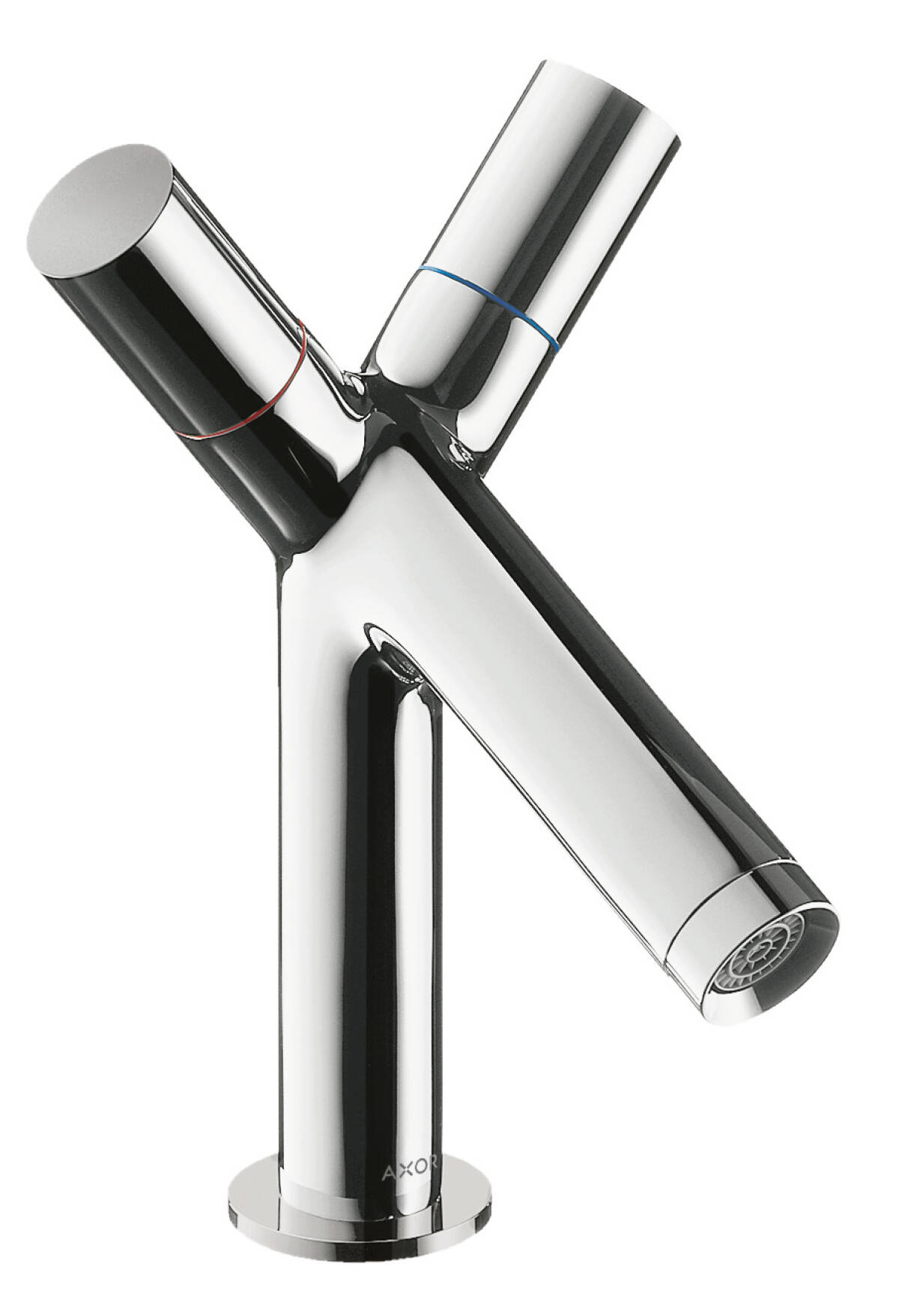

| consists of | 2-handle basin mixer, waste set |
|---|---|
| ComfortZone | 80 |
| projection | 105 mm |
| spray type | normal spray |
| flow rate at 3 bar | 5 l/min |
| cartridge | ceramic valves hot/ cold 180° |
| temperature limitation adjustable |
 |
| suitable for continous flow water heaters |
 |
| waste set | pop-up waste set G 1¼ |
| connection dimension | DN15 |
| Test mark |
ETA VA 1.42/18750 WRAS 1006012 P-IX 8823/IA ACS 14 ACC NY 363, valide jusqu'au 20.10.2019 SINTEF 1422 ACS 08 ACC LY 259 Kiwa UK 1508718 ACS 14 ACC NY 363, valide jusqu'au 00.00.0000 KCW-2012-0427 ACS 14 ACC NY 363, valide jusqu'au 30.10.2019 WELS SGP 1 Tick BST-2010/005556 JWWA C-501 STA 1424 KCW-2018-0161/2012-0427 KCW-2018-0161_WTM |
optional accessory
Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 0.1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB

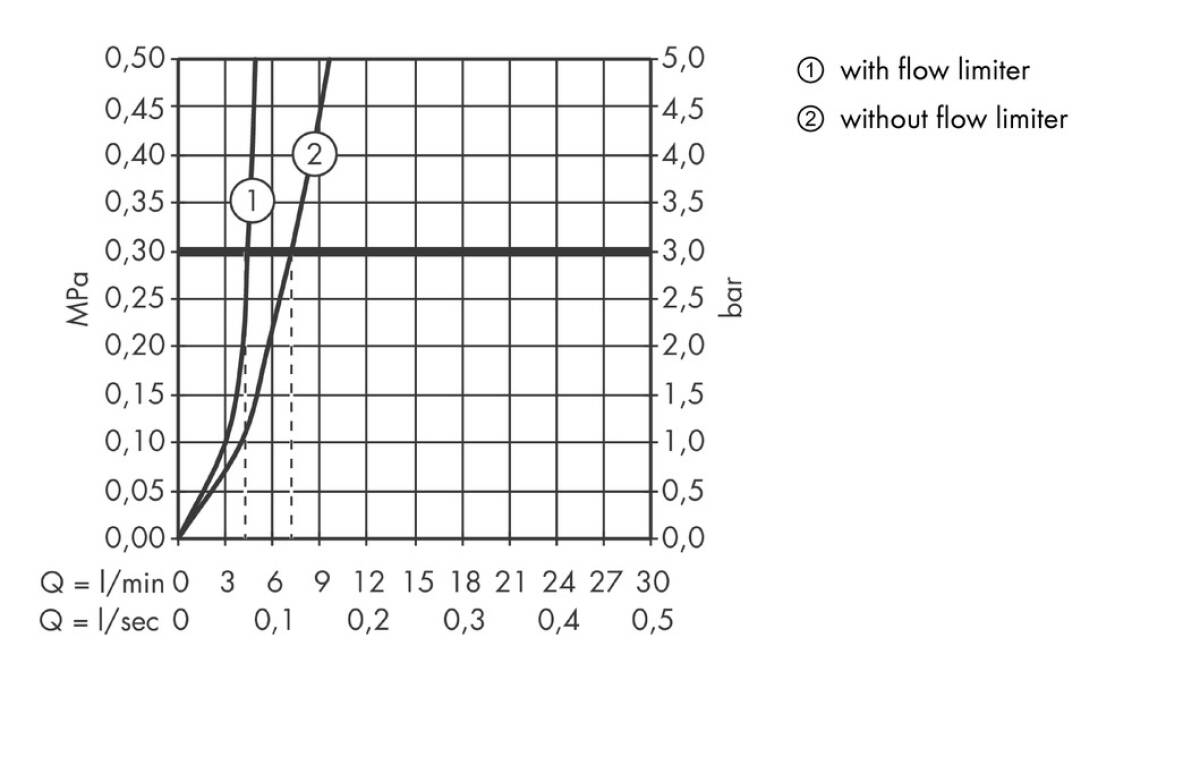

Flow chart
JPG / 0.1MB
Service instruction(Fixing set)
Technical publication
PDF / 0.1MB
Assembly instruction
Technical publication
PDF / 2MB
Service instruction(Handle)
Technical publication
PDF / 0.1MB
Service instruction(Pull rod)
Technical publication
PDF / 0.1MB
Service instruction(Cleaning Recommendation)
Technical publication
PDF / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 0.1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB
Service instruction(Fixing set)
Technical publication
PDF / 0.1MB
Assembly instruction
Technical publication
PDF / 2MB
Service instruction(Handle)
Technical publication
PDF / 0.1MB
Service instruction(Pull rod)
Technical publication
PDF / 0.1MB
Service instruction(Cleaning Recommendation)
Technical publication
PDF / 0.1MB
With this shower technology, water is mixed with air - this enrichment makes the water droplets plumper, lighter and softer. And: water is used more efficiently.
Generous, intuitive and a big win on comfort: AXOR showers, taps and thermostats with this trademark extend your personal ComfortZone at the washbasin.
AXOR taps and showers with the EcoSmart technology use up to 60% less water than conventional products – without any loss of comfort. This means water and energy costs are reduced and valuable resources conserved.
Who really enjoys cleaning? With the QuickClean function, dirt and limescale deposits from taps and showers are rapidly removed thanks to flexible silicon knobs on the spray disc.
