AXOR ShowerSolutions ShowerHeaven 1200/300 4jet with lighting 2700 K

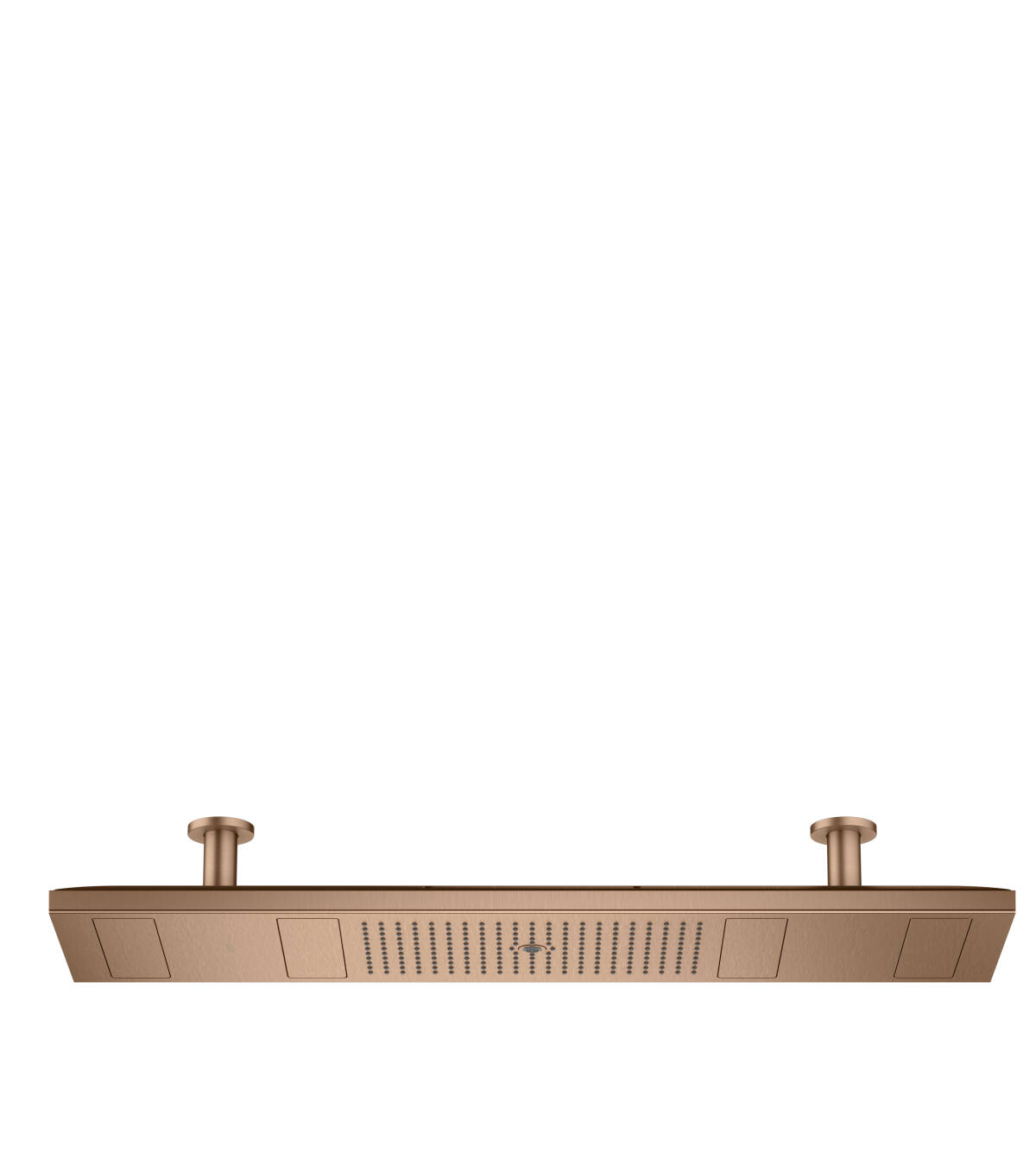

ShowerHeaven 1200/300 4jet with lighting 2700 K, Brushed Red Gold, 10628310
ShowerHeaven 1200/300 4jet with lighting 2700 K

Variant

ShowerHeaven 1200/300 4jet with lighting 2700 K
Brushed Red Gold

Surface finish

Brushed Red Gold
Planning with iSpecify What can iSpecify do? Product data sheet (PDF) Note product

Art. no.: 10628310

Product features

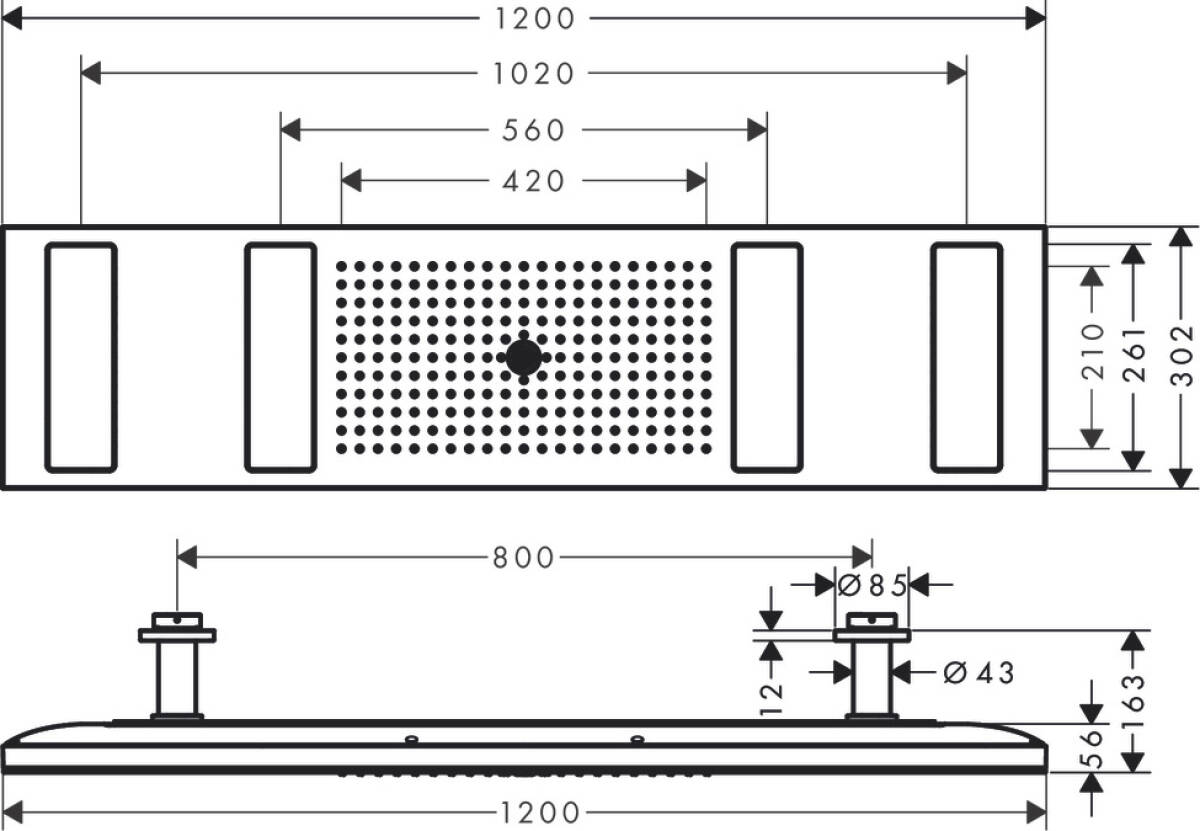

shower head size 1200 x 300 mm
ceiling connection
spray type Rain, MonoRain, PowderRain

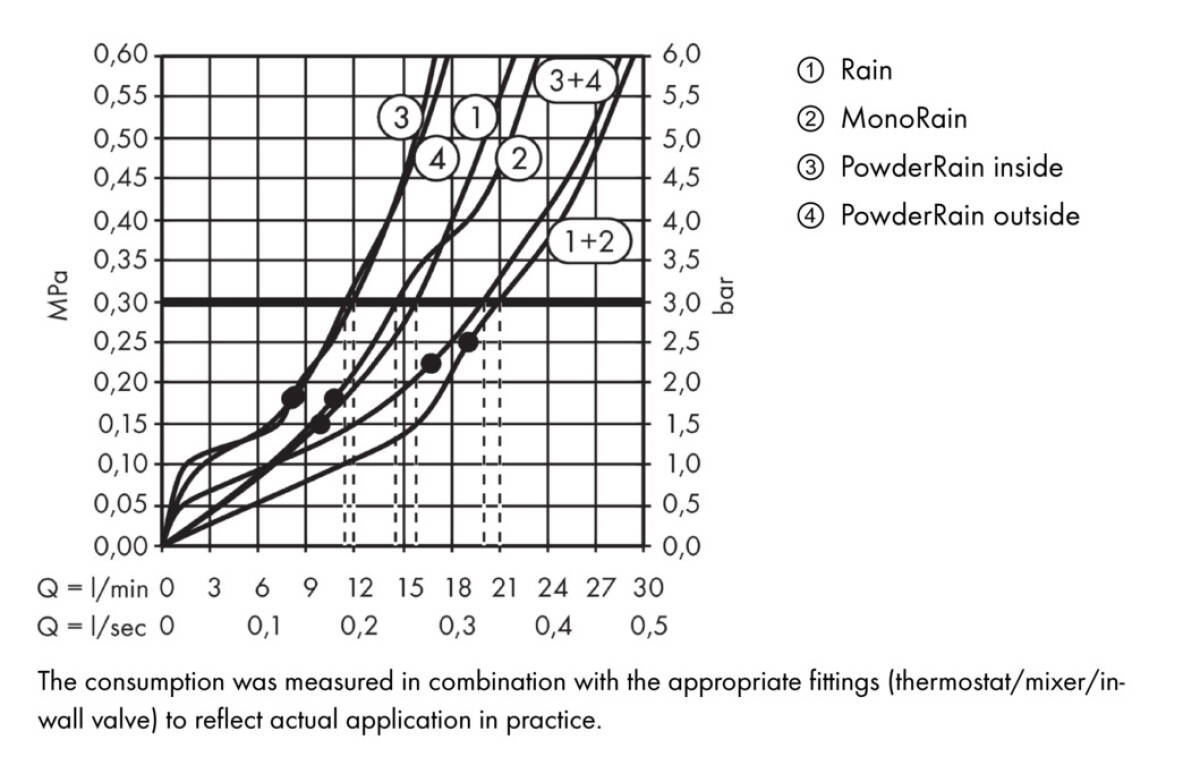

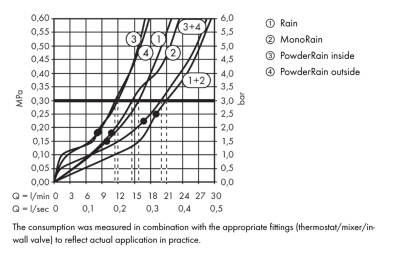

maximum flow rate at 0.3 MPa 30 l/min
flow rate Rain spray (at 0.3 MPa) 16 l/min
flow rate Mono spray (at 0.3 MPa) 15 l/min
flow rate PowderRain spray outer (at 0,3 MPa) 12 l/min
flow rate PowderRain spray inner (at 0.3 MPa) 12 l/min
spray zone controlling can be activated individually or in combination
spray type alternation Select button on thermostat
spray disc finish fully chrome-plated spray disc
material spray disc metal
cleaning overhead shower for cleaning removable, extendable flaps can be opened manually
ceiling connector type brass ceilling connector
ceiling connection length 100 mm
installation ceiling, extendable claps can be pre-set to the user size
connection dimension DN15
lighting
illuminant LED
power supply 24 V
transformer power supply, 24 V, 60 W, EuP II
input voltage 100 - 240 V AC / 50 / 60 Hz
output voltage 24 V - DC
colour temperature 2700 K
dimmable
suitable for continous flow water heaters
Test mark

ACS 18 ACC LY 238, valide jusqu'au 23.04.2023

WRAS 1907330

Kiwa UK 1907710

required accessory

Basic set for ShowerHeaven 1200/300 4jet Basic set for ShowerHeaven 1200/300 4jet

optional accessory

Extension set 230 mm for ceiling connector ShowerHeaven 1200/300 4jet Extension set 230 mm for ceiling connector ShowerHeaven 1200/300 4jet Thermostatic module Select 670/90 for concealed installation for 5 functions Thermostatic module Select 670/90 for concealed installation for 5 functions
