| shower head size | 120 mm |
|---|---|
| turnable through | spray angle adjustable in five steps |
| field of application | functions as overhead, shoulder or side shower |
| spray type | normal spray |
| maximum flow rate at 3 bar | 5.3 l/min |
| flow rate normal spray (at 3 bar) | 5.3 l/min |
| connection thread | G ½ |
| installation | in a joined installation (10 mm distance) the use of basic set no.28486180 is recommended, in a freely arranged installation, connection via a G ½ connecting thread is possible, if installed as an overhead shower with several joint modules, the use of installation aid no.28470180 is recommended |
| connection dimension | DN15 |
| material | metal |
| Test mark |
SVGW 0904-5538 P-IX 19159/IZ WRAS 1001015 Kiwa UK 1503708 WRAS 1503301 ACS 09 ACC NY 135 ACS 09 ACC NY 135, valide jusqu'au 28.05.2014 ACS 18 ACC NY 082, valide jusqu'au 12.03.2023 |
optional accessory

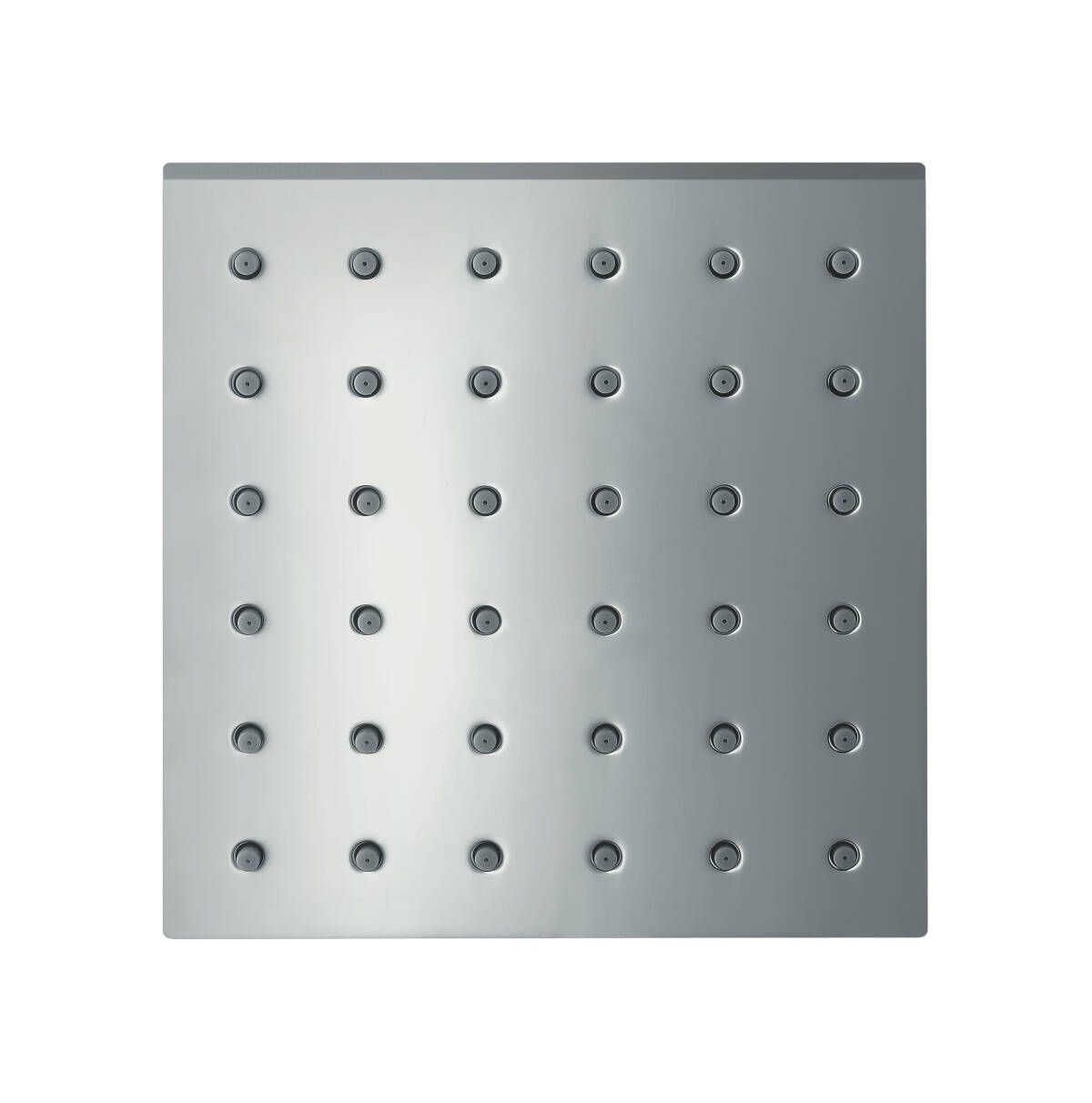

Product images

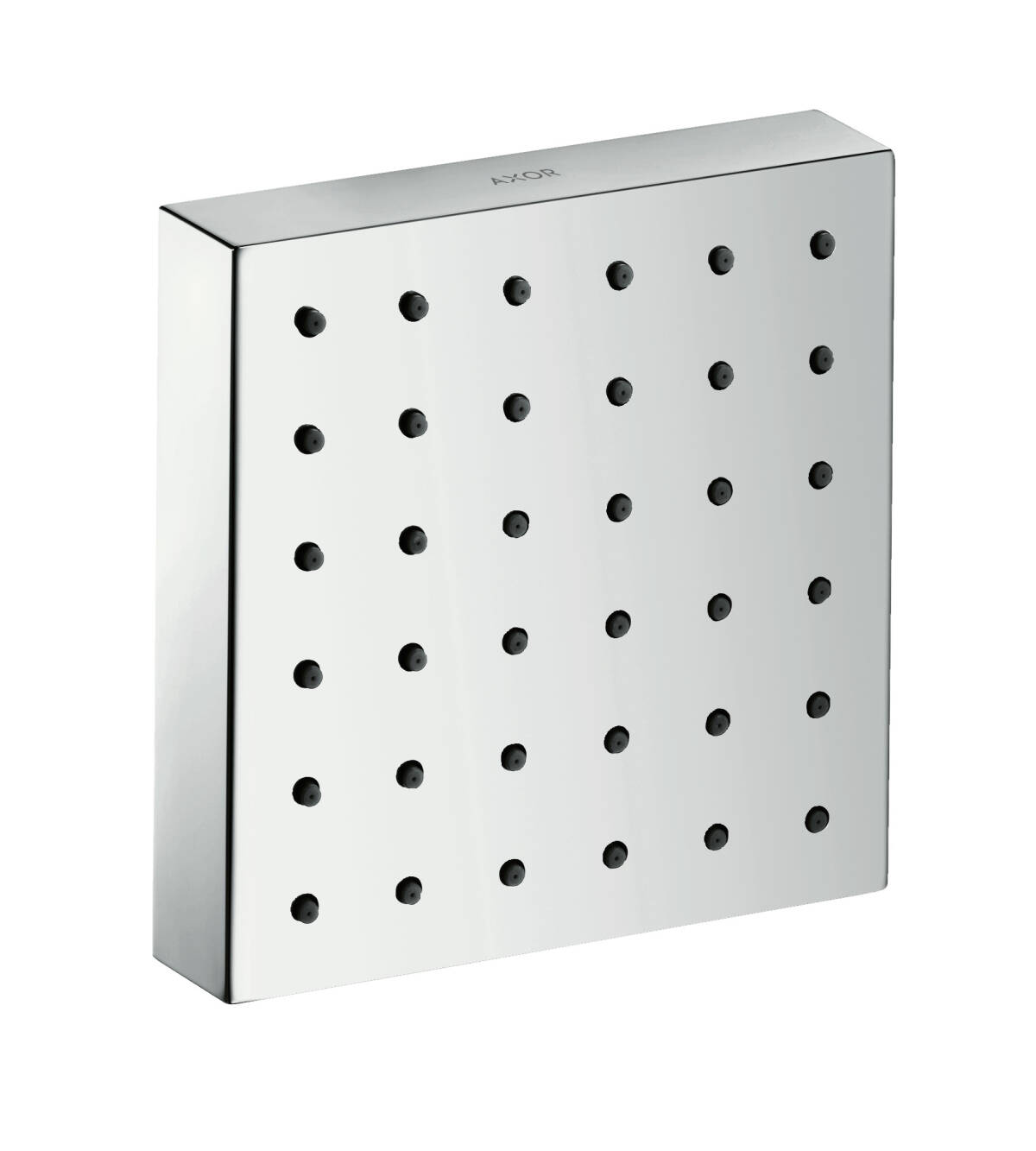

hansgrohe - Perspective
JPG / 0.1MB

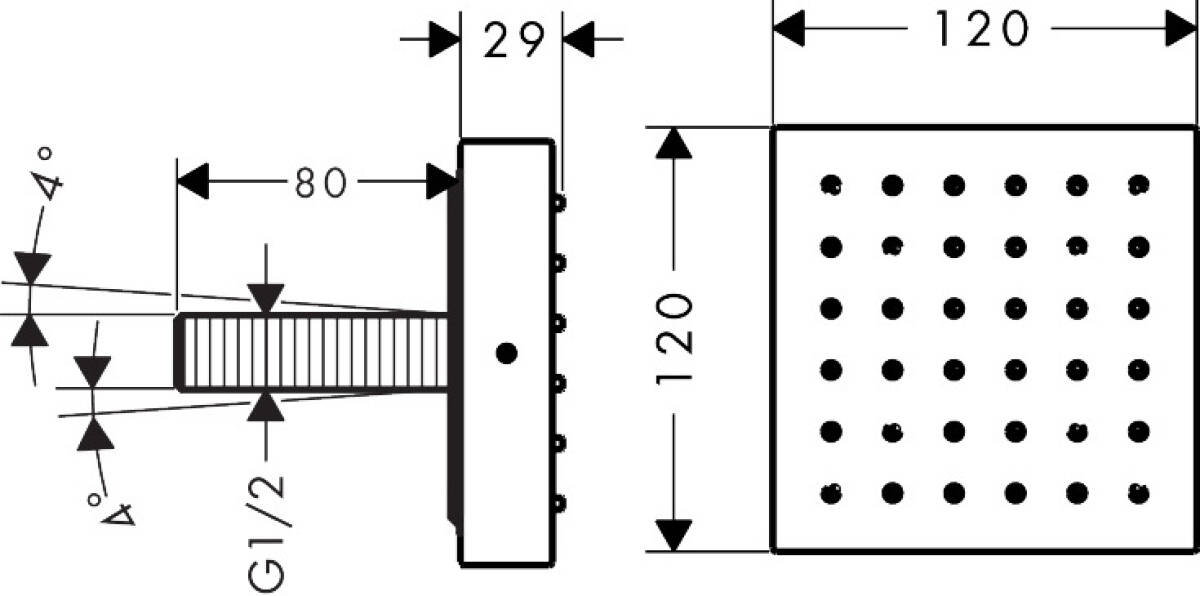

Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 0.1MB
Planning data (3D)
DXF / 1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB
General catalogue
Brand publication
PDF / 3MB

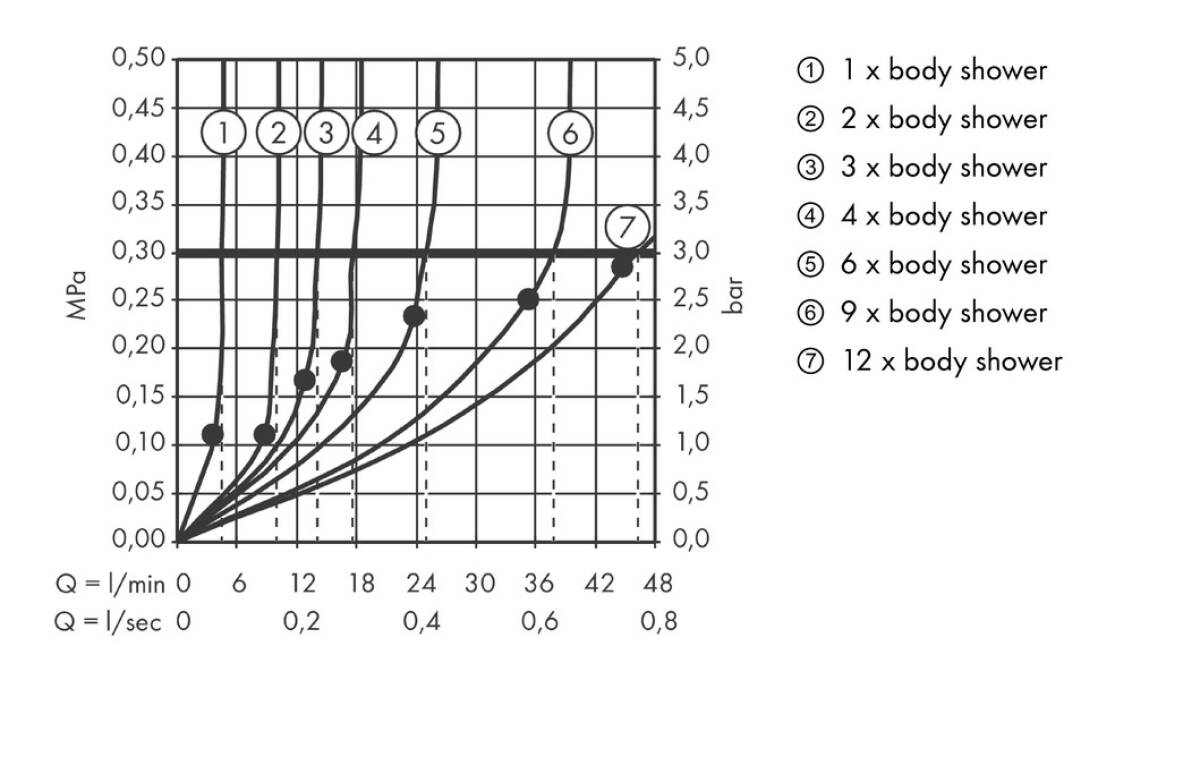

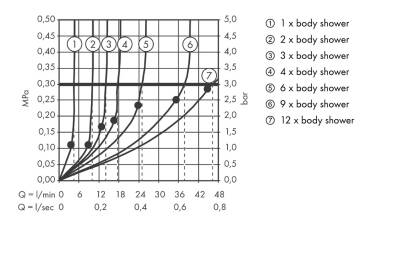

Flow chart
