Variant
Overhead shower 460/300 1jet with shower arm and square escutcheon
Surface finish
Chrome
Art. no.: 35278000
Select variant
| shower head size | 460 x 270 mm |
|---|---|
| ceiling connection |
 |
| shower arm length | 460 mm |
| ball-joint |
|
| spray type | Rain |
| flow rate Rain spray (at 0.3 MPa) | 19 l/min |
| spray disc finish | fully chrome-plated spray disc |
| material spray disc | metal |
| cleaning | spray disc removable for cleaning, overhead shower for cleaning removable |
| installation | wall |
| connection thread | G ½ |
| connection dimension | DN15 |
| lighting |
|

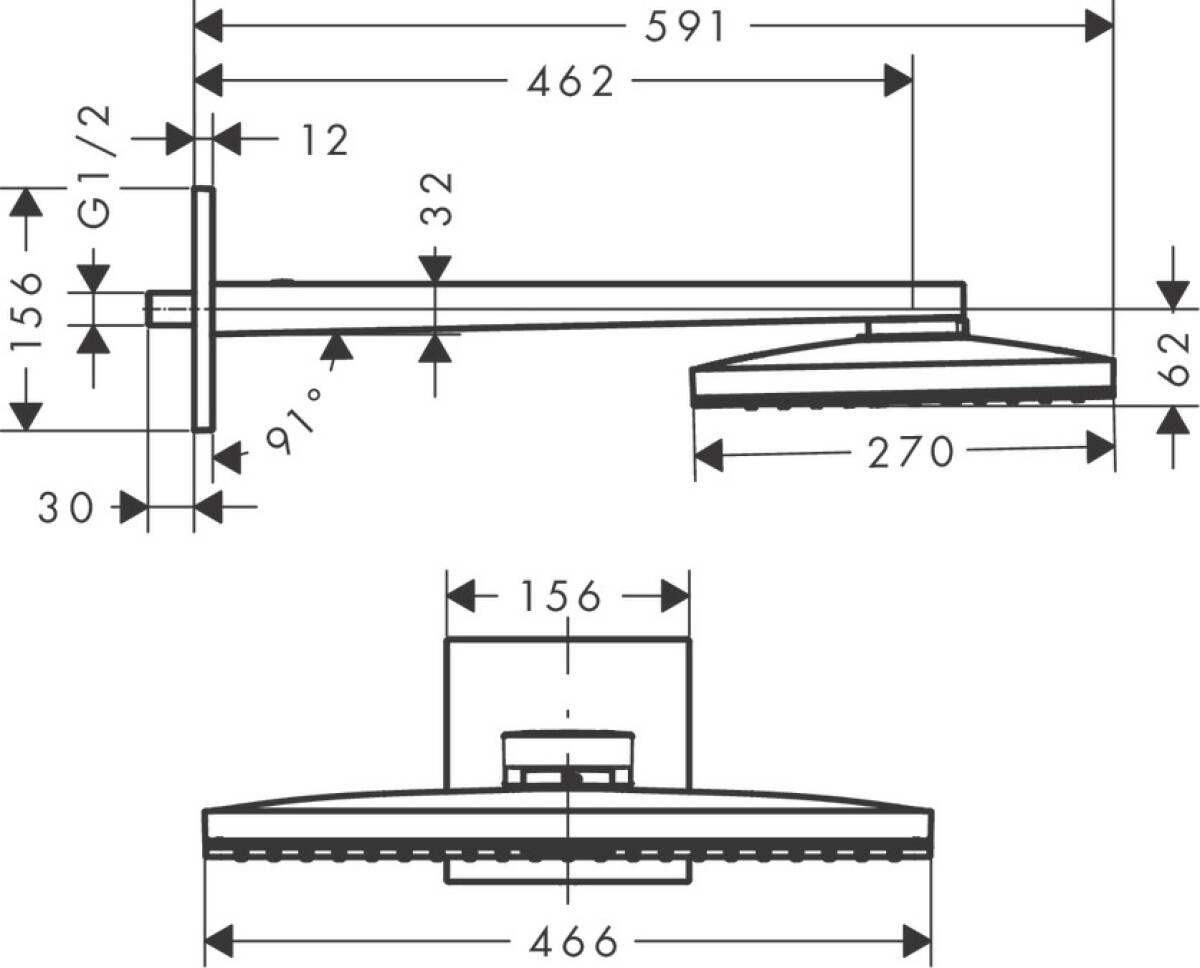

Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 1MB
Planning data (2D)
DWG / 0.1MB
Flow chart
JPG / 0.1MB
Assembly instruction(Overhead Shower)
Technical publication
PDF / 5MB
Service instruction(Cleaning Recommendation)
Technical publication
PDF / 0.1MB
BIM data (3DS)
3DS / 0.1MB
BIM data (AutoCAD 3D)
DWG / 0.1MB
BIM data (ArchiCAD)
GSM / 1MB
BIM data (IFC)
IFC / 1MB
BIM data (Revit)
RFA / 1MB
BIM data (Sketchup)
SKP / 0.1MB
BIM data (AutoCAD 2D)
DWG / 0.1MB
Who really enjoys cleaning? With the QuickClean function, dirt and limescale deposits from taps and showers are rapidly removed thanks to flexible silicon knobs on the spray disc.
One really needs to have experienced this: large-scale showering fun with spray types that have a pleasurable feel good factor. AXOR's overhead showers with a diameter of between 100 and 600 mm envelop you in a real water dream and ensure XXL performance in your bathroom.
QuickClean
XXL Performance
