AXOR ShowerSelect Thermostat for concealed installation softcube for 1 function

Illustration similar

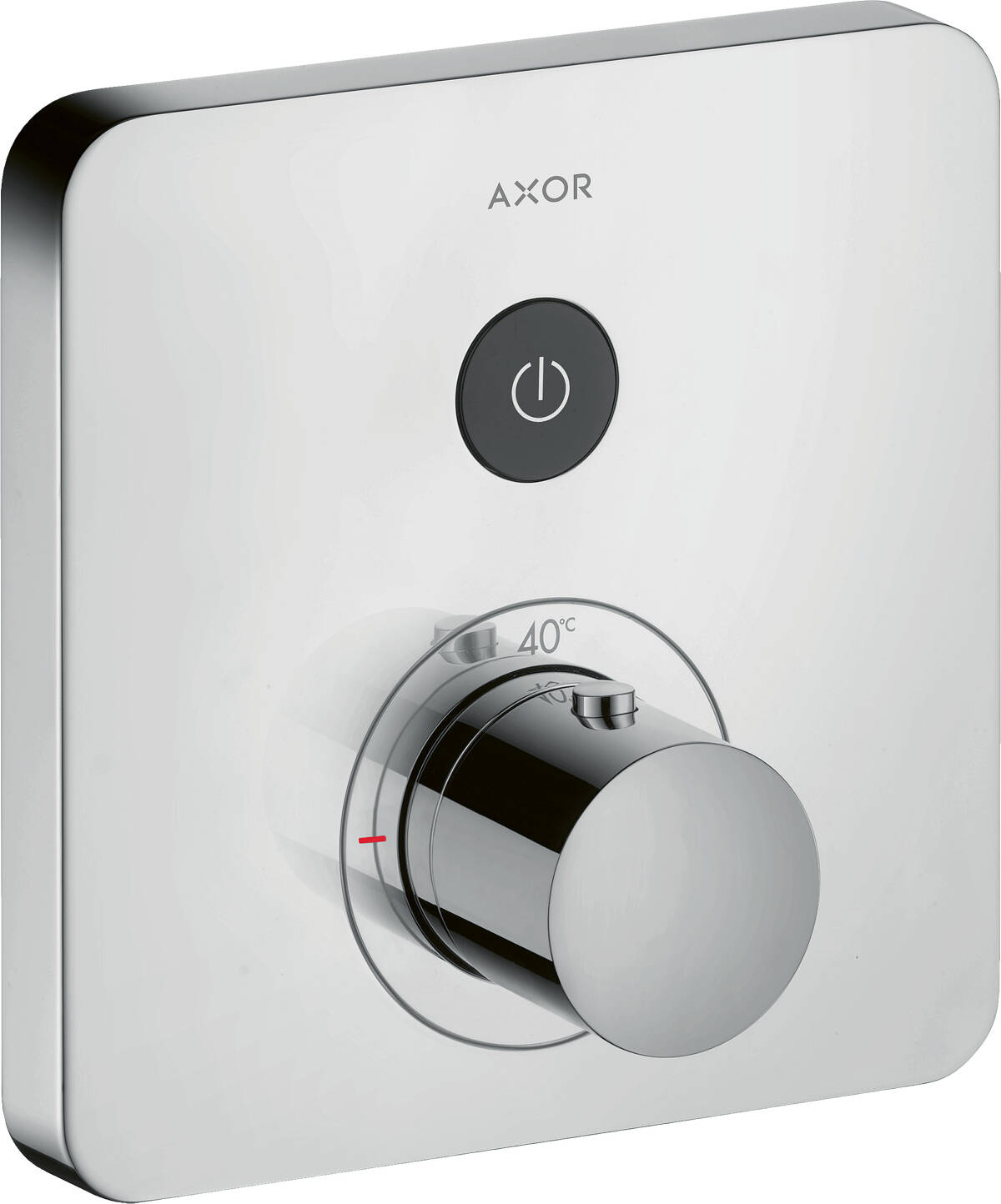

Thermostat for concealed installation softcube for 1 function, Brushed Red Gold, 36705310

Thermostat for concealed installation softcube for 1 function — Variant

Thermostat for concealed installation softcube for 1 function

Brushed Red Gold — Surface finish

Brushed Red Gold

Planning with iSpecify What can iSpecify do? Product data sheet (PDF) Note product

Art. no.: 36705310

Surface finish

Select variant

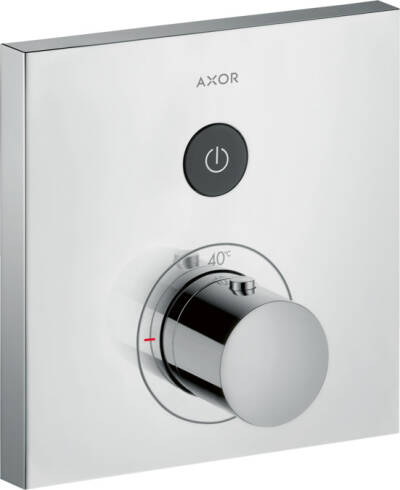

Thermostat for concealed installation square for 1 function

Thermostat for concealed installation square for 1 function

Product features

amount of outlet	1 outlet
operating outlet	Select push-button on/off control for 1 outlet
maximum flow rate at 0.3 MPa	26 l/min
cartridge	thermostat cartridge
safety stop	safety lock at 40° C
temperature limitation adjustable
connection type	basic set
Button	Thermostat is delivered with button On/Off
Test mark	SINTEF 3153 ETA VA 1.43/20477 ACS 13 ACC LY 756, valide jusqu'au 05.11.2018 WRAS 1503309 NF-375-M1-18/2 STA 1401 ACS 13 ACC LY 756, valide jusqu'au 09.12.2018 JWWA E-565 NF_375-M1-18-2 NF_375-M1-18-4 NF_375-M1-18-5 NF_375-M1-19-3 ACS 19 ACC LY 234, valide jusqu'au 05.11.2023 NF_375-M1-19-5

required accessory

Basic set iBox universal

Basic set iBox universal

optional accessory

Extension element

Extension element

Extension 25 mm for basic set iBox universal

Extension 25 mm for basic set iBox universal

Fastening rail set for iBox universal

Fastening rail set for iBox universal

Certificates

Eco Point A1

Eco Point A1 - 2015
SINTEF

SINTEF - 2014
EnergieEtikette F - 2011
WRAS (Water Regulations Advisory Scheme)

WRAS (Water Regulations Advisory Scheme) - 2012
VA-approval

VA-approval - 2016
NF Robinetterie sanitaire

NF Robinetterie sanitaire - 2013
STA Swedish Type Approval

SE STA - 2017
ACS

ACS - 2015

Awards

iF product design award 2016

iF Product Design Award - 2016
Red Dot product design award 2016

Red dot award - 2016

Downloads

All 17
Images 1
Planning data 12

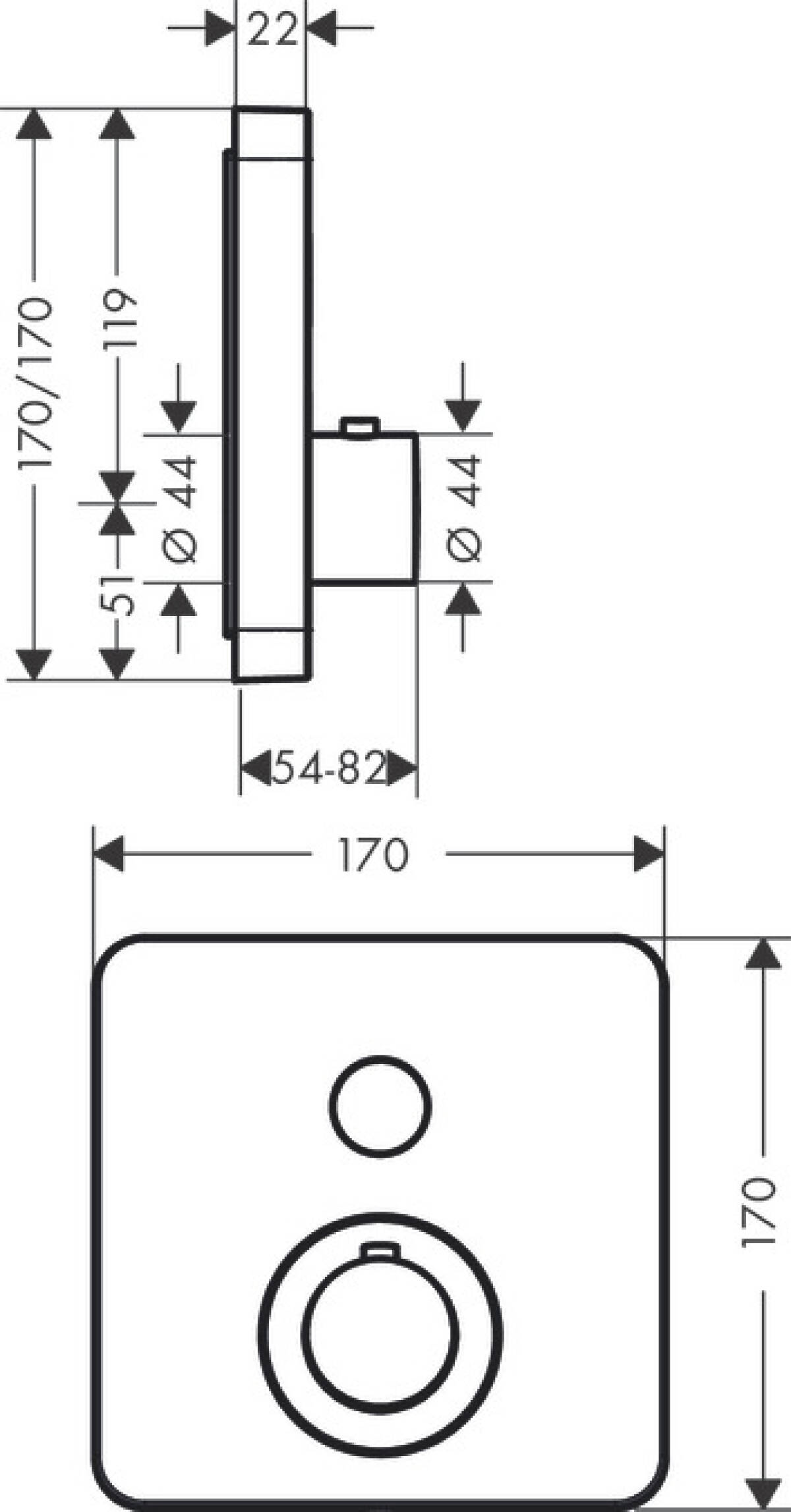

Technical drawings 2
Instructions 2

Product images

hansgrohe - Perspective

JPG / 0.1MB
