| shower head size | 279 mm |
|---|---|
| shower arm length | 400 mm |
| swivel shower arm | shower arm swivels by 150° |
| ball-joint |
 |
| spray type | Rain, RainAir |
| flow rate Rain spray (at 0.3 MPa) | 15 l/min |
| flow rate RainAir spray (at 0.3 MPa) | 15 l/min |
| spray type alternation | Select button on overhead shower |
| spray disc finish | fully chrome-plated spray disc |
| material spray disc | metal |
| cleaning | spray disc removable for cleaning |
| installation | wall |
| connection thread | G ½ |
| connection dimension | DN15 |
| suitable for continous flow water heaters |
|
Branding
AXOR - Branding
JPG / 0.1MB

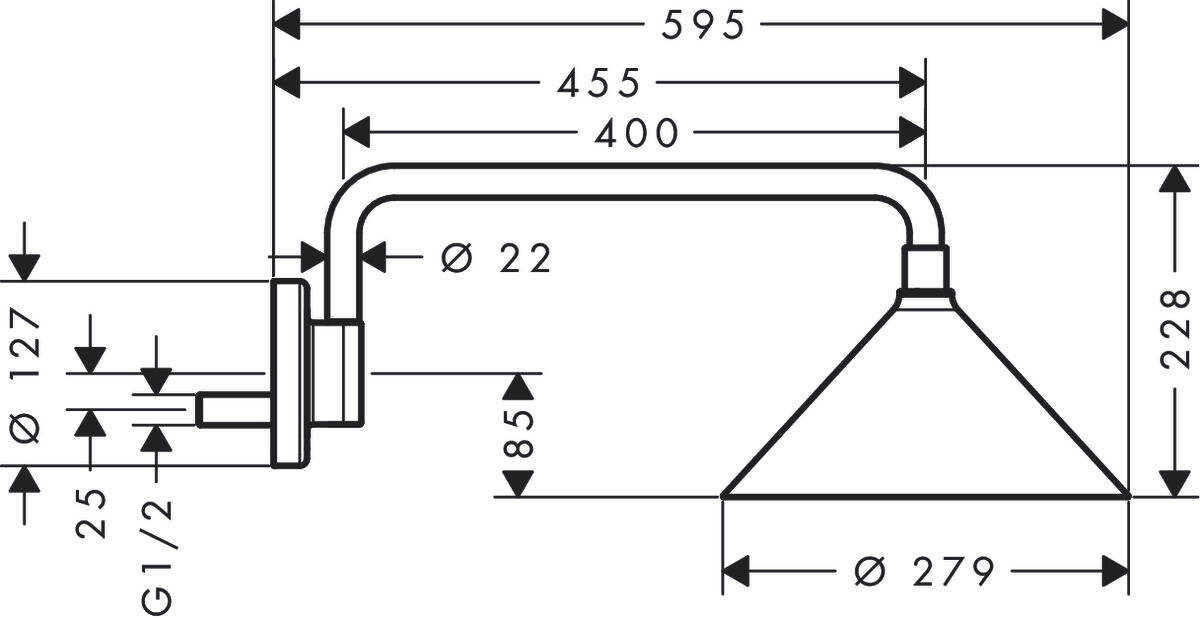

Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (3D)
DWG / 0.1MB
Planning data (3D)
DXF / 2MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB

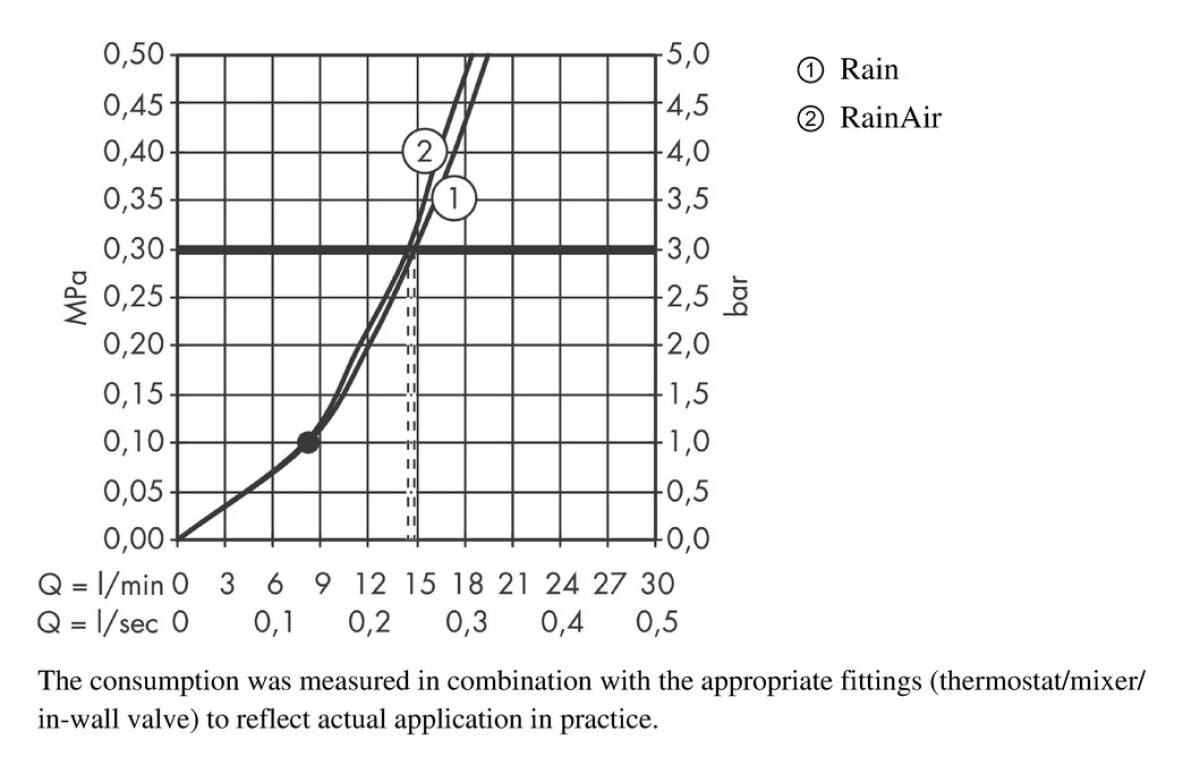

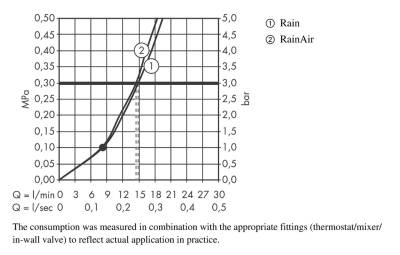

Flow chart
JPG / 0.1MB
Service instruction(Cleaning Recommendation)
Technical publication
PDF / 0.1MB
Assembly instruction(Overhead Shower)
Technical publication
PDF / 20MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (3D)
DWG / 0.1MB
Planning data (3D)
DXF / 2MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB
With this shower technology, water is mixed with air - this enrichment makes the water droplets plumper, lighter and softer. And: water is used more efficiently.
Who really enjoys cleaning? With the QuickClean function, dirt and limescale deposits from taps and showers are rapidly removed thanks to flexible silicon knobs on the spray disc.
One really needs to have experienced this: large-scale showering fun with spray types that have a pleasurable feel good factor. AXOR's overhead showers with a diameter of between 100 and 600 mm envelop you in a real water dream and ensure XXL performance in your bathroom.
Soft water droplets or an invigorating massage? Select your personal spray type with just one push of the button for even more fun in the shower.
AirPower
QuickClean
XXL Performance
Select
