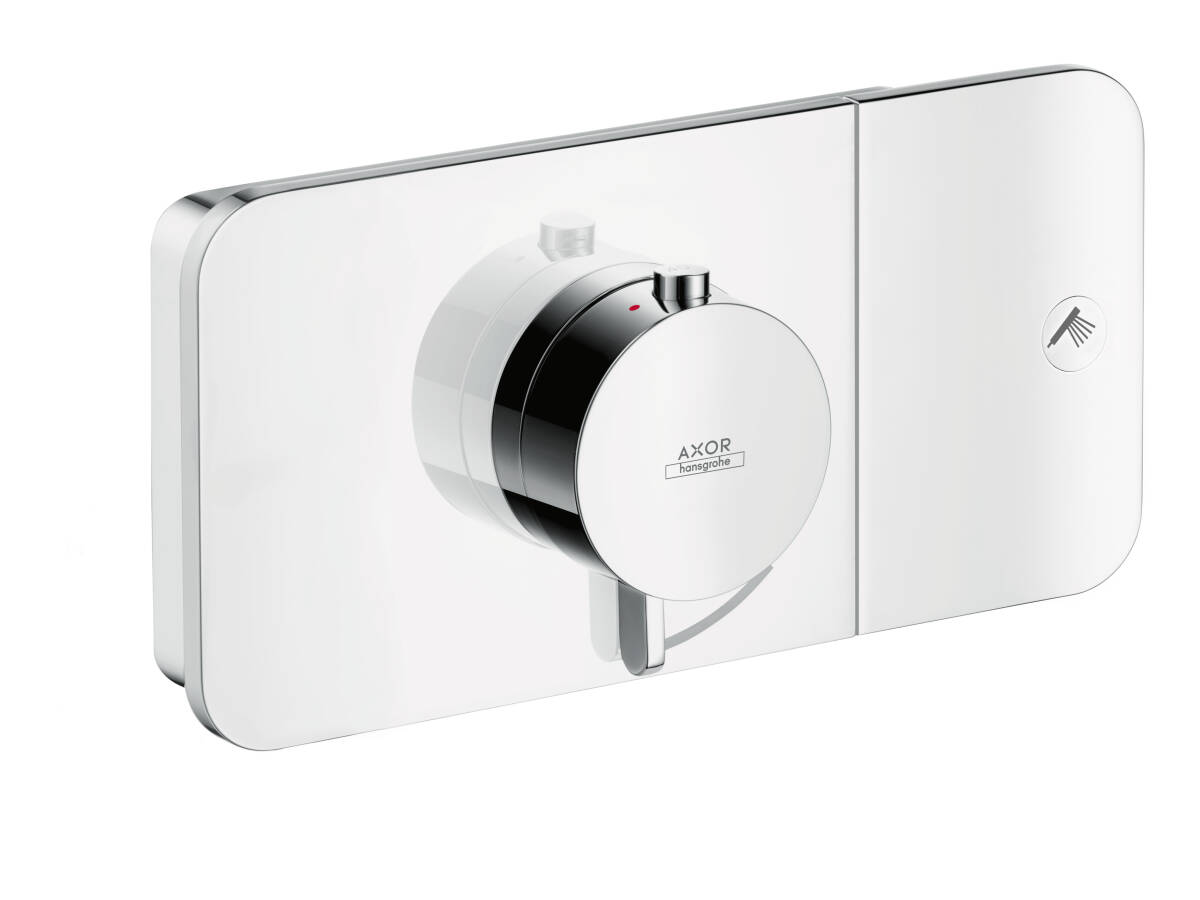

AXOR One Thermostatic module for concealed installation for 1 function

Thermostatic module for concealed installation for 1 function, Chrome, 45711000
Thermostatic module for concealed installation for 1 function

Variant

Thermostatic module for concealed installation for 1 function
Chrome

Surface finish

Chrome
Planning with iSpecify What can iSpecify do? Product data sheet (PDF) Note product

Art. no.: 45711000

Product features

Eco-Function flow rate regulation via lever handle, depending on volume flow and installation situation approx. 50% flow rate reduction
amount of outlet 1 function and 1 additional outlet
operating outlet comfortable turning on / off of consumers with large Select-paddle

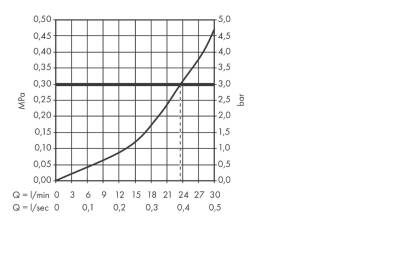

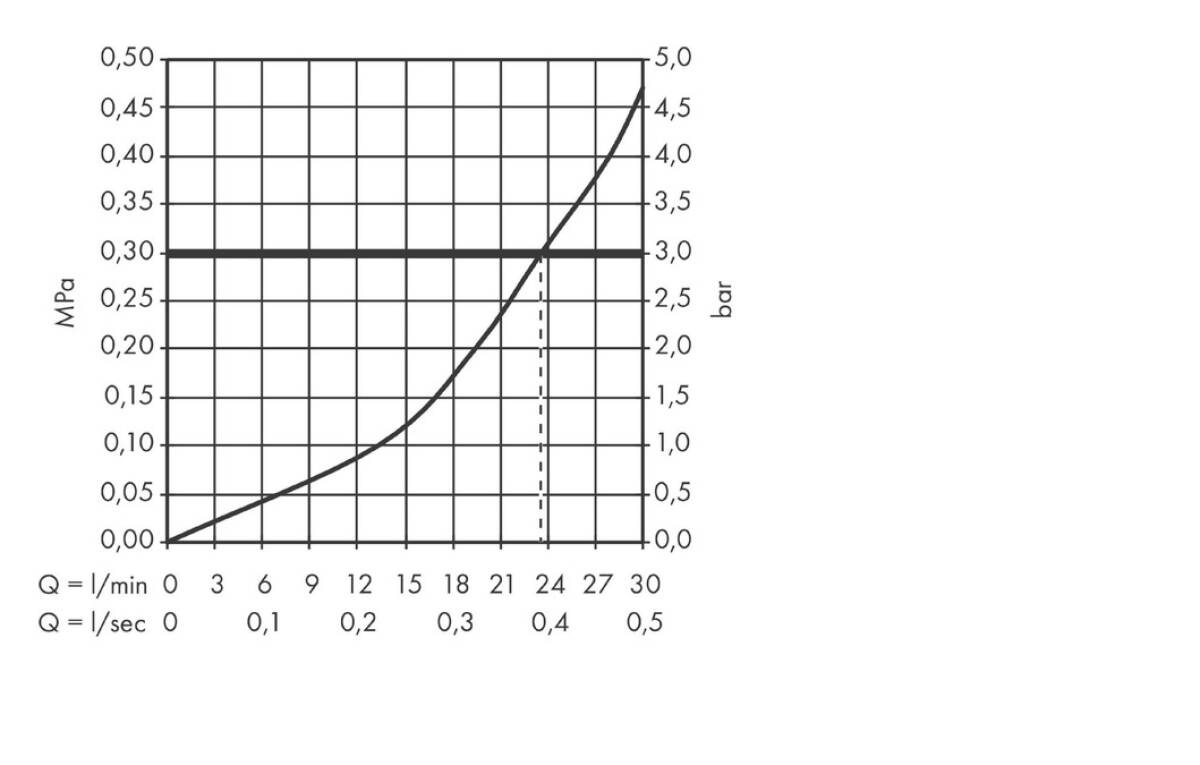

maximum flow rate at 0.3 MPa 24 l/min
flow rate per outlet 24 l/min
cartridge thermostat cartridge, Select valve, ceramic valves 90°
min. operating pressure 1 bar
safety stop safety lock at 40° C
temperature limitation adjustable
thermal disinfection
non-return valve
connection type basic set
Button Thermostat is delivered with button hand shower
Test mark

Kiwa K11292_Thermostatic mixers

ACS 16 ACC NY 372, valide jusqu'au 22.11.2021

JWWA E-565

STA 1515

P-IX 29147/ID

required accessory

Basic set for thermostatic module for concealed installation Basic set for thermostatic module for concealed installation
