Surface finish
Satin Black/Black Glass
Art. no.: 47060350
Select variant

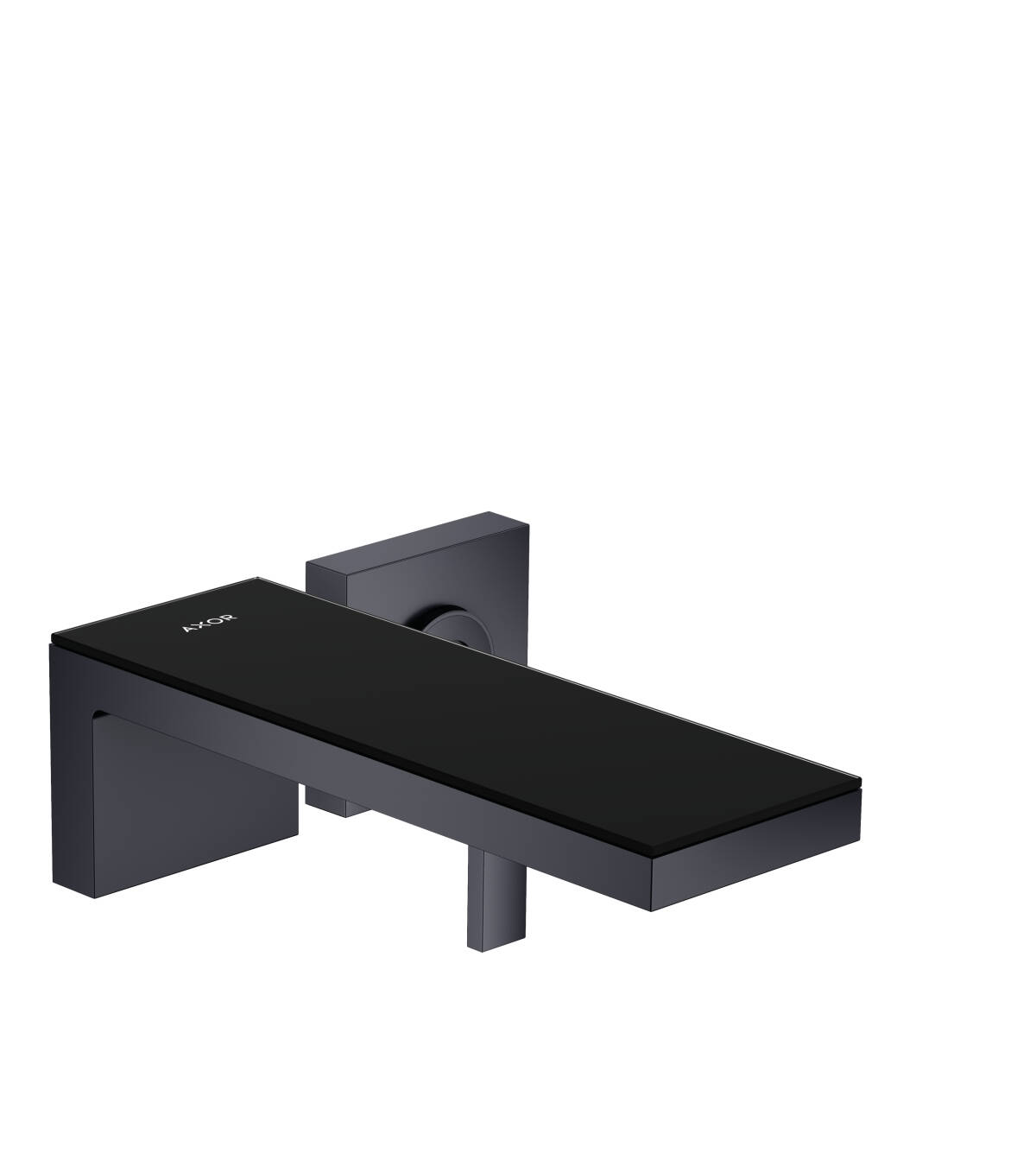

| consists of | single lever basin mixer for concealed installation wall-mounted, plate, waste set |
|---|---|
| projection | 221 mm |
| material shelf | plate of glass made of safety glass |
| spray type | PowderRain |
| flow rate at 3 bar | 5 l/min |
| cartridge | ceramic cartridge |
| temperature limitation adjustable |
 |
| isolated water conduction |
|
| suitable for continous flow water heaters |
|
| waste set | non-closing waste set |
| connection type | basic set |
| connection dimension | DN15 |
| variable handle position | handle can be positioned on the right or left, depends on the basic set installation |
| Test mark |
P-IX 29361/IO ACS 18 ACC LY 594, valide jusqu'au 17.10.2023 Watermark Mixers WMKA 0149 STA 1395 Kiwa K6161_Mechanical Mixers EN817 DVGW NW-6512CU0166 Kiwa UK 1909702 |

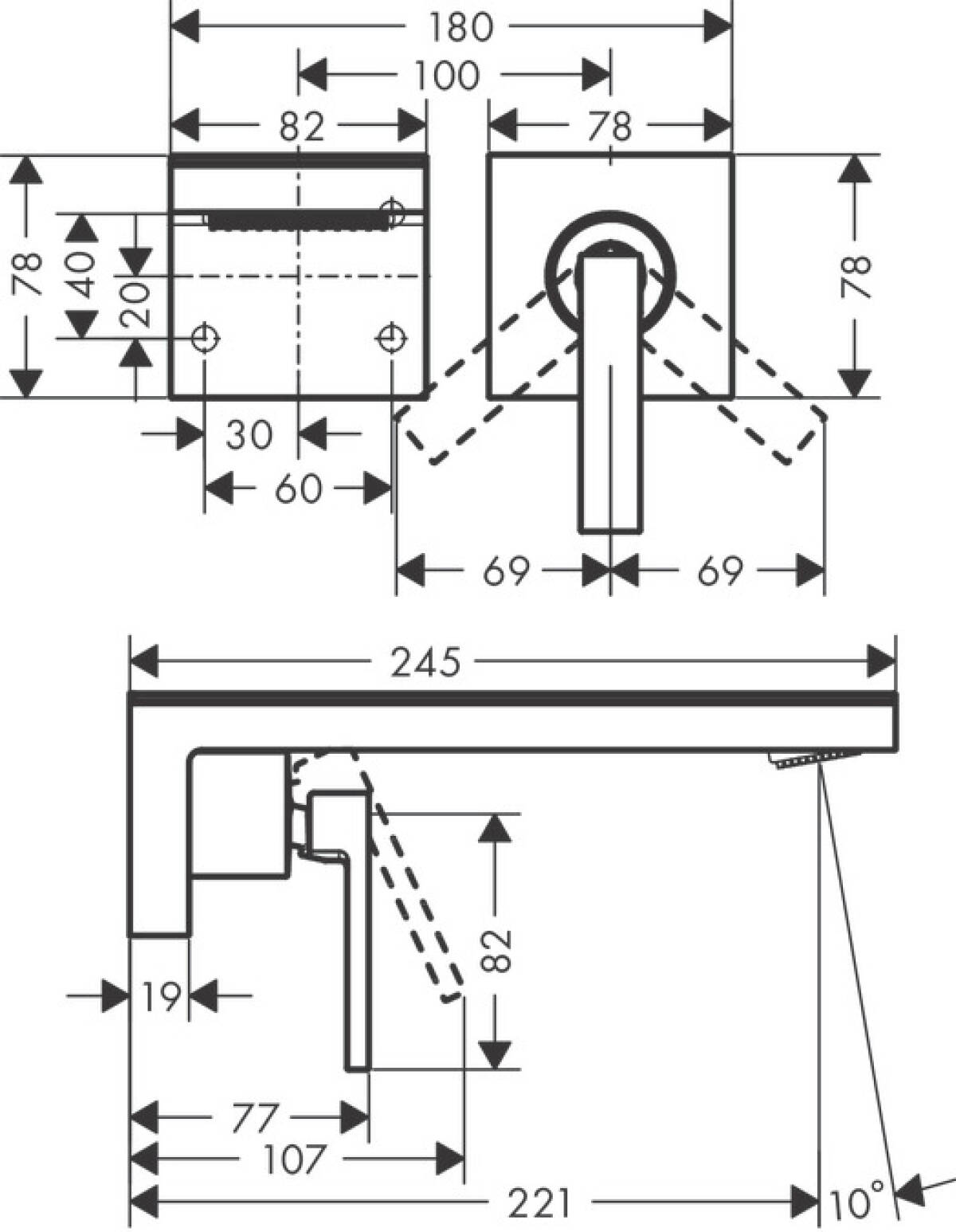

Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D)
DWG / 0.1MB
Planning data (AutoCAD 2D)
DWG / 0.1MB
Planning data (AutoCAD 3D)
DWG / 0.1MB

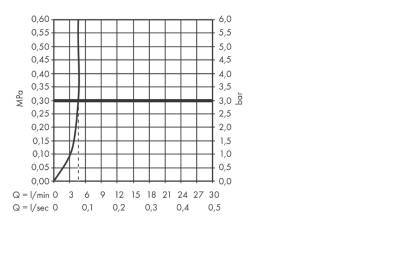

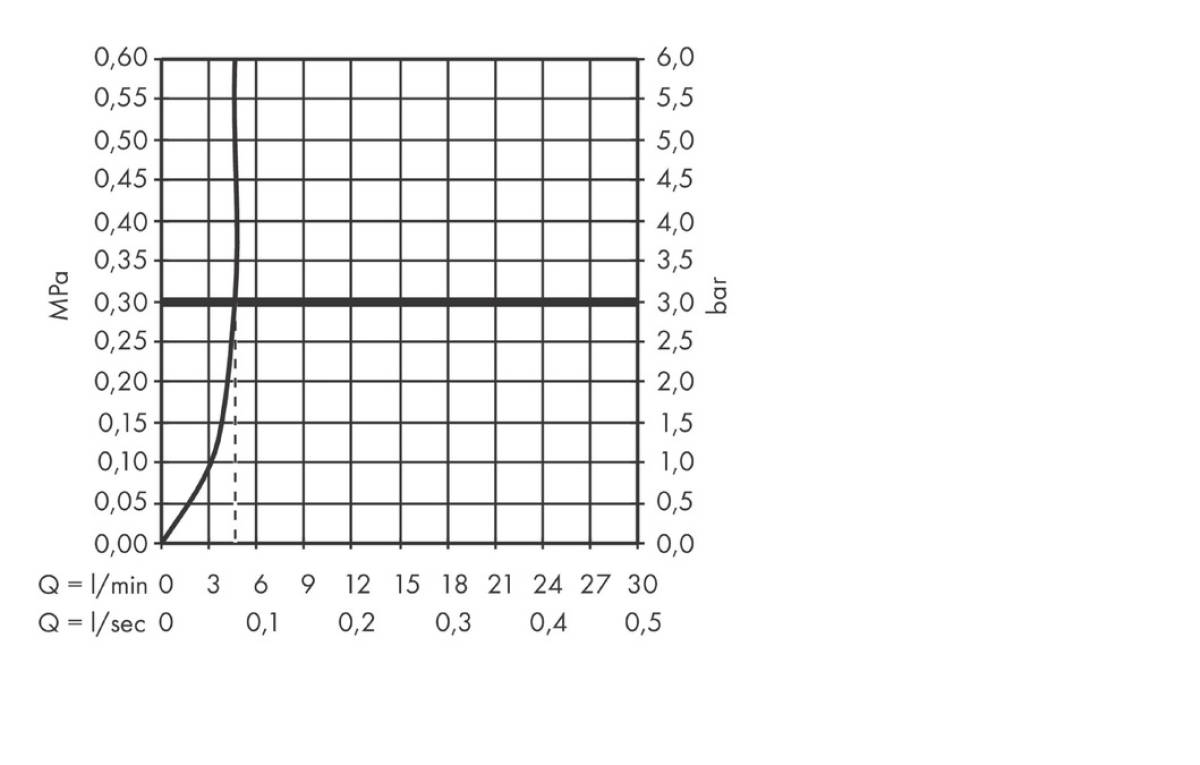

Flow chart
JPG / 0.1MB
Assembly instruction(Finish Set)
Technical publication
PDF / 10MB
Service instruction(Cleaning Recommendation)
Technical publication
PDF / 0.1MB
BIM data (AutoCAD 3D)
DWG / 0.1MB
BIM data (3DS)
3DS / 0.1MB
BIM data (ArchiCAD)
GSM / 0.1MB
BIM data (Filmbox 3D)
FBX / 0.1MB
BIM data (IFC)
IFC / 0.1MB
BIM data (Revit)
FPX / 0.1MB
BIM data (Sketchup)
SKP / 0.1MB
BIM data (STL)
STL / 0.1MB
BIM data (AutoCAD 2D)
DWG / 0.1MB
BIM data (3DS)
3DS / 0.1MB
BIM data (ArchiCAD)
GSM / 0.1MB
BIM data (AutoCAD 2D)
DWG / 0.1MB
BIM data (AutoCAD 3D)
DWG / 0.1MB
BIM data (IFC)
IFC / 0.1MB
BIM data (Revit)
RFA / 0.1MB
BIM data (Sketchup)
SKP / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D)
DWG / 0.1MB
Planning data (AutoCAD 2D)
DWG / 0.1MB
Planning data (AutoCAD 3D)
DWG / 0.1MB
BIM data (AutoCAD 3D)
DWG / 0.1MB
BIM data (3DS)
3DS / 0.1MB
BIM data (ArchiCAD)
GSM / 0.1MB
BIM data (Filmbox 3D)
FBX / 0.1MB
BIM data (IFC)
IFC / 0.1MB
BIM data (Revit)
FPX / 0.1MB
BIM data (Sketchup)
SKP / 0.1MB
BIM data (STL)
STL / 0.1MB
BIM data (AutoCAD 2D)
DWG / 0.1MB
BIM data (3DS)
3DS / 0.1MB
BIM data (ArchiCAD)
GSM / 0.1MB
BIM data (AutoCAD 2D)
DWG / 0.1MB
BIM data (AutoCAD 3D)
DWG / 0.1MB
BIM data (IFC)
IFC / 0.1MB
BIM data (Revit)
RFA / 0.1MB
BIM data (Sketchup)
SKP / 0.1MB
AXOR taps and showers with the EcoSmart technology use up to 60% less water than conventional products – without any loss of comfort. This means water and energy costs are reduced and valuable resources conserved.
Who really enjoys cleaning? With the QuickClean function, dirt and limescale deposits from taps and showers are rapidly removed thanks to flexible silicon knobs on the spray disc.
EcoSmart
QuickClean
