Surface finish
Chrome/Black Glass

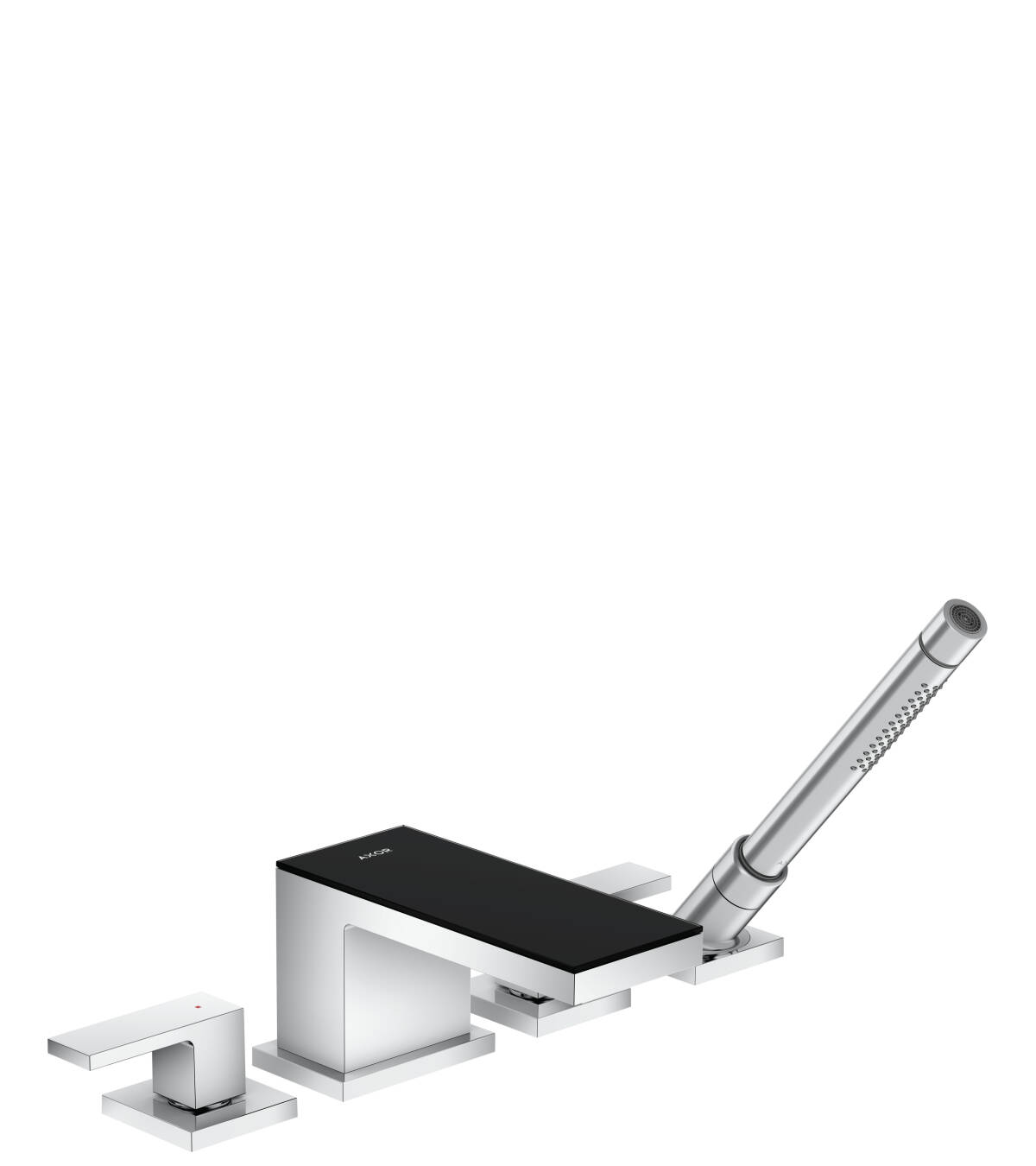

Art. no.: 47430600
Select variant
| consists of | 4-hole rim mounted bath mixer, plate, baton hand shower, Secuflex hose set, shower holder |
|---|---|
| projection | 150 mm |
| connection type | basic set |
| material shelf | plate of glass made of safety glass |
| spray type mixer | normal spray |
| spray type hand shower | Rain, Mono |
| maximum pull-out length of hand shower | 1.10 m |
| flow rate for bath spout at 3 bar | 22 l/min |
| flow rate of hand shower at 3 bar | 16 l/min |
| cartridge | ceramic valves hot/ cold 90° |
| min. operating pressure | 1 bar |
| max. operating pressure | 10 bar |
| return function |
 |
| connection dimension | DN15 |
| Test mark |
P-IX 29363/IO P-IX 29363/IOC ACS 18 ACC LY 594, valide jusqu'au 17.10.2023 STA 1518 Kiwa K6110_Mechanical Mixers EN200 DVGW NW-6501CU0235 Kiwa UK 1909703 Agréé Belgaqua |
Consisting of
required accessory

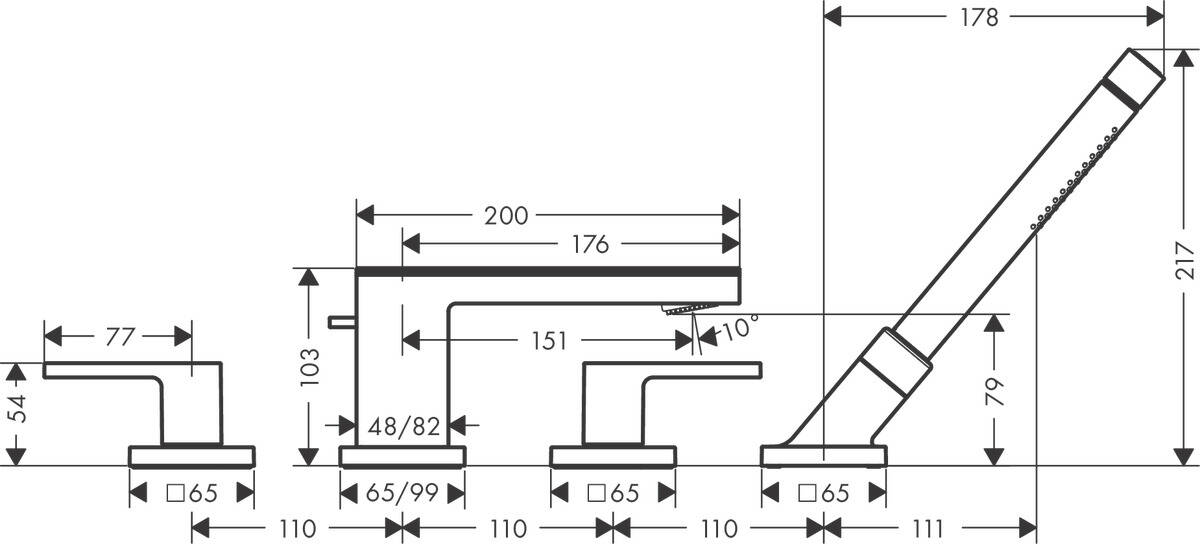

Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D)
DWG / 0.1MB
Planning data (AutoCAD 2D)
DWG / 0.1MB
Planning data (AutoCAD 3D)
DWG / 0.1MB

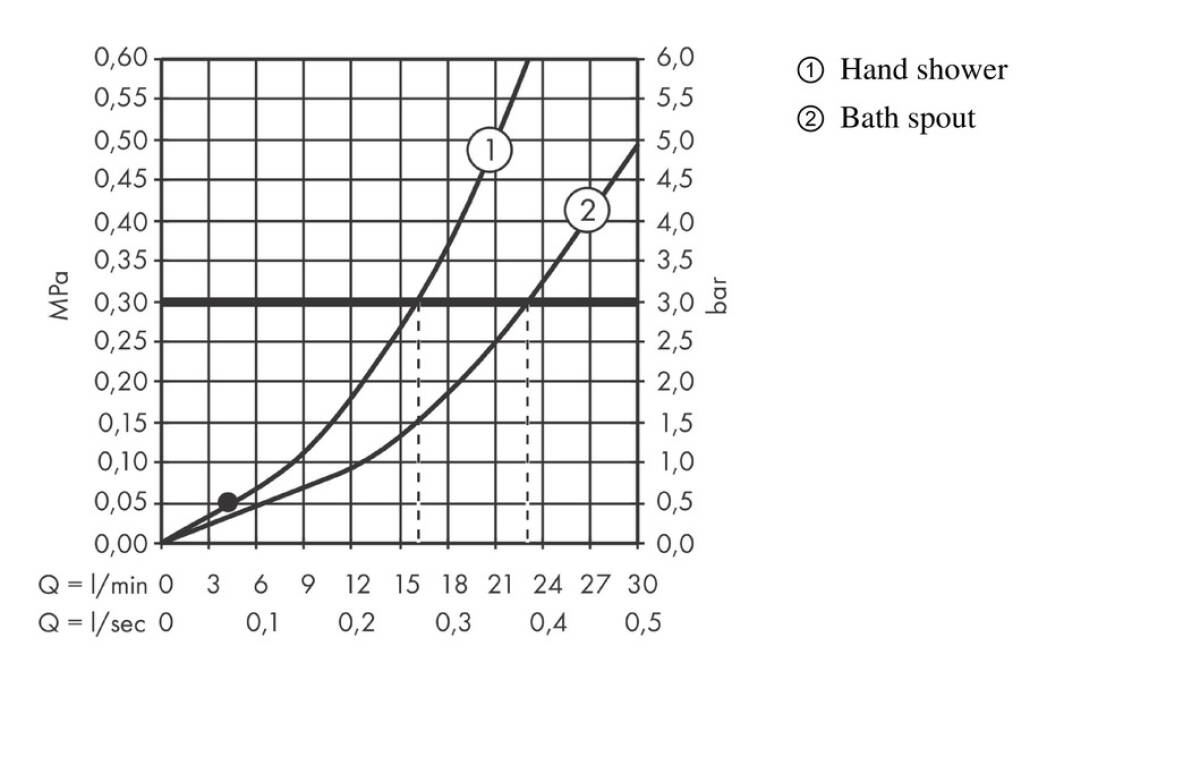

Flow chart
JPG / 0.1MB
Assembly instruction(Finish Set)
Technical publication
PDF / 14MB
Service instruction(Cleaning Recommendation)
Technical publication
PDF / 0.1MB
BIM data (Filmbox 3D)
FBX / 0.1MB
BIM data (3DS)
3DS / 0.1MB
BIM data (ArchiCAD)
GSM / 1MB
BIM data (AutoCAD 3D)
DWG / 0.1MB
BIM data (IFC)
IFC / 0.1MB
BIM data (Revit)
FPX / 1MB
BIM data (Sketchup)
SKP / 0.1MB
BIM data (STL)
STL / 0.1MB
BIM data (AutoCAD 2D)
DWG / 0.1MB
BIM data (3DS)
3DS / 0.1MB
BIM data (ArchiCAD)
GSM / 1MB
BIM data (AutoCAD 2D)
DWG / 0.1MB
BIM data (AutoCAD 3D)
DWG / 0.1MB
BIM data (IFC)
IFC / 0.1MB
BIM data (Revit)
RFA / 1MB
BIM data (Sketchup)
SKP / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D)
DWG / 0.1MB
Planning data (AutoCAD 2D)
DWG / 0.1MB
Planning data (AutoCAD 3D)
DWG / 0.1MB
BIM data (Filmbox 3D)
FBX / 0.1MB
BIM data (3DS)
3DS / 0.1MB
BIM data (ArchiCAD)
GSM / 1MB
BIM data (AutoCAD 3D)
DWG / 0.1MB
BIM data (IFC)
IFC / 0.1MB
BIM data (Revit)
FPX / 1MB
BIM data (Sketchup)
SKP / 0.1MB
BIM data (STL)
STL / 0.1MB
BIM data (AutoCAD 2D)
DWG / 0.1MB
BIM data (3DS)
3DS / 0.1MB
BIM data (ArchiCAD)
GSM / 1MB
BIM data (AutoCAD 2D)
DWG / 0.1MB
BIM data (AutoCAD 3D)
DWG / 0.1MB
BIM data (IFC)
IFC / 0.1MB
BIM data (Revit)
RFA / 1MB
BIM data (Sketchup)
SKP / 0.1MB
Who really enjoys cleaning? With the QuickClean function, dirt and limescale deposits from taps and showers are rapidly removed thanks to flexible silicon knobs on the spray disc.
QuickClean
