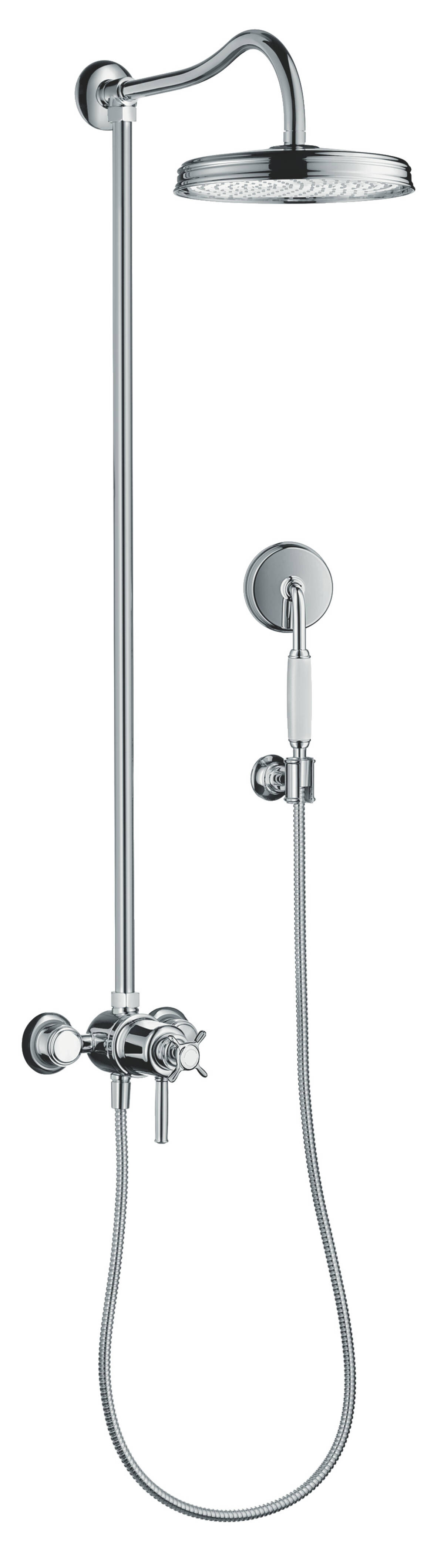

AXOR - Default 45°
JPG / 0.1MB
Menu
Your wish list is currently empty.
Add productsMenu
Your wish list is currently empty.
Add products
| consists of | overhead shower, hand shower, single lever shower mixer, shower hose, shower holder |
|---|---|
| maximum flow rate at 0.3 MPa | 17 l/min |
| shower head size | 240 mm |
| ball-joint | overhead shower angle adjustable |
| spray type | Rain |
| flow rate Rain spray (at 0.3 MPa) | 17 l/min |
| operating pressure | min. 0.25 MPa/max. 1.0 MPa |
| spray disc finish | fully chrome-plated spray disc |
| shower arm length | 430 mm |
| swivel shower arm |
 |
| description thermostat | thermostat AXOR Montreux |
| protection against scalding | safety lock at 38° C |
| hot water restriction |
 |
| operating outlet | outlets controlled via turning handle |
| installation type | exposed installation |
| connection dimension | DN15 |
| connection thread | G ½ |
| centre distance | 150 ± 16 mm |
| Test mark |
SVGW 0706-5236 PA-IX 18462/I0B PA-IX 18462/IOB ACS 07 ACC NY 544 07 ACC NY 544 NSF Declaration 170058 WRAS 1706027 WELS SGP 1 Tick SHT-2015/018789 ACS 18 ACC LY 515, valide jusqu'au 16.08.2024 |
Product images
AXOR - Default 45°
JPG / 0.1MB

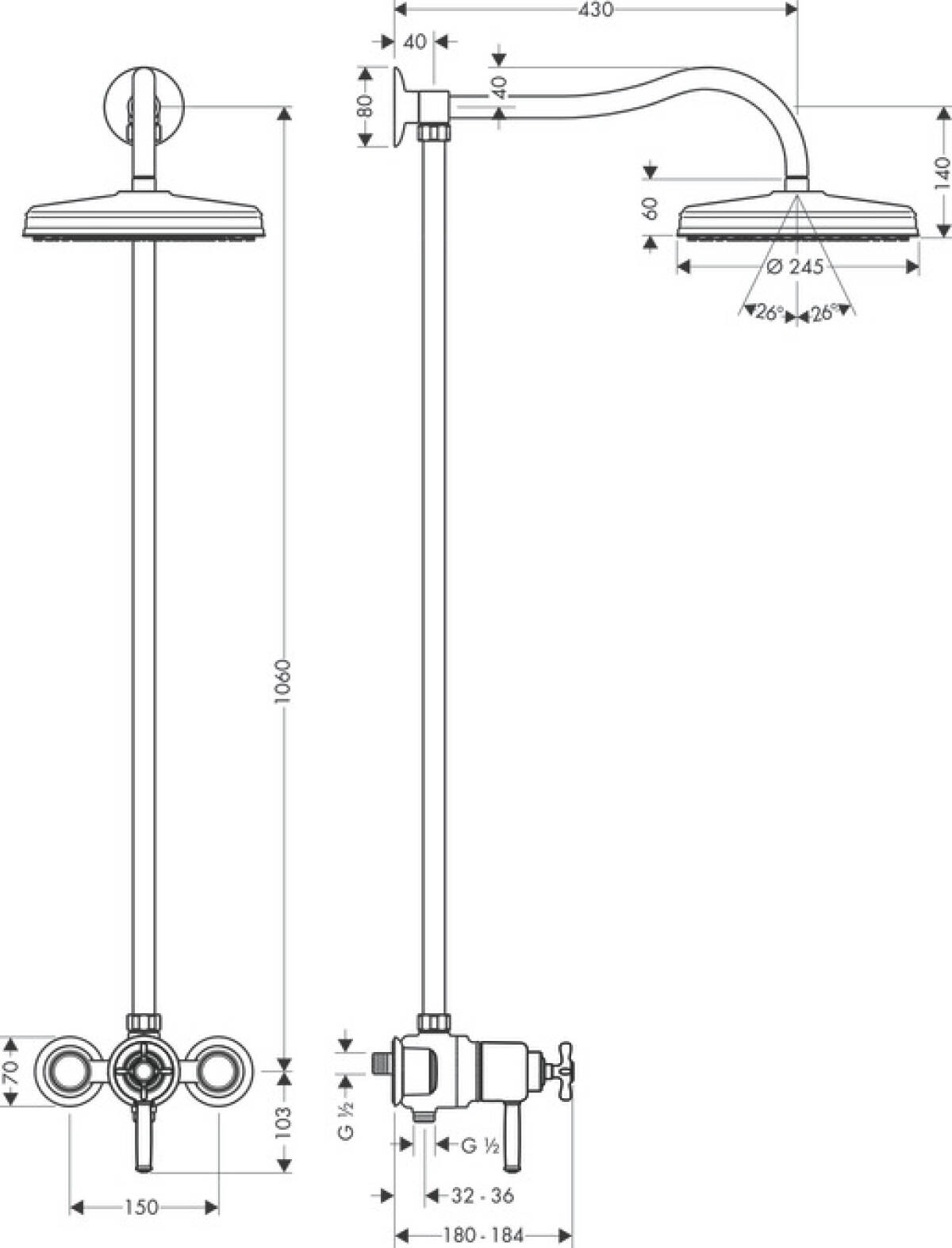

Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 2MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB

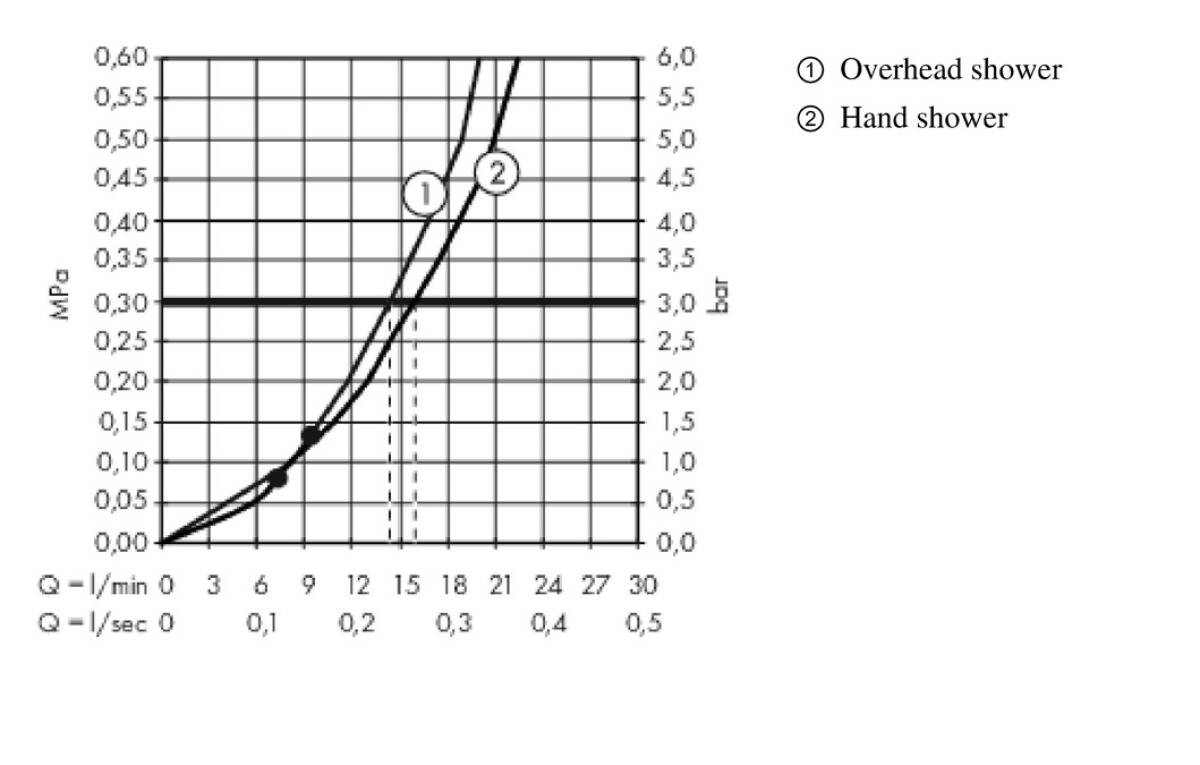

Flow chart
