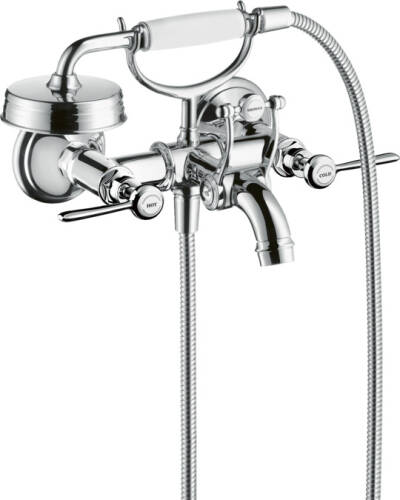

| consists of | 2-handle bath mixer, hand shower, shower hose, shower holder |
|---|---|
| projection | 224 mm |
| connection type | s-shaped connections |
| centre distance | 170 ± 32 mm |
| spray type mixer | normal spray |
| spray type hand shower | RainAir |
| flow rate at 3 bar | 20 l/min |
| cartridge | ceramic valves hot/ cold 90° |
| min. operating pressure | 1 bar |
| max. operating pressure | 10 bar |
| temperature limitation adjustable |
 |
| return function |
|
| non-return valve |
 |
| suitable for continous flow water heaters |
|
| connection dimension | DN15 |
| Test mark |
ETA VA 1.42/17919 ACS 09 ACC LY 032 ACS 18 ACC LY 112, valide jusqu'au 13.02.2023 STA 1424 |
Consisting of

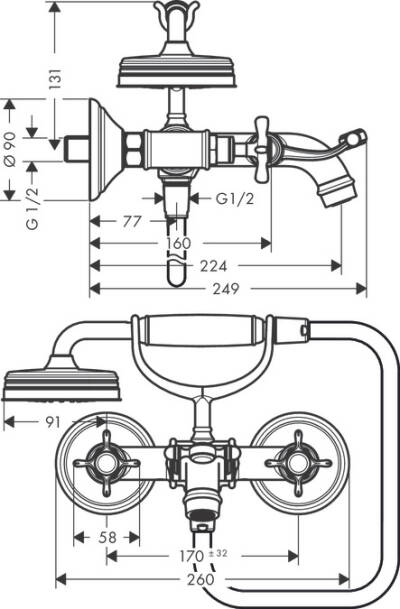

Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 2MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB

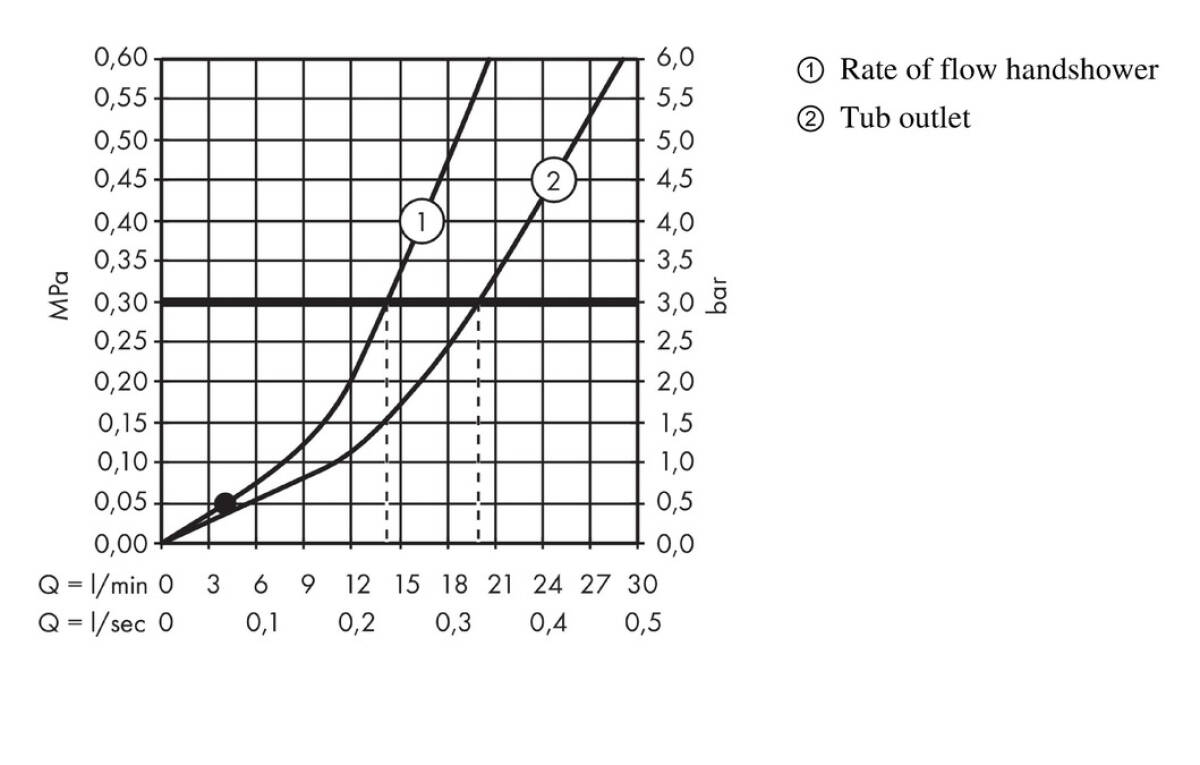

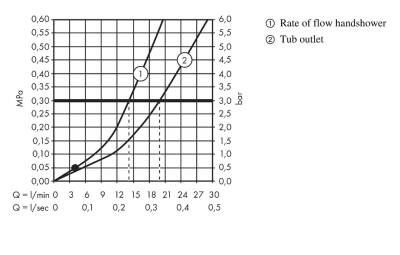

Flow chart
