| shower head size | 275 mm |
|---|---|
| shower arm length | 380 mm |
| swivel shower arm | shower arm swivels by 150° |
| ball-joint | overhead shower angle adjustable |
| spray type | Rain |
| maximum flow rate at 0.3 MPa | 13 l/min |
| flow rate Rain spray (at 0.3 MPa) | 13 l/min |
| spray zones | special spray image from placed inside spray nozzles on the inner diameter |
| spray disc finish | fully chrome-plated spray disc |
| material spray disc | metal |
| cleaning | spray disc removable for cleaning |
| installation | wall |
| connection dimension | DN15 |
| lighting |
 |
| illuminant | LED |
| power supply | 12 V |
| transformer | power supply for concealed installation 12 V, 18 W |
| input voltage | 100 - 240 V AC / 50 / 60 Hz |
| output voltage | 12 V - DC |
| colour temperature | 2700 K |
| dimmable |
 |
| energy efficiency label | A+ |
| TÜV certified |
|
| Test mark |
TUEV B 13 10 14237 044 TÜV certified TUEV B 14 04 14237 078 ACS 14 ACC LY 081 TÜV B 14 04 14237 078 ACS 14 ACC LY 081, valide jusqu'au 20.05.2019 ACS 19 ACC LY 042, valide jusqu'au 20.05.2024 |
Branding
AXOR - Branding
JPG / 0.1MB

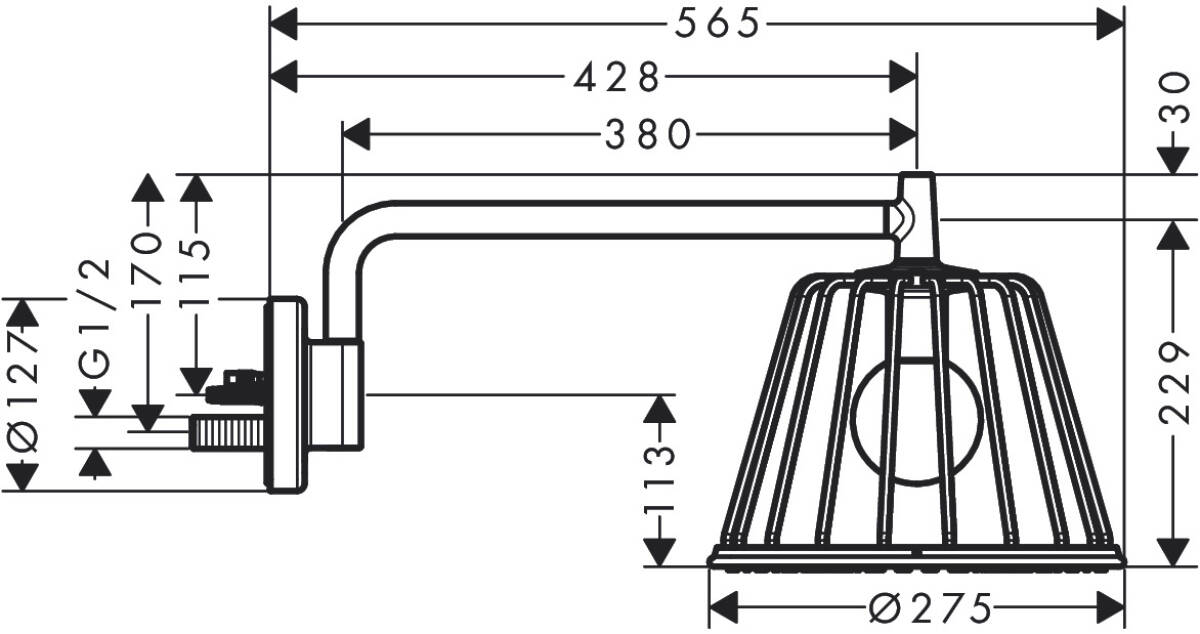

Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 1MB
Planning data (3D)
DWG / 1MB
Planning data (3D)
DXF / 4MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (2D top view)
DXF / 0.1MB

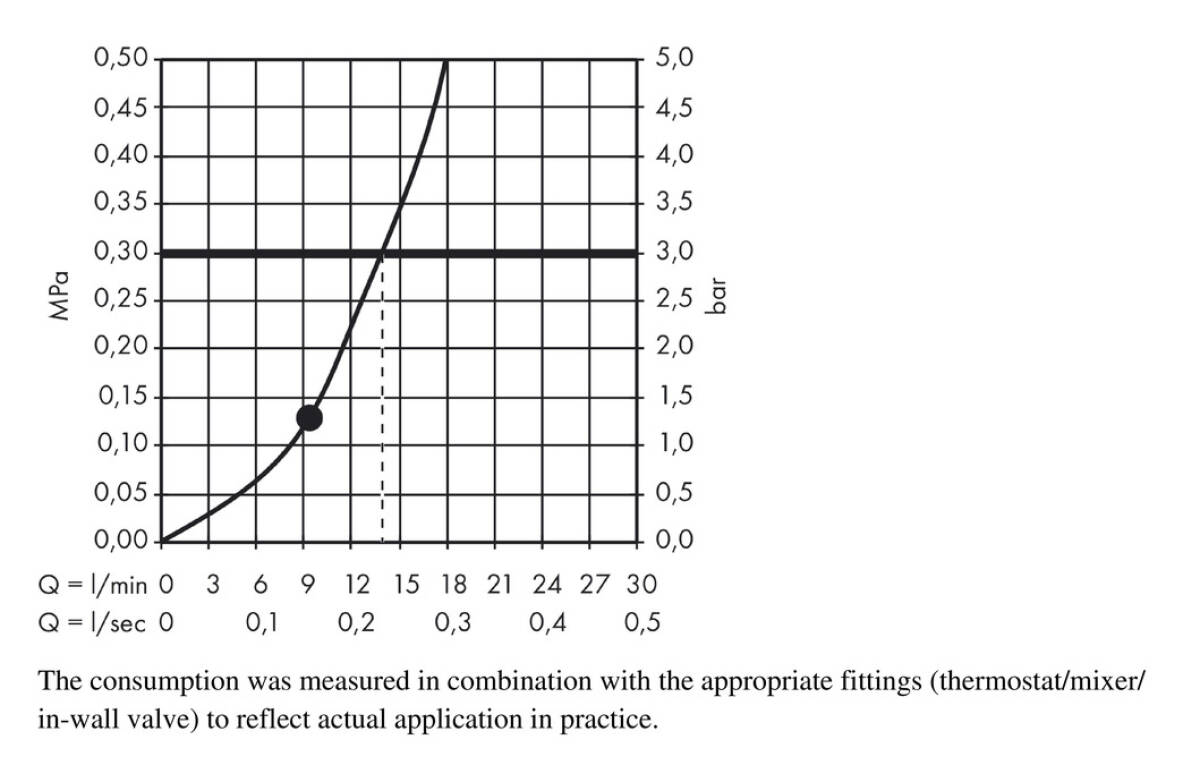

Flow chart
JPG / 0.1MB
Assembly instruction(Overhead Shower)
Technical publication
PDF / 13MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 1MB
Planning data (3D)
DWG / 1MB
Planning data (3D)
DXF / 4MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (2D top view)
DXF / 0.1MB
Who really enjoys cleaning? With the QuickClean function, dirt and limescale deposits from taps and showers are rapidly removed thanks to flexible silicon knobs on the spray disc.
QuickClean
