Variant

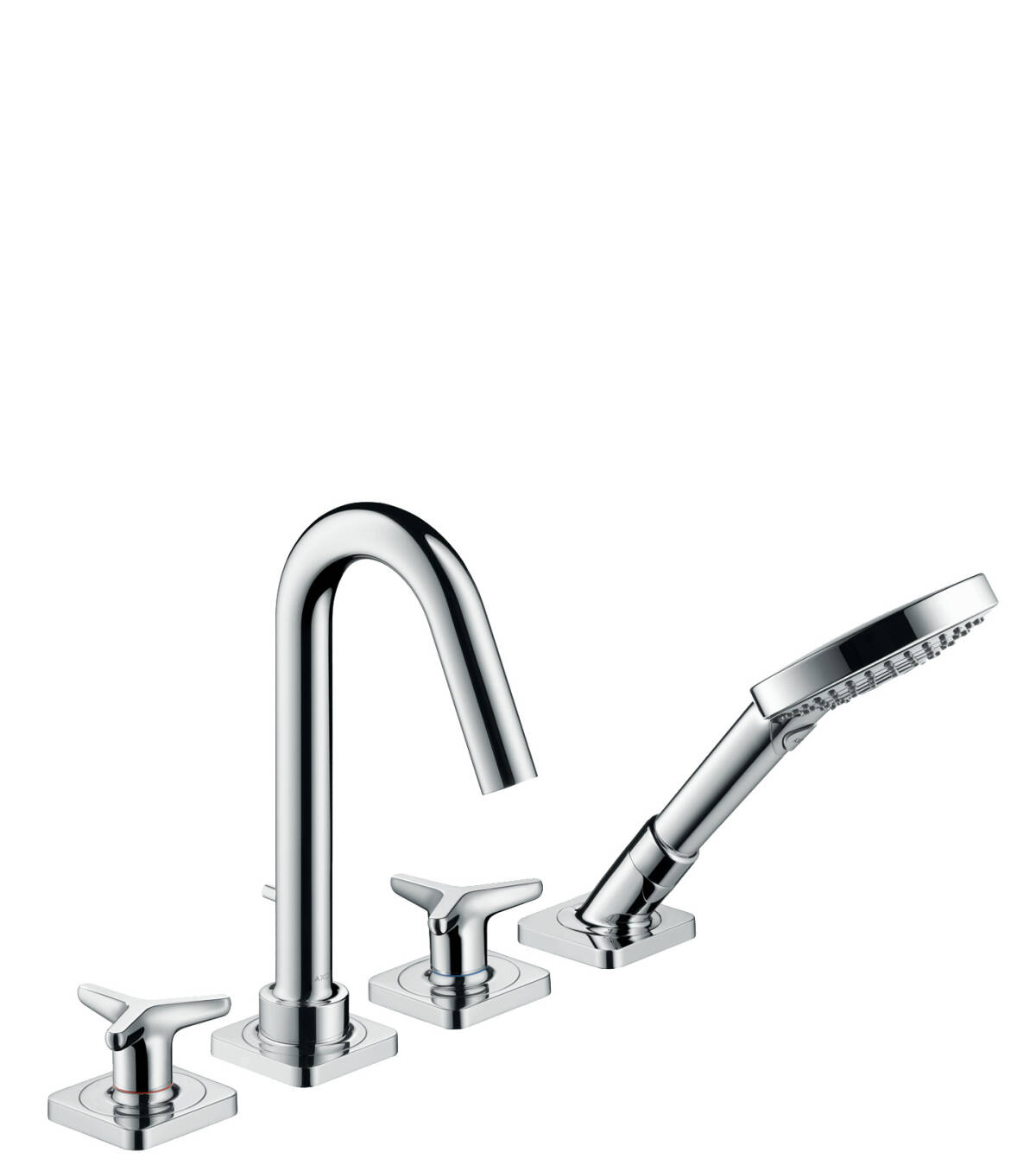

4-hole rim mounted bath mixer with star handles and escutcheons
Surface finish
Chrome
Art. no.: 34446000
| consists of | 4-hole rim mounted bath mixer, hand shower, shower hose, shower holder |
|---|---|
| projection | 135 mm |
| connection type | basic set |
| spray type mixer | normal spray |
| spray type hand shower | Rain, RainAir, WhirlAir |
| maximum pull-out length of hand shower | 1.10 m |
| cartridge | ceramic valves hot/ cold 180° |
| min. operating pressure | 1 bar |
| max. operating pressure | 10 bar |
| temperature limitation adjustable |
 |
| return function |
 |
| non-return valve |
|
| connection dimension | DN15 |
| Test mark |
P-IX 9087/ICB ACS 18 ACC LY 512, valide jusqu'au 24.08.2023 STA 1518 |
Consisting of
required accessory

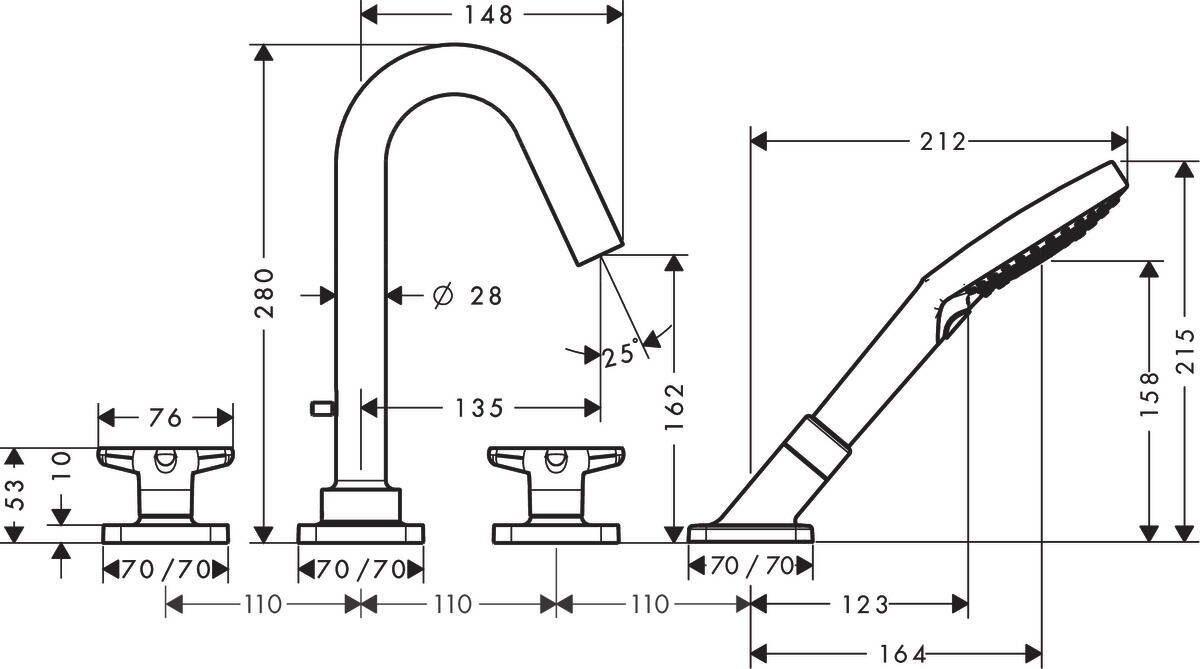

Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DXF / 3MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB

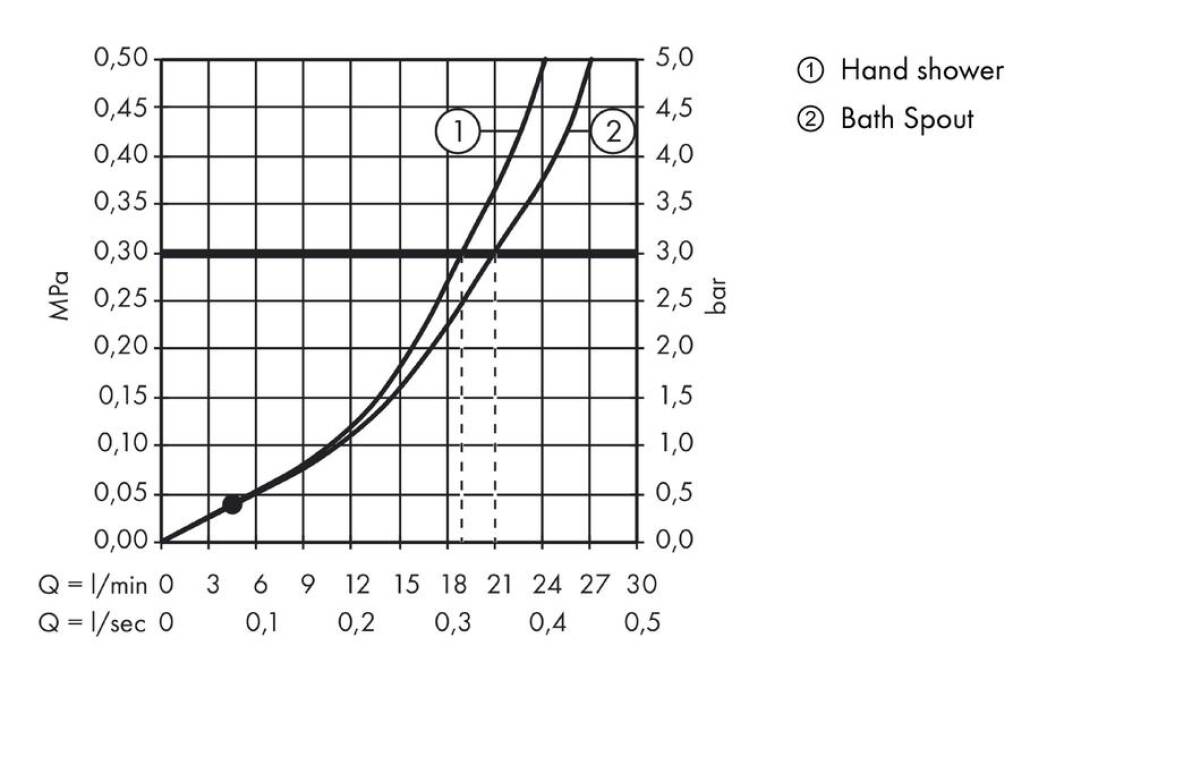

Flow chart
JPG / 0.1MB
Service instruction(Cleaning Recommendation)
Technical publication
PDF / 0.1MB
Assembly instruction(Finish Set)
Technical publication
PDF / 7MB
All planning data (ZIP)
ZIP
Planning data (3D)
DXF / 3MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB
With this shower technology, water is mixed with air - this enrichment makes the water droplets plumper, lighter and softer. And: water is used more efficiently.
AirPower
