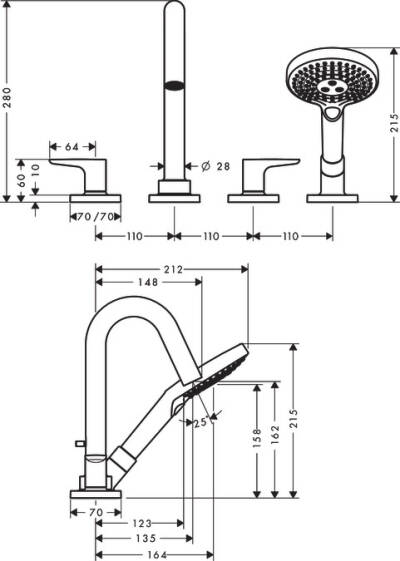

Scale drawing
JPG / 0.1MB
Menu
Your wish list is currently empty.
Add productsMenu
Your wish list is currently empty.
Add products
Variant

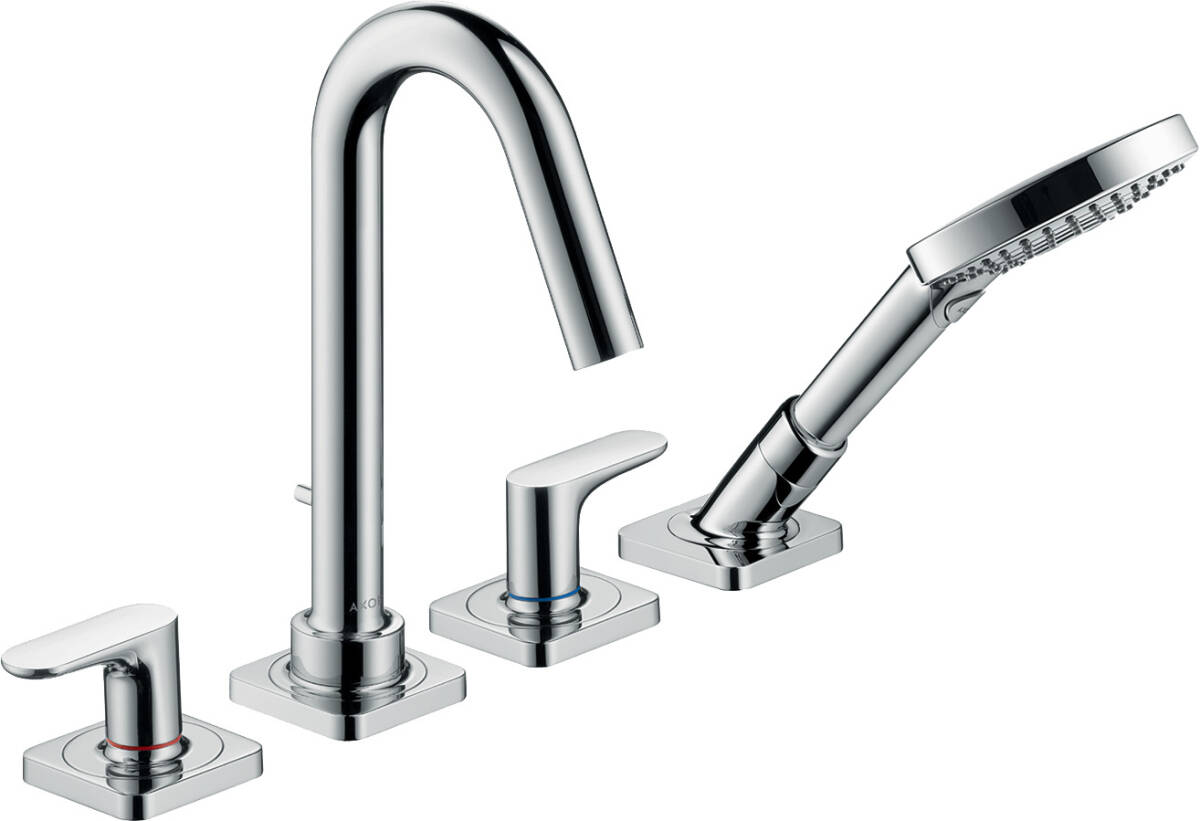

4-hole rim mounted bath mixer with lever handles and escutcheons
Surface finish
Chrome
Art. no.: 34444000
| consists of | 4-hole rim mounted bath mixer, hand shower, shower hose, shower holder |
|---|---|
| projection | 135 mm |
| connection type | basic set |
| spray type mixer | normal spray |
| spray type hand shower | Rain, RainAir, WhirlAir |
| maximum pull-out length of hand shower | 1.10 m |
| cartridge | ceramic valves hot/ cold 90° |
| min. operating pressure | 1 bar |
| max. operating pressure | 10 bar |
| temperature limitation adjustable |
 |
| return function |
 |
| non-return valve |
|
| connection dimension | DN15 |
| Test mark |
P-IX 9087/ICB JWWA C-279 ACS 18 ACC LY 512, valide jusqu'au 24.08.2023 STA 1518 |
Consisting of
required accessory

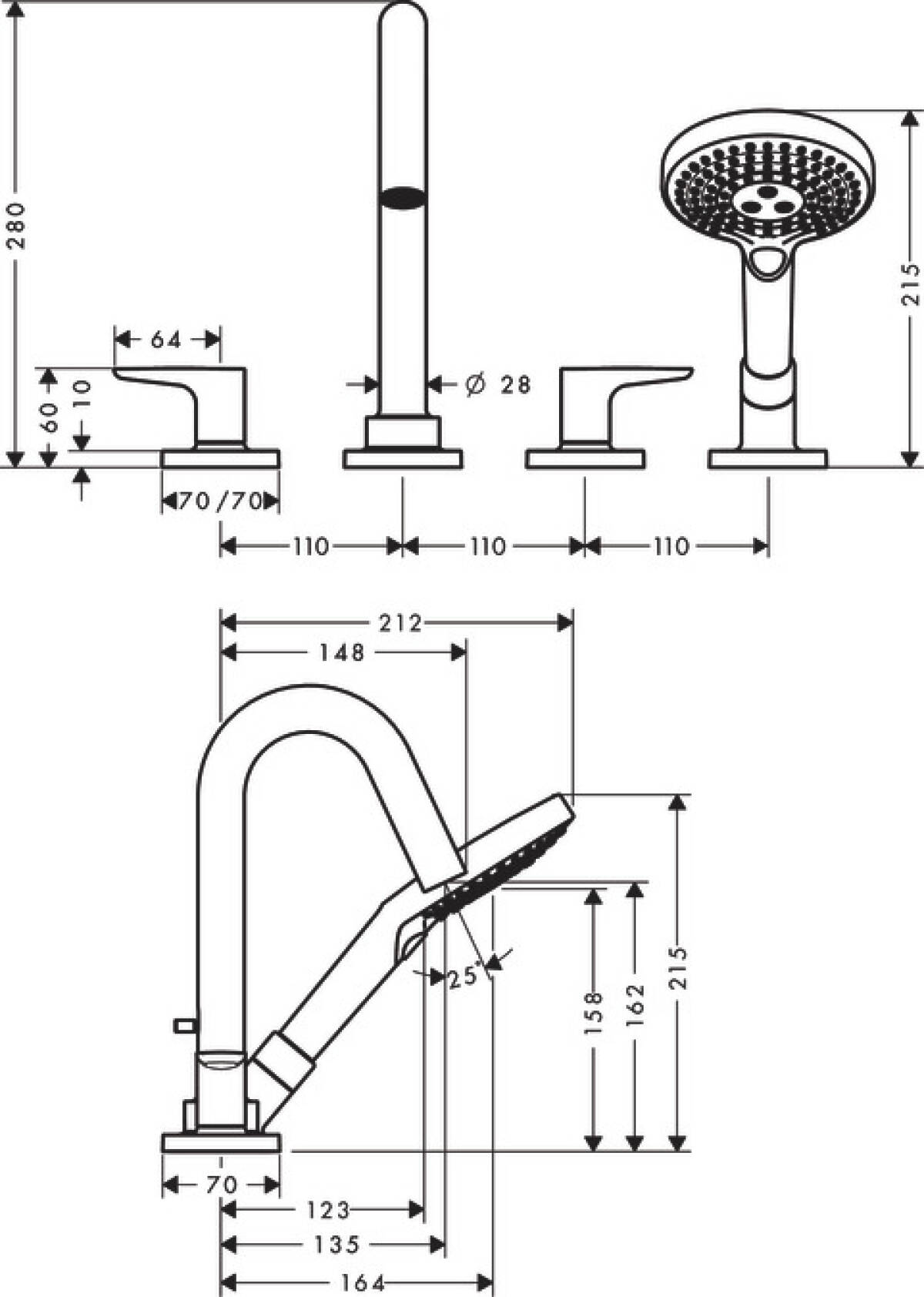

Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB
Planning data (3D)
DWG / 0.1MB
Planning data (3D)
DXF / 1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB

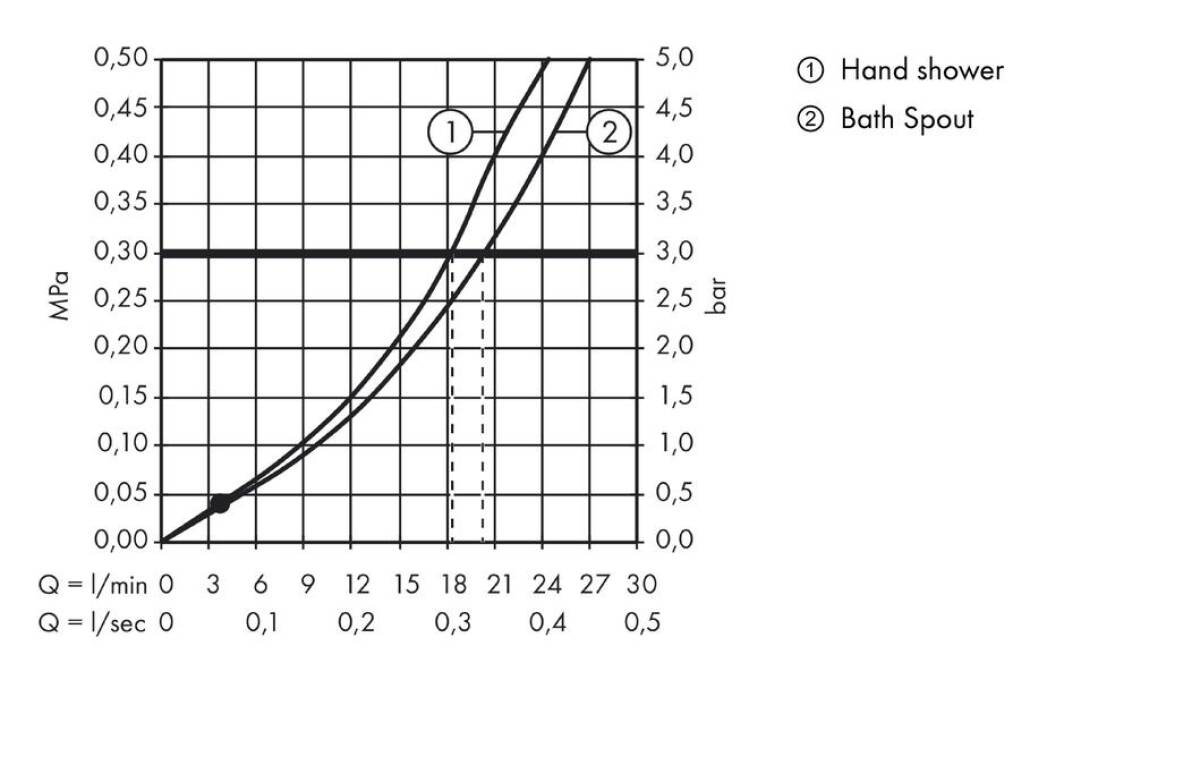

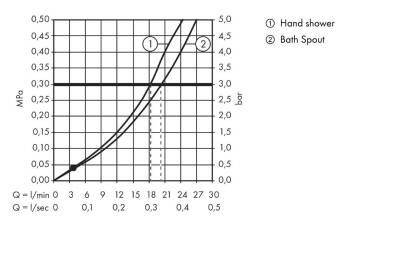

Flow chart
