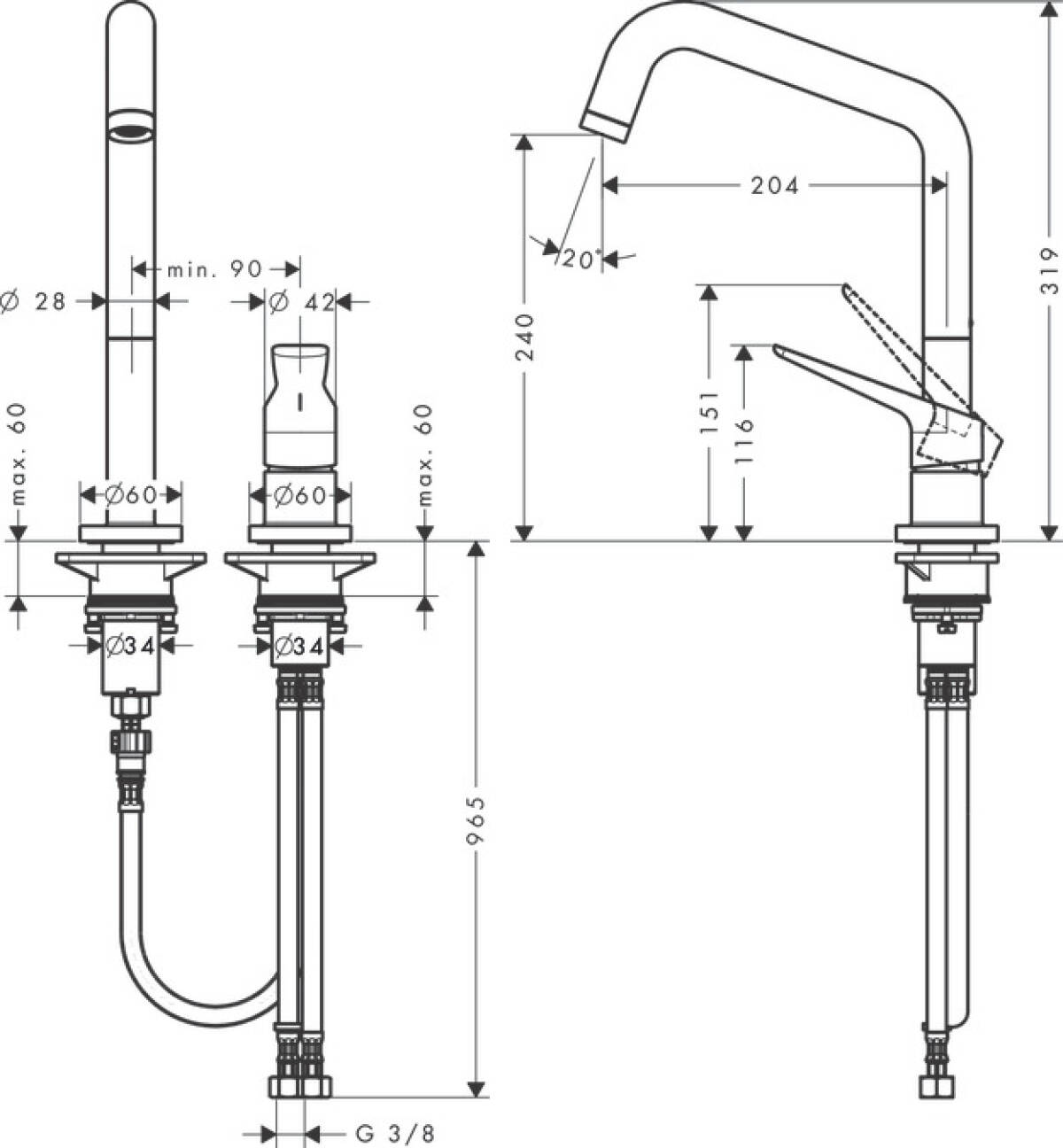

Scale drawing
JPG / 0.1MB
Menu
Your wish list is currently empty.
Add productsMenu
Your wish list is currently empty.
Add products
| for vented hot water cylinders (no pressure) |
 |
|---|---|
| ComfortZone | 240 |
| swivel range | adjustable in 3 steps 110°, 150° or 360° |
| spray type | normal spray |
| quick-connect hose |
 |
| device shut-off valve |
|
| connection dimension | DN15 |
| maximum flow rate at 3 bar | 13 l/min |
| cartridge | ceramic cartridge |
| connection type | G ⅜ connections |
| non-return valve |
|
| suitable for continous flow water heaters |
|
| Test mark |
SINTEF 1813 WRAS 1212024 P-IX 19701/IA ETA VA 1.42/20145 Kiwa K6161/15 Kiwa K6161_Mechanical Mixers EN817 ACS 14 ACC LY 008 ACS 14 ACC LY 008, valide jusqu'au 07.01.2019 KCW-2012-0427 WELS SGP 1 Tick SKT/BT-2014/014704 STA 1432 ACS 18 ACC LY 854, valide jusqu'au 07.01.2024 KCW-2018-0161/2012-0427 KCW-2012-0427_KM_WSW |
optional accessory

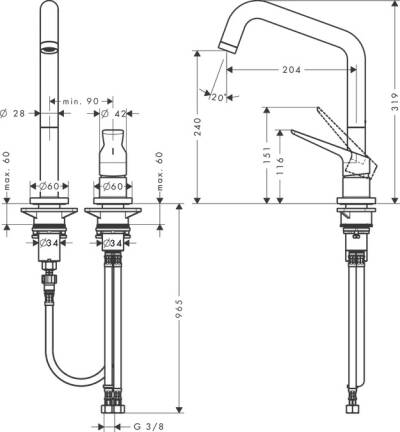

Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 2MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB
Planning data (2D)
DWG / 0.1MB
Planning data (3D)
DWG / 0.1MB

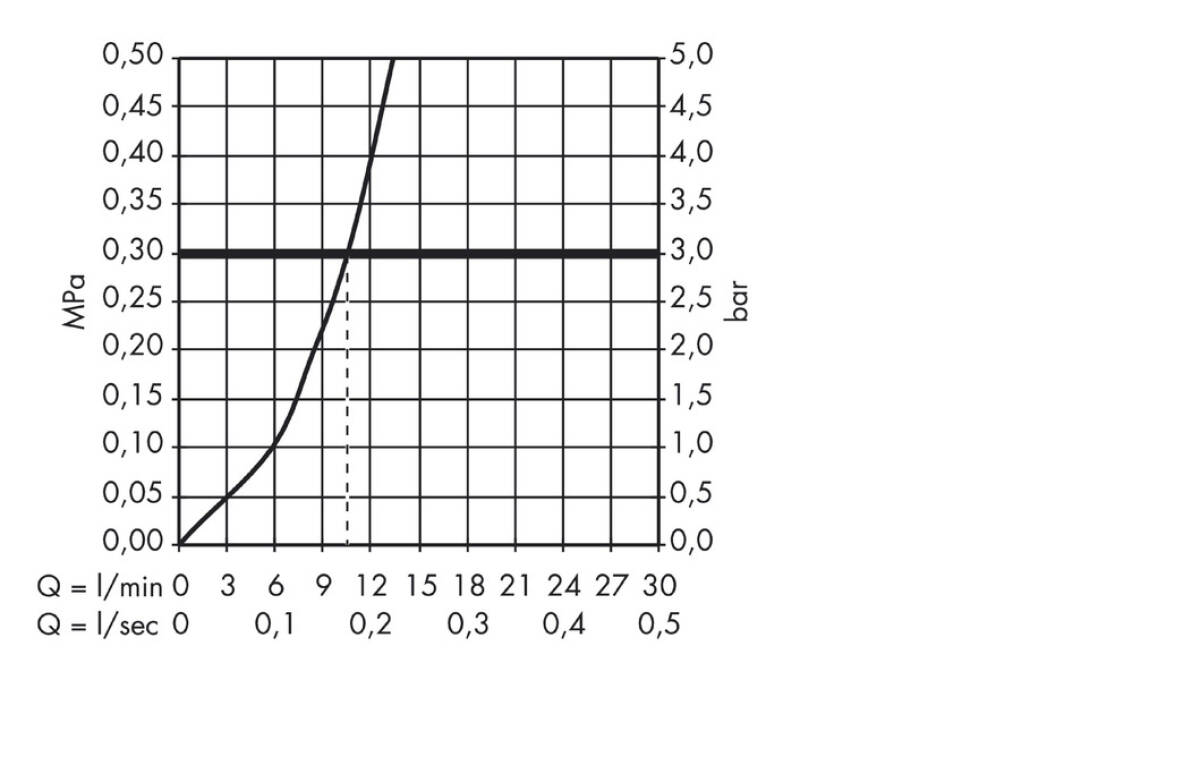

Flow chart
JPG / 0.1MB
Service instruction(Cleaning Recommendation)
Technical publication
PDF / 0.1MB
Assembly instruction(Mixer)
Technical publication
PDF / 6MB
BIM data (3DS)
3DS / 0.1MB
BIM data (AutoCAD 3D)
DWG / 0.1MB
BIM data (ArchiCAD)
GSM / 0.1MB
BIM data (IFC)
IFC / 0.1MB
BIM data (Revit)
RFA / 1MB
BIM data (Sketchup)
SKP / 0.1MB
BIM data (AutoCAD 2D)
DWG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 2MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB
Planning data (2D)
DWG / 0.1MB
Planning data (3D)
DWG / 0.1MB
With this shower technology, water is mixed with air - this enrichment makes the water droplets plumper, lighter and softer. And: water is used more efficiently.
Generous, intuitive and a big win on comfort: AXOR showers, taps and thermostats with this trademark extend your personal ComfortZone at the washbasin.
Who really enjoys cleaning? With the QuickClean function, dirt and limescale deposits from taps and showers are rapidly removed thanks to flexible silicon knobs on the spray disc.
