| for vented hot water cylinders (no pressure) |
 |
|---|---|
| ComfortZone | 220 |
| swivel range | adjustable in 2 steps to 110° or 150° |
| spray type | normal and spray jet |
| lockable shower spray | , spray returns through pressing spray diverter |
| magnetic pull-out shower support |
 |
| quick-connect hose |
|
| device shut-off valve |
|
| connection dimension | DN15 |
| maximum flow rate at 3 bar | 9.5 l/min |
| cartridge | ceramic cartridge |
| connection type | G ⅜ connections |
| non-return valve |
|
| suitable for continous flow water heaters |
|
| Test mark |
P-IX 19705/IO ETA VA 1.42/20146 SINTEF 1813 ACS 14 ACC LY 356 P-IX 19705/IOO ACS 14 ACC LY 356, valide jusqu'au 11.06.2019 KCW-2012-0427 JWWA C-462 STA 1432 KCW-2018-0161/2012-0427 KCW-2012-0427_KM_WSW ACS 19 ACC LY 482, valide jusqu'au 11.06.2024 Agréé Belgaqua |
optional accessory

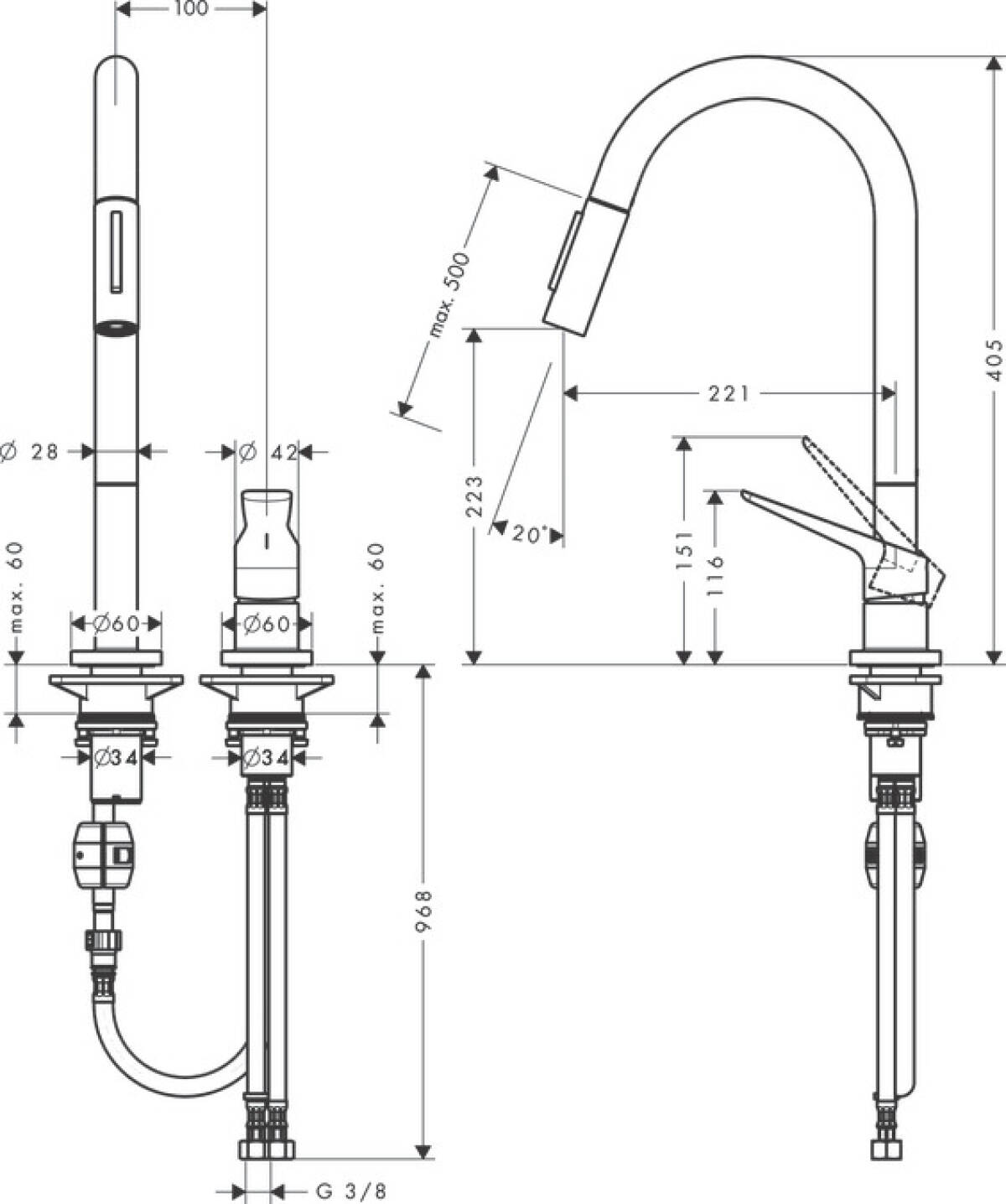

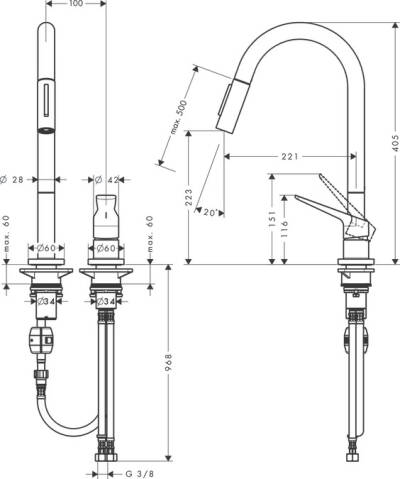

Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 2MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB

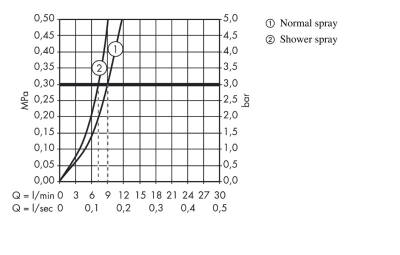

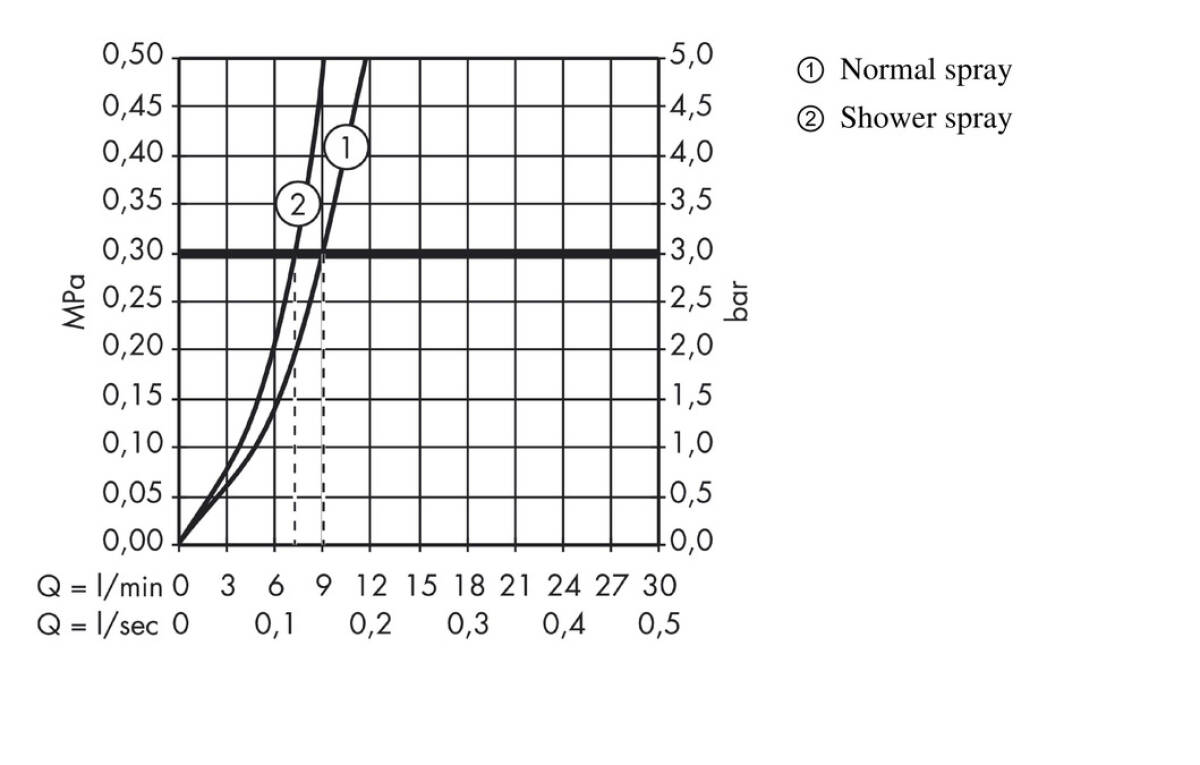

Flow chart
JPG / 0.1MB
Assembly instruction(Mixer)
Technical publication
PDF / 7MB
Service instruction(Cleaning Recommendation)
Technical publication
PDF / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 2MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB
Generous, intuitive and a big win on comfort: AXOR showers, taps and thermostats with this trademark extend your personal ComfortZone at the washbasin.
Who really enjoys cleaning? With the QuickClean function, dirt and limescale deposits from taps and showers are rapidly removed thanks to flexible silicon knobs on the spray disc.
ComfortZone
QuickClean
