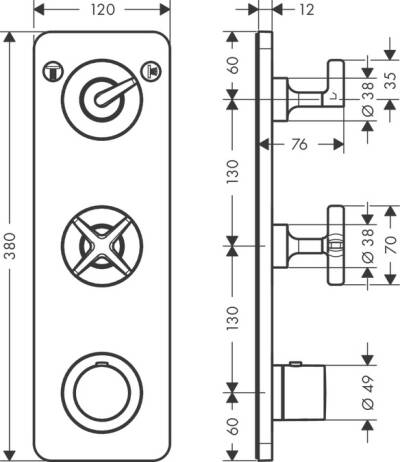

Scale drawing
JPG / 0.1MB
Menu
Your wish list is currently empty.
Add productsMenu
Your wish list is currently empty.
Add products

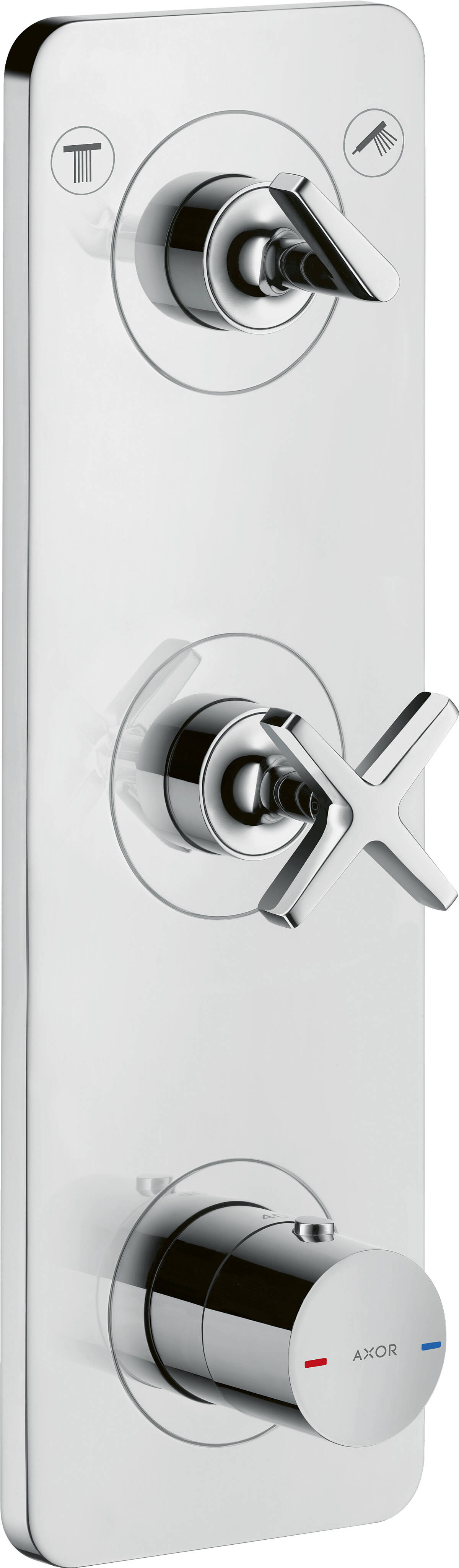

| amount of outlet | 2 functions |
|---|---|
| use of outlets | simultaneous utilization by 2 outlets |
| cartridge | thermostat cartridge |
| safety stop | safety lock at 40° C |
| temperature limitation adjustable |
 |
| additional comment | combination of highflow thermostat with shut-off valve and Duo diverter valve for controlling 2 consumers |
| connection type | basic set |
| connection dimension | DN20 |
| Test mark |
ACS 13 ACC LY 756, valide jusqu'au 05.11.2018 STA 1401 ACS 13 ACC LY 756, valide jusqu'au 09.12.2018 Reg 4 172001 JWWA E-565 WRAS 1805028 ACS 19 ACC LY 234, valide jusqu'au 05.11.2023 Agréé Belgaqua |

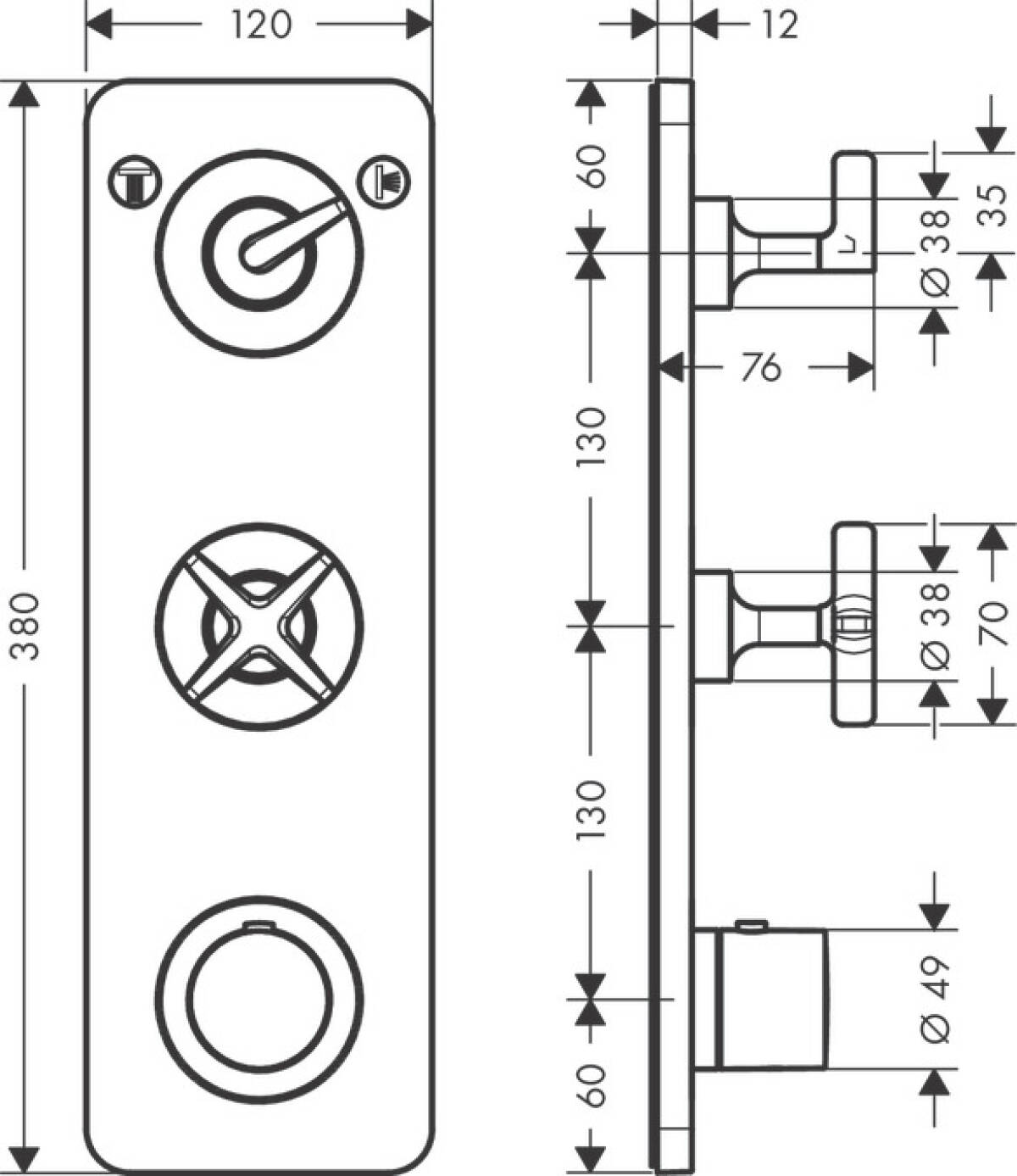

Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 3MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DWG / 4MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB

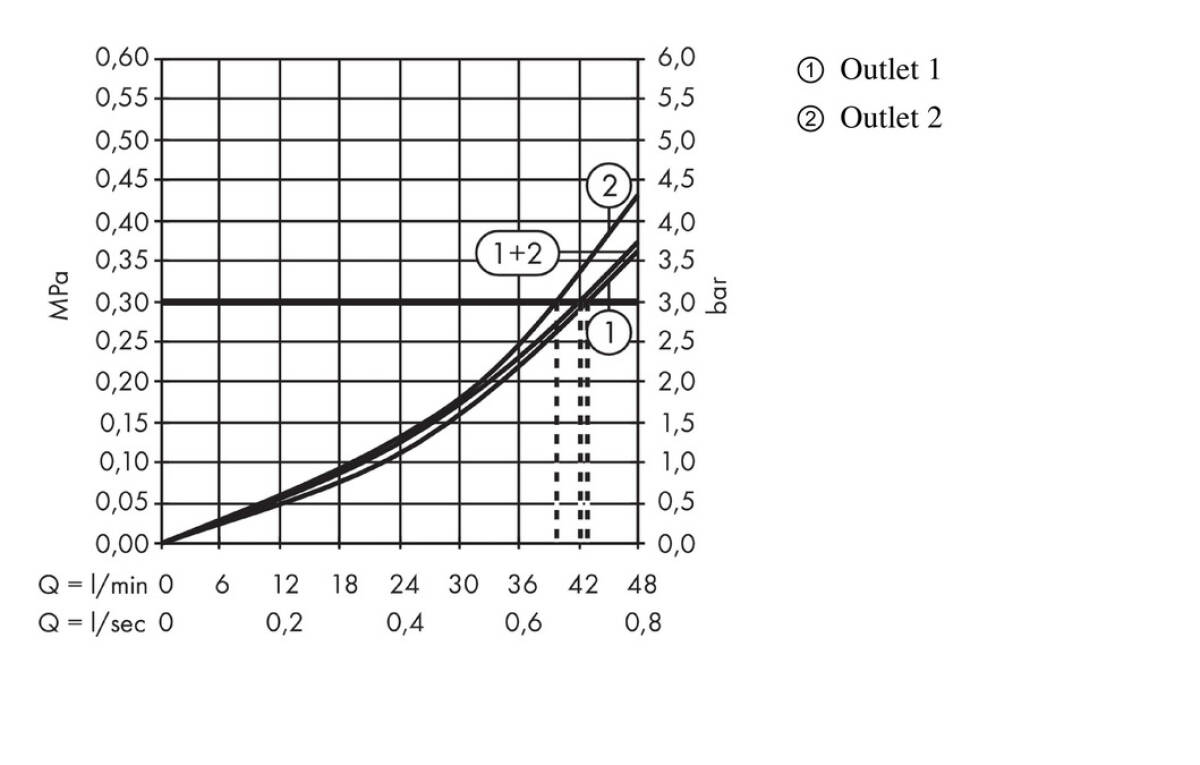

Flow chart
