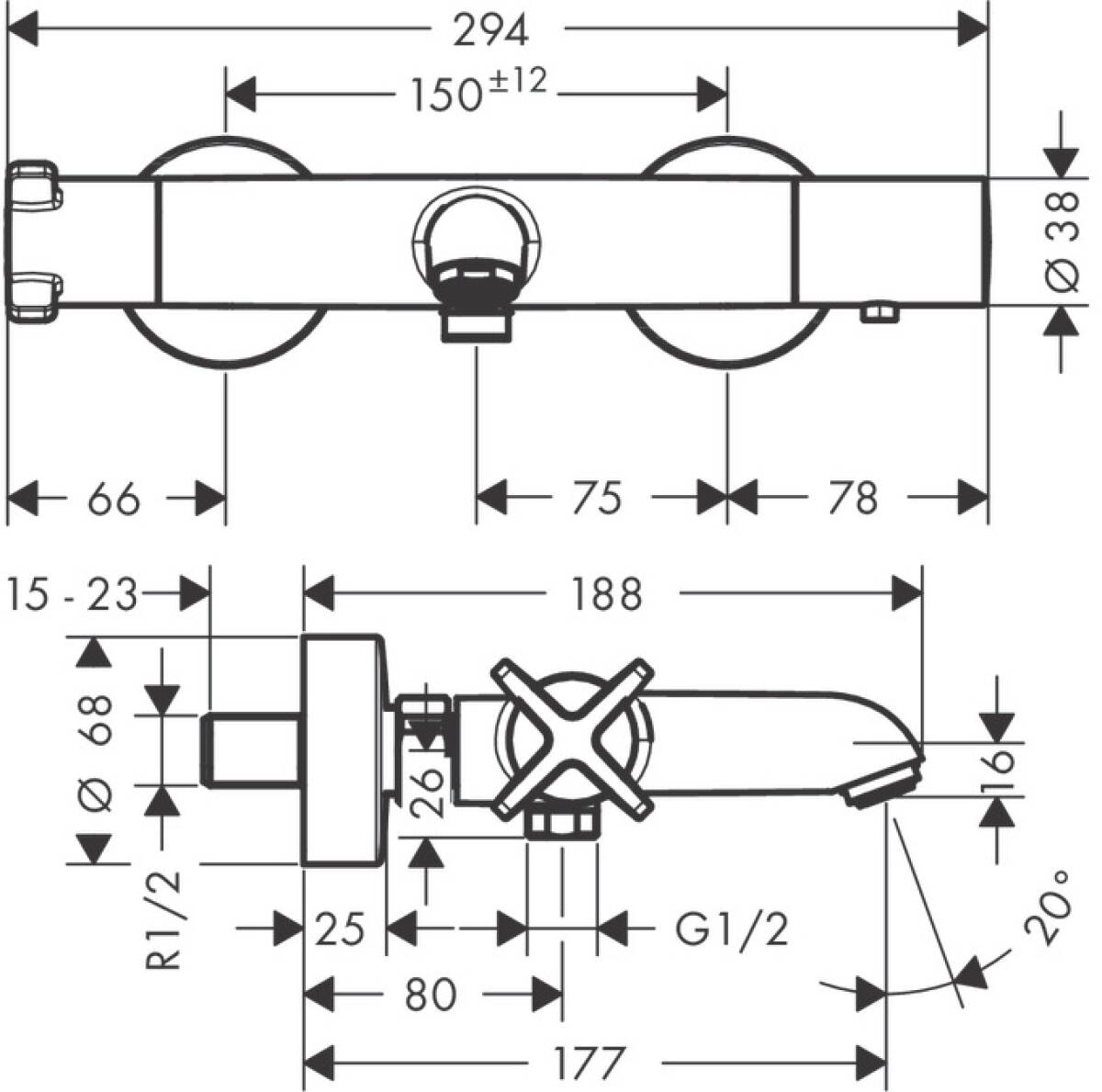

Scale drawing
JPG / 0.1MB
Menu
Your wish list is currently empty.
Add productsMenu
Your wish list is currently empty.
Add products
| projection | 177 mm |
|---|---|
| amount of outlet | 2 functions |
| use of outlets | will not run two outlets at same time |
| centre distance | 150 ± 16 mm |
| spray type mixer | normal spray |

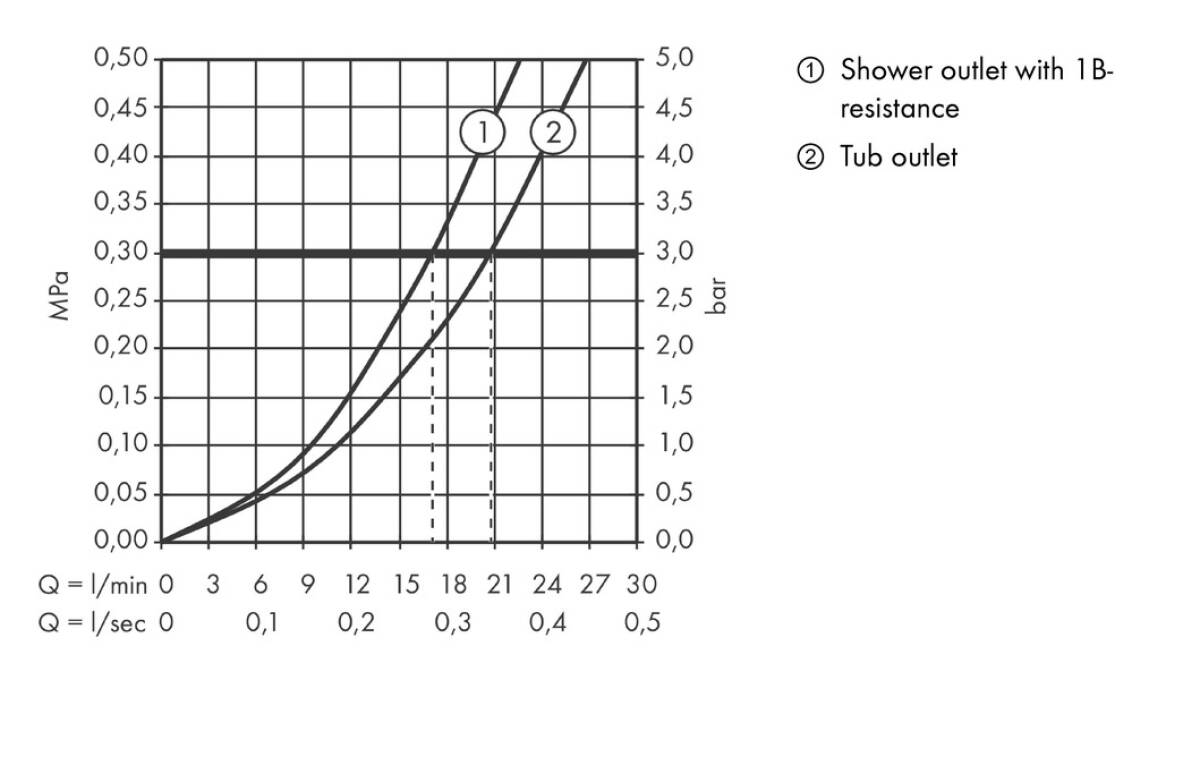

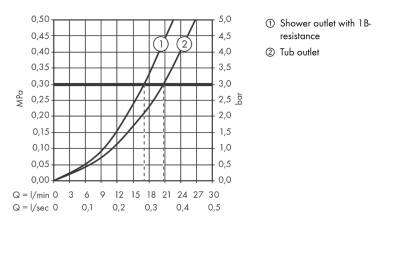

| flow rate | 20 l/min |
| cartridge | thermostat cartridge, shut-off/ diverter valve |
| min. operating pressure | 1 bar |
| max. operating pressure | 10 bar |
| safety stop | safety lock at 40° C |
| temperature limitation adjustable |
 |
| non-return valve |
|
| noise reduction |
|
| connection type | s-shaped connections |
| connection dimension | DN15 |
| Test mark |
WRAS 1507303 PA-IX 18987/ICB ACS 14 ACC NY 165, valide jusqu'au 05.06.2019 STA 1377 JWWA C-279 WELS SGP 1 Tick SHT-2015/017637 ACS 19 ACC NY 085, valide jusqu'au 15.05.2024 Agréé Belgaqua |
With this shower technology, water is mixed with air - this enrichment makes the water droplets plumper, lighter and softer. And: water is used more efficiently.
Who really enjoys cleaning? With the QuickClean function, dirt and limescale deposits from taps and showers are rapidly removed thanks to flexible silicon knobs on the spray disc.
AirPower
QuickClean
