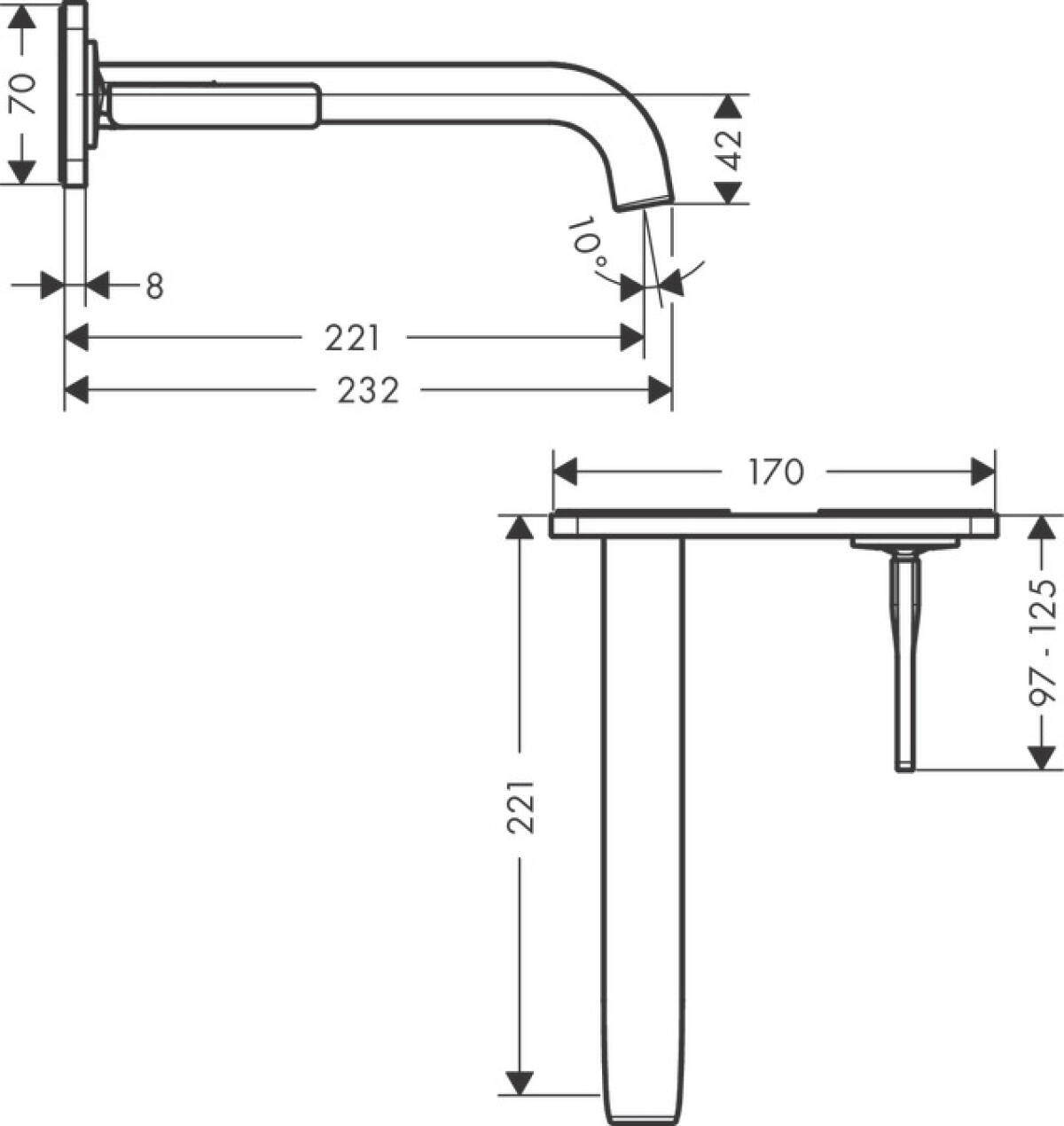

Scale drawing
JPG / 0.1MB
Menu
Your wish list is currently empty.
Add productsMenu
Your wish list is currently empty.
Add products
| consists of | Single lever basin mixer for concealed installation wall-mounted, waste set |
|---|---|
| projection | 221 mm |
| spray type | laminar spray |
| flow rate at 3 bar | 5 l/min |
| cartridge | joystick ceramic cartridge |
| temperature limitation adjustable |
 |
| suitable for continous flow water heaters |
 |
| waste set | non-closing waste set |
| variable handle position | handle can be positioned on the right or left, depends on the basic set installation |
optional accessory

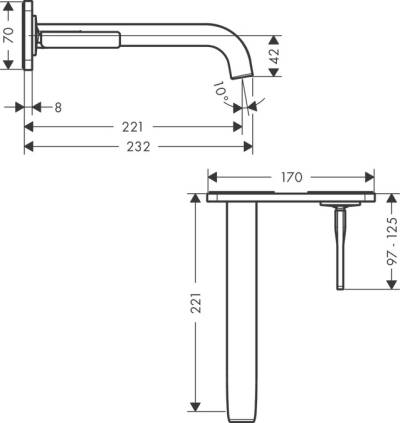

Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DWG / 2MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 8MB

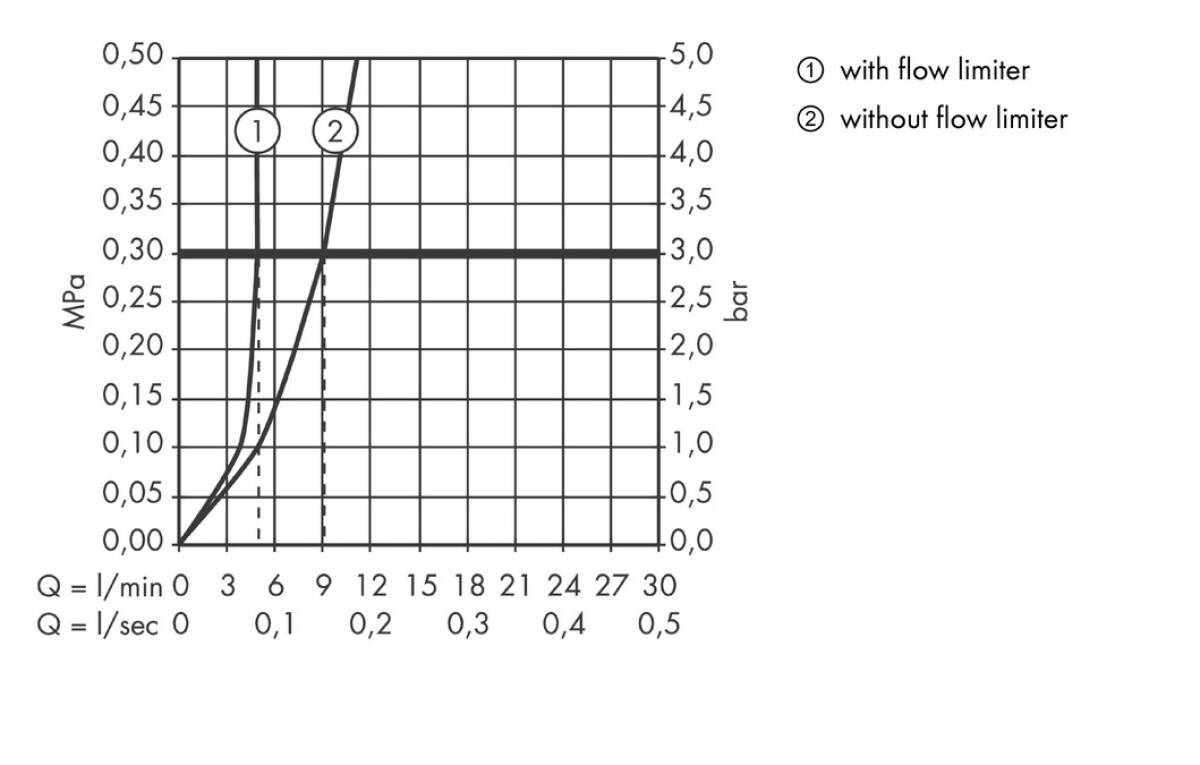

Flow chart
JPG / 0.1MB
Assembly instruction(Finish Set)
Technical publication
PDF / 3MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DWG / 2MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 8MB
AXOR taps and showers with the EcoSmart technology use up to 60% less water than conventional products – without any loss of comfort. This means water and energy costs are reduced and valuable resources conserved.
EcoSmart
