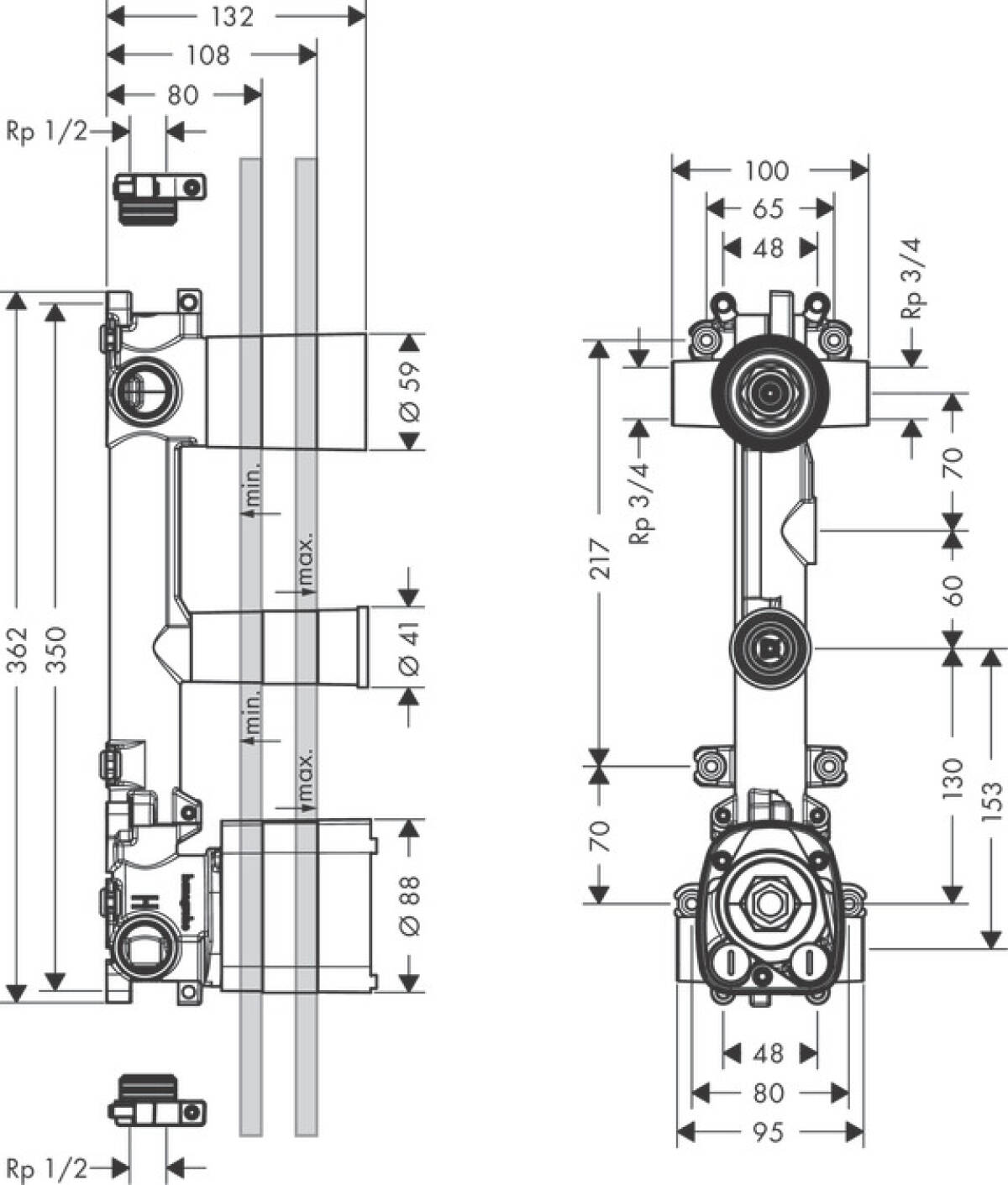

Scale drawing
JPG / 0.1MB
Menu
Your wish list is currently empty.
Add productsMenu
Your wish list is currently empty.
Add products
Variant

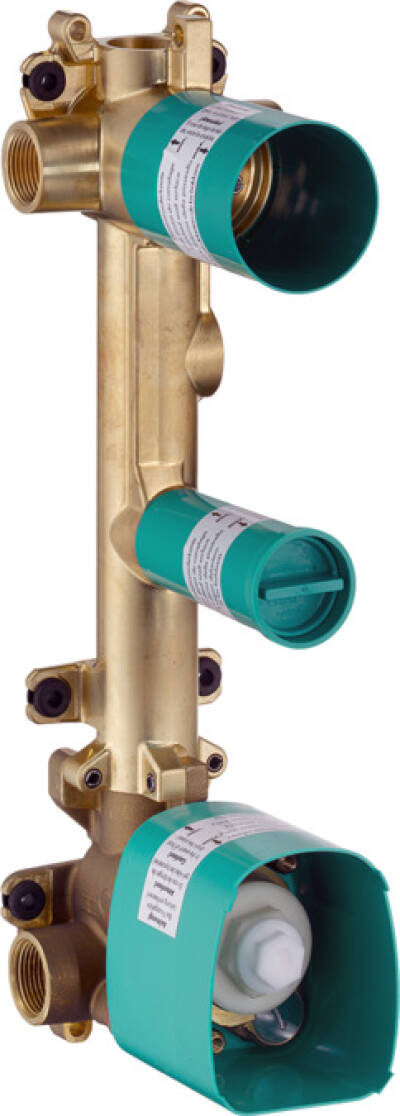

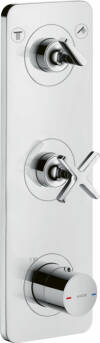

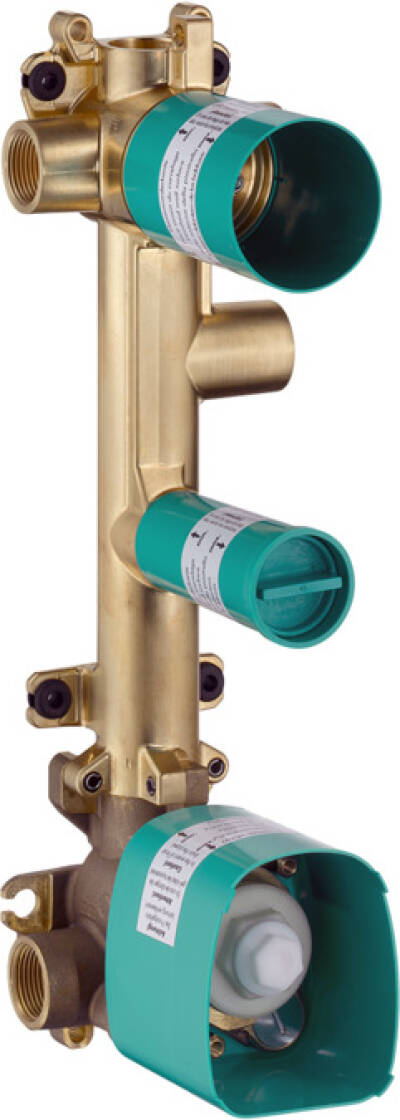

Basic set for thermostatic module 380/120 for concealed installation for 2 functions
Surface finish
n.a.
Art. no.: 36701180
Surface finish
| amount of outlet | 2 functions |
|---|---|
| parallel use of users | 2 outlets can be used simultaneously |
| flow rate at free through-flow | 59 l/min |
| installation orientation | horizontal or vertical installation |
| sound proof installation |
 |
| installation | in a joined installation it serves as a waterconducting unit and allows dimensionally accurate positioning |
| connection dimension | DN20 |
| Test mark |
ACS 16 ACC NY 394, valide jusqu'au 05.12.2021 STA 1401 Reg 4 172001 JWWA E-565 WRAS 1805028 |
