| consists of | 2-handle bath mixer, hand shower, shower holder, shower hose |
|---|---|
| projection | 222 mm |
| connection type | basic set |
| spray type mixer | normal spray |
| spray type hand shower | Rain, RainAir, WhirlAir |
| cartridge | ceramic valves hot/ cold 180° |
| min. operating pressure | 1 bar |
| max. operating pressure | 10 bar |
| temperature limitation adjustable |
 |
| return function |
 |
| non-return valve |
|
| connection dimension | DN15 |
| Test mark |
Reg 4 170649 ACS 19 ACC LY 431, valide jusqu'au 14.08.2024 |
Consisting of
required accessory
optional accessory

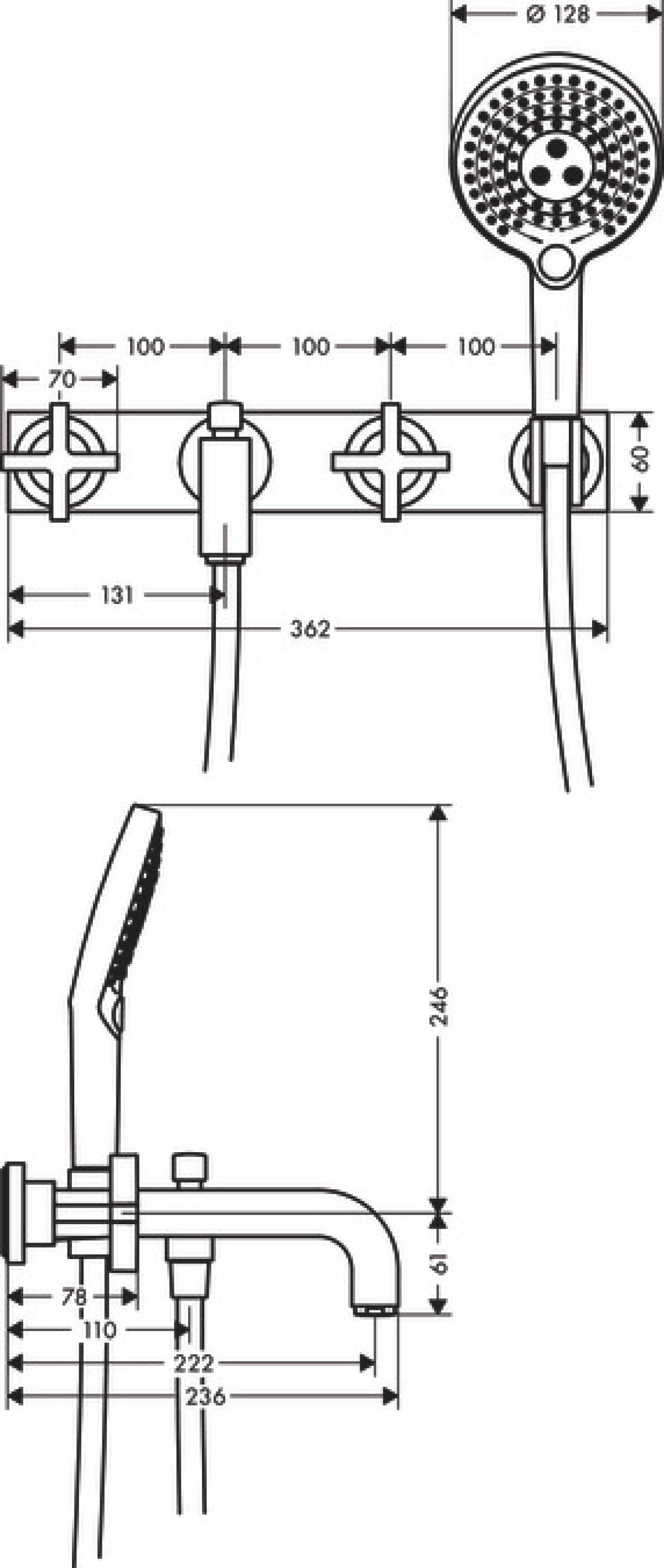

Scale drawing
JPG / 0.1MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 0.1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB

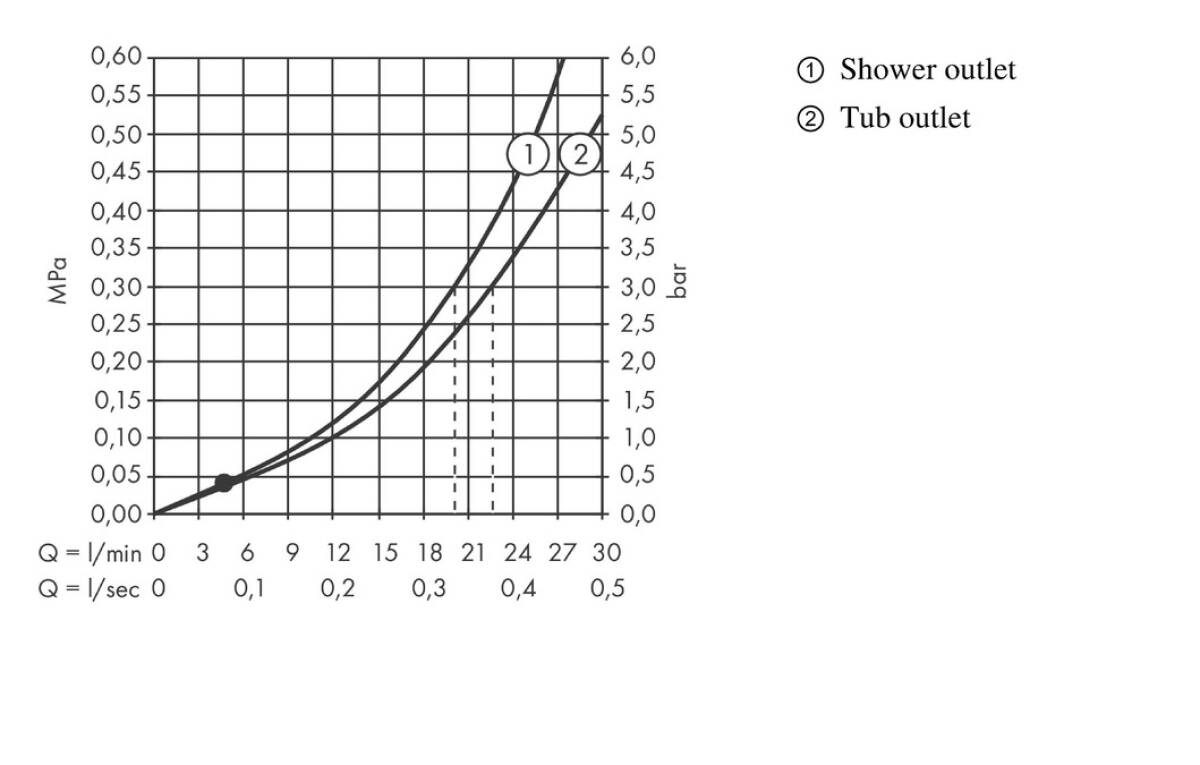

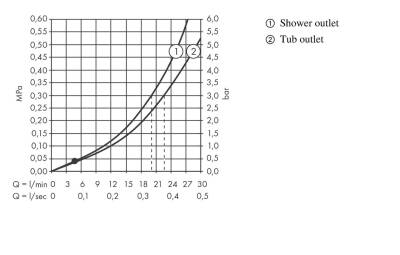

Flow chart
JPG / 0.1MB
Assembly instruction(Basic Set)
Technical publication
PDF / 4MB
Assembly instruction(Finish Set)
Technical publication
PDF / 24MB
All planning data (ZIP)
ZIP
Planning data (3D)
DWG / 0.1MB
Planning data (2D front view)
DWG / 0.1MB
Planning data (2D side view)
DWG / 0.1MB
Planning data (2D top view)
DWG / 0.1MB
Planning data (3D)
DXF / 0.1MB
Planning data (2D front view)
DXF / 0.1MB
Planning data (2D side view)
DXF / 0.1MB
Planning data (2D top view)
DXF / 0.1MB
With this shower technology, water is mixed with air - this enrichment makes the water droplets plumper, lighter and softer. And: water is used more efficiently.
Who really enjoys cleaning? With the QuickClean function, dirt and limescale deposits from taps and showers are rapidly removed thanks to flexible silicon knobs on the spray disc.
AirPower
QuickClean
