AXOR Edge

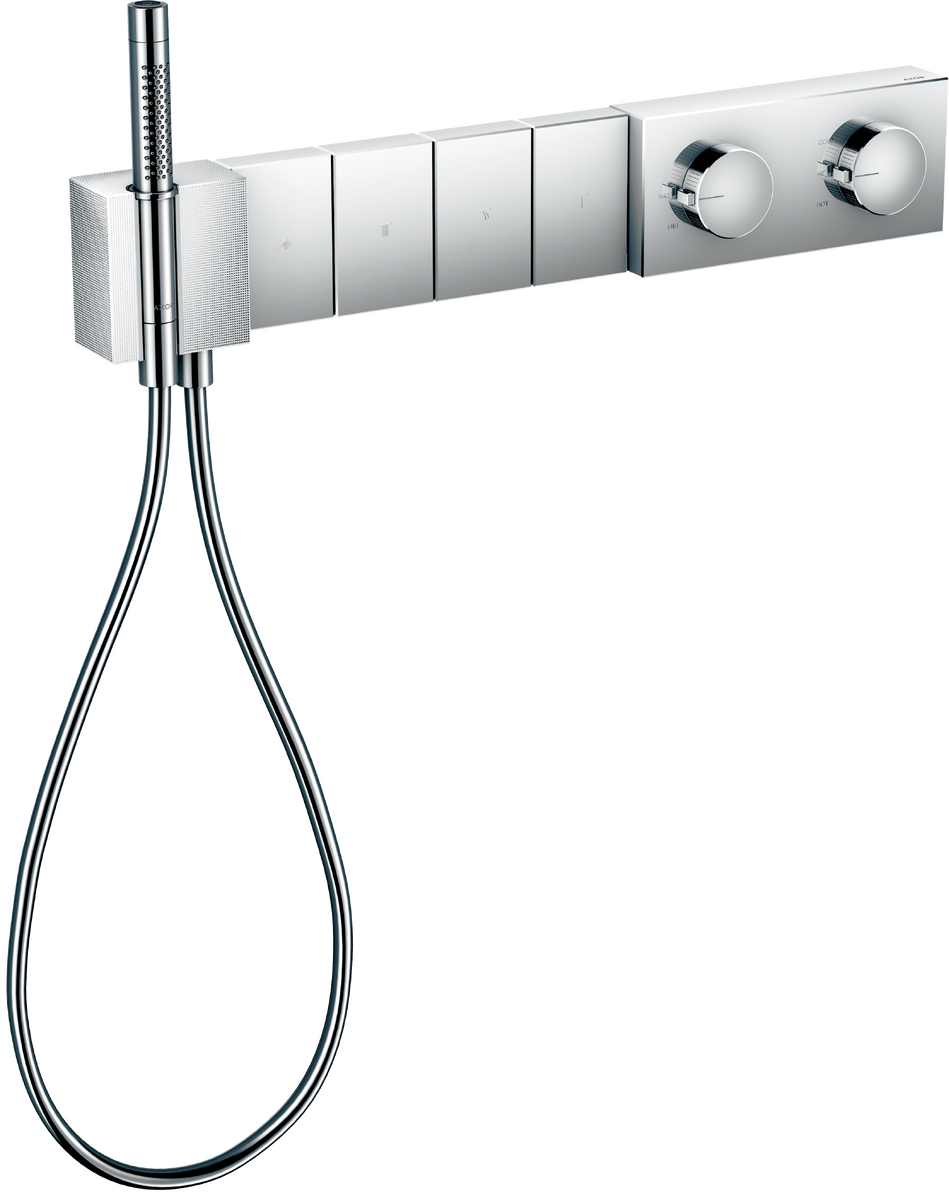

Thermostatic module Select 610/100 for concealed installation for 4 functions - diamond cut

FinishChrome

Art. no. 46721000

Preview at home 360° view

Product data sheet (PDF)

Find an authorised dealer

Special product features

Innovative technologies

Thermostat

Always constant water temperature

Reliable: The thermostat with integrated temperature control continuously monitors the water temperature during use. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

Water flow control

For mindful use of water

The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.

Select

Intuitive jet adjustment

The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.

Auszeichnungen

Design Awards

Auszeichnungen

German Design Award Winner 2019

A quality seal awarded by the German Design Council since 2011, for design products featuring trendsetting quality.

Trust in highest quality

5 years warranty

Article Details

consists of: thermostatic module, shower holder, baton hand shower, shower hose
4 functions
simultaneous use of several outlets
Select push-button on/off control for 4 functions
depending on volume flow and installation situation approx. 50% flow rate reduction and integrated shut off function
thermostat cartridge, Start/stop valve to operate the functions
maximum flow rate of hand shower at 3 bar: 13 l/min
maximum flow rate at 1 bar: 21 l/min
maximum flow rate at 3 bar: 39 l/min
min. operating pressure: 1 bar
max. operating pressure: 10 bar
Safety stop at 40 °C
temperature limitation adjustable
for shower hoses with a cylindrical nut
connection type: basic set
thermostat is delivered with buttons hand shower, Waterfall, Rain large, MonoRain

Downloads

Product data sheet (PDF)

Required equipment

Basic set for thermostatic module Select for 4 functions

Scope of delivery

thermostatic module
function block
mounting material
assembly instruction

Installation Information

Find a plumber Assembly instruction (Finish Set) PDF, 78 MB

AXOR Edge Thermostatic module Select 610/100 for concealed installation for 4 functions - diamond cut
