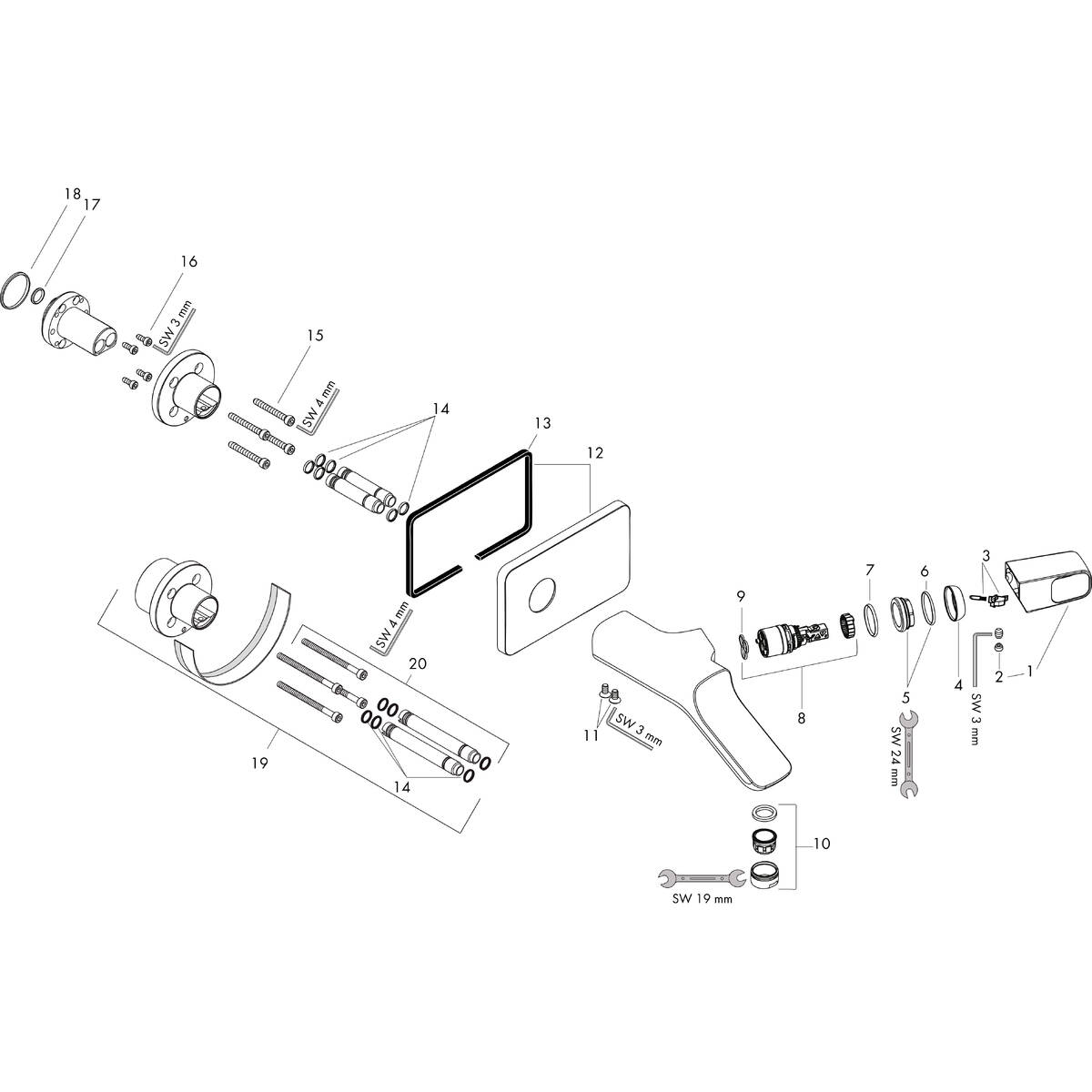

Single lever basin mixer for concealed installation wall-mounted with spout 200 mm
Art. no. 11026000
| Item no. | DescriptionArticle no. |
|---|
| b | sealing foil96660000 |
| a | concealed item10902180 |
| c | aerator M24x1 (3,5 l/min)92508000 |
| d | aerator M24x1 (4,5 l/min)92877000 |
| e | aerator swivelling M24x1 (5 l/min)95928000 |
| 1 | handle11093000 |
| 2 | screw cover96338000 |
| 3 | spring with sleeve92462000 |
| 4 | flange98863000 |
| 5 | nut95178000 |
| 6 | O-Ring 22x298185000 |
| 7 | O-ring 25x298389000 |
| 8 | cartridge, assy97685000 |
| 9 | seal98865000 |
| 10 | aerator M24x1 (5 l/min)13185000 |
| 11 | screw95486000 |
| 12 | escutcheon95485000 |
| 13 | seal97737000 |
| 14 | O-ring 9x1,598117000 |
| 15 | hexagon socket screw M5x4097673000 |
| 16 | hexagon socket screw M4x1097661000 |
| 17 | O-ring 11x298127000 |
| 18 | O-Ring 30x298186000 |
| 19 | extension set 28 mm11980000 |
| 20 | extension set 28 mm95857000 |
